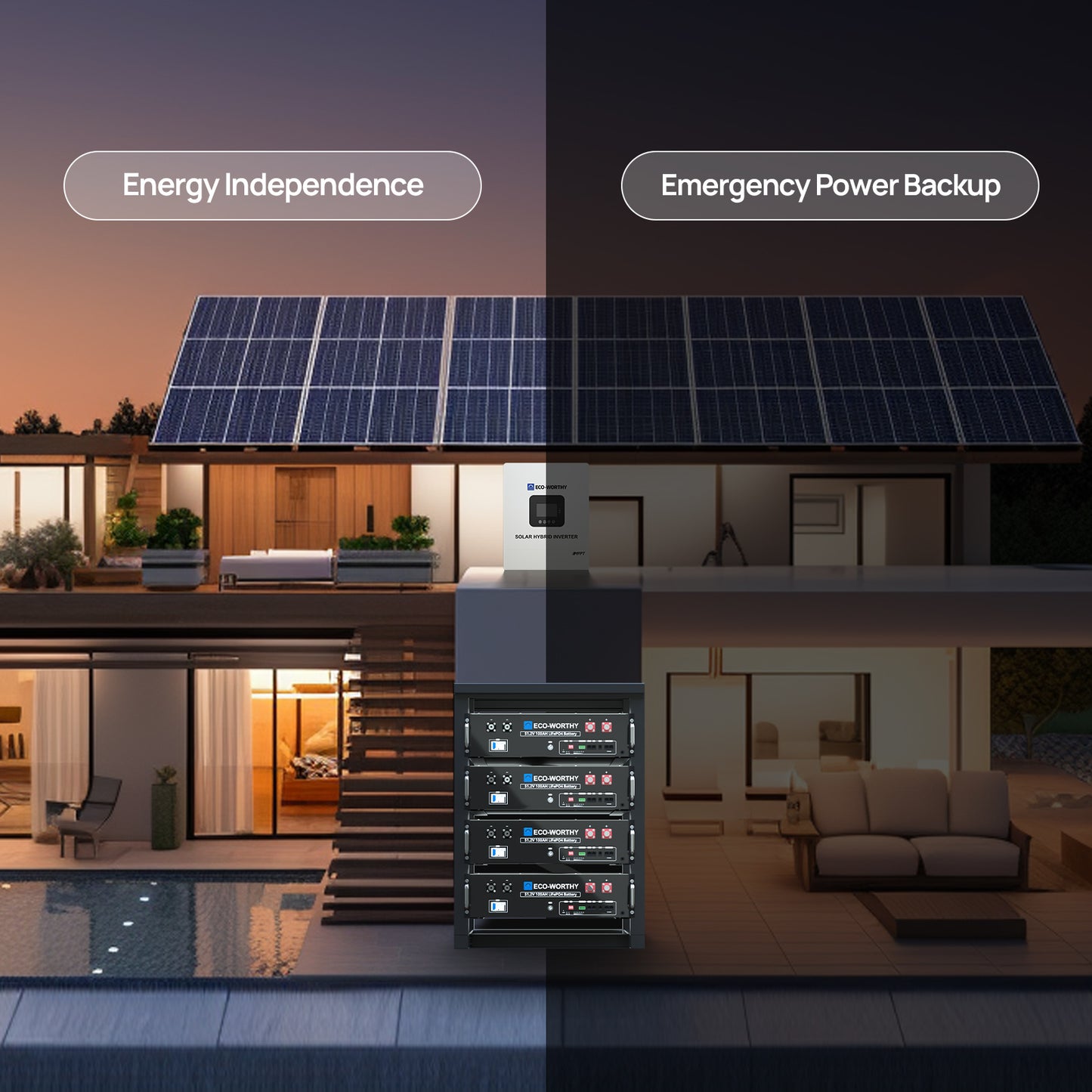

The Best Home Energy Storage Solution

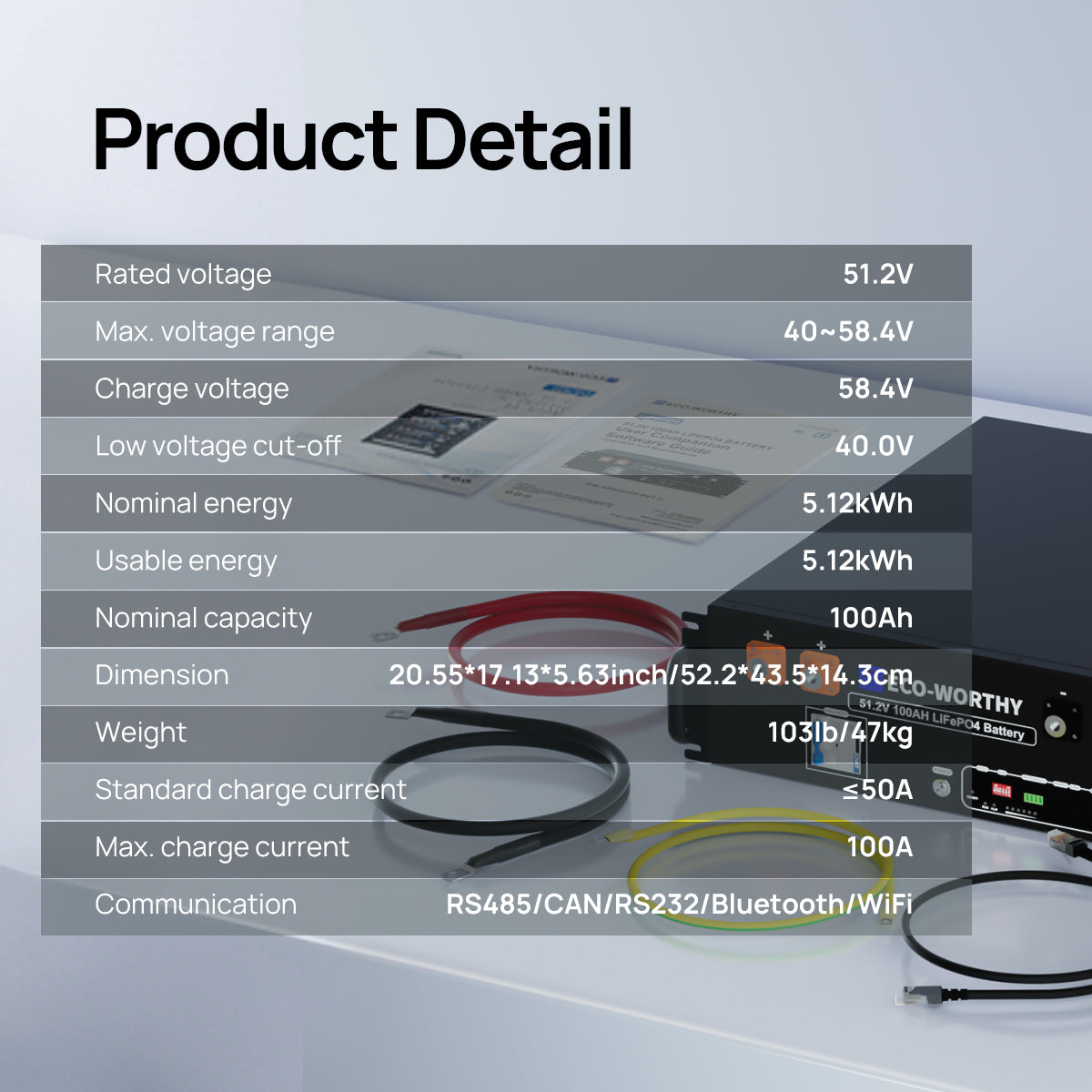

Technical Specifications
Battery Capacity
100Ah
Battery Power
5120Wh
Rated Voltage
40~58V
Maximum Charge/Discharge Current
100A
Charge Temperature Range
0-55°C
Discharge Temperature Range
-20-55°C
Voltage Range
40~58V
Maximum Charge Voltage
58.4V
Screw size
M8

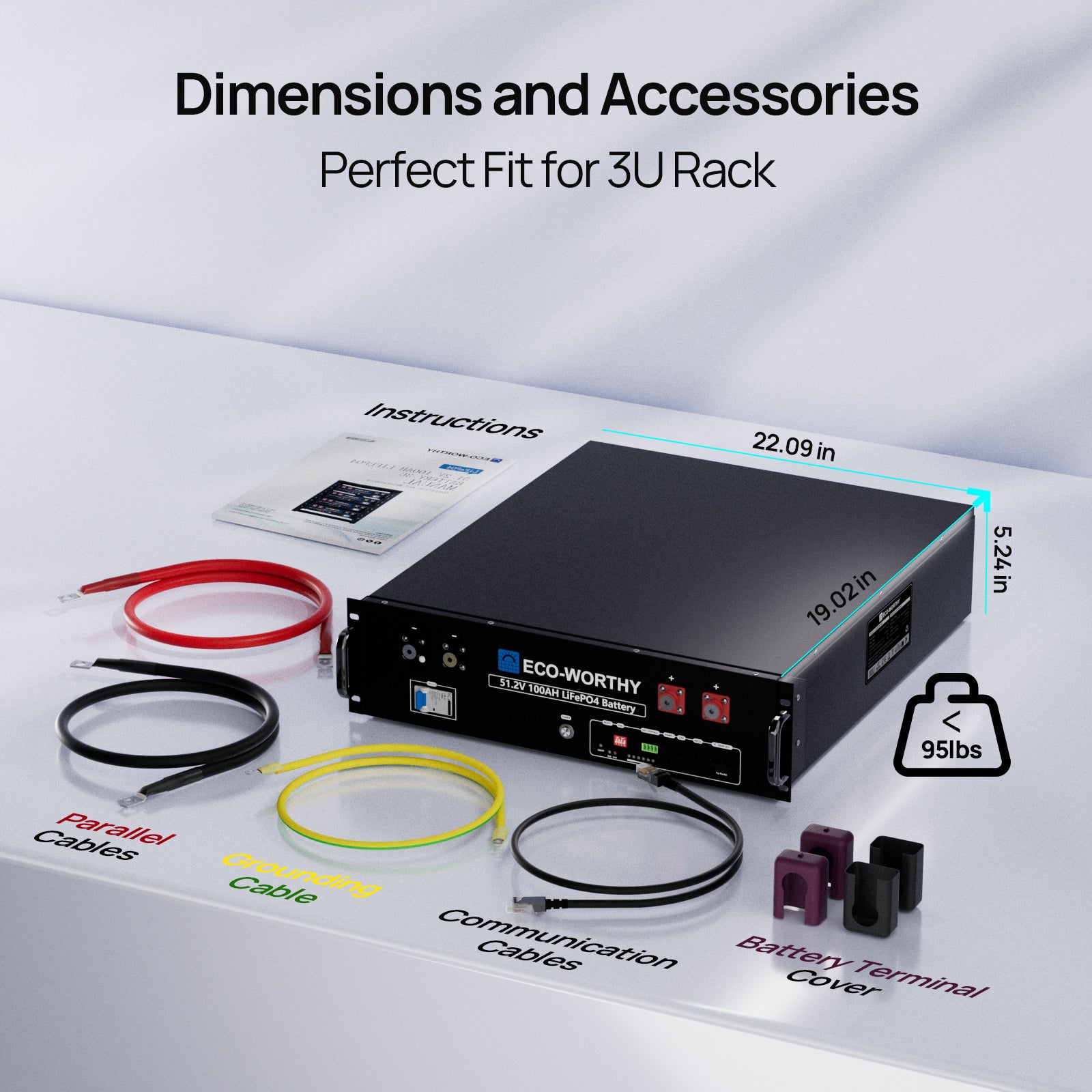

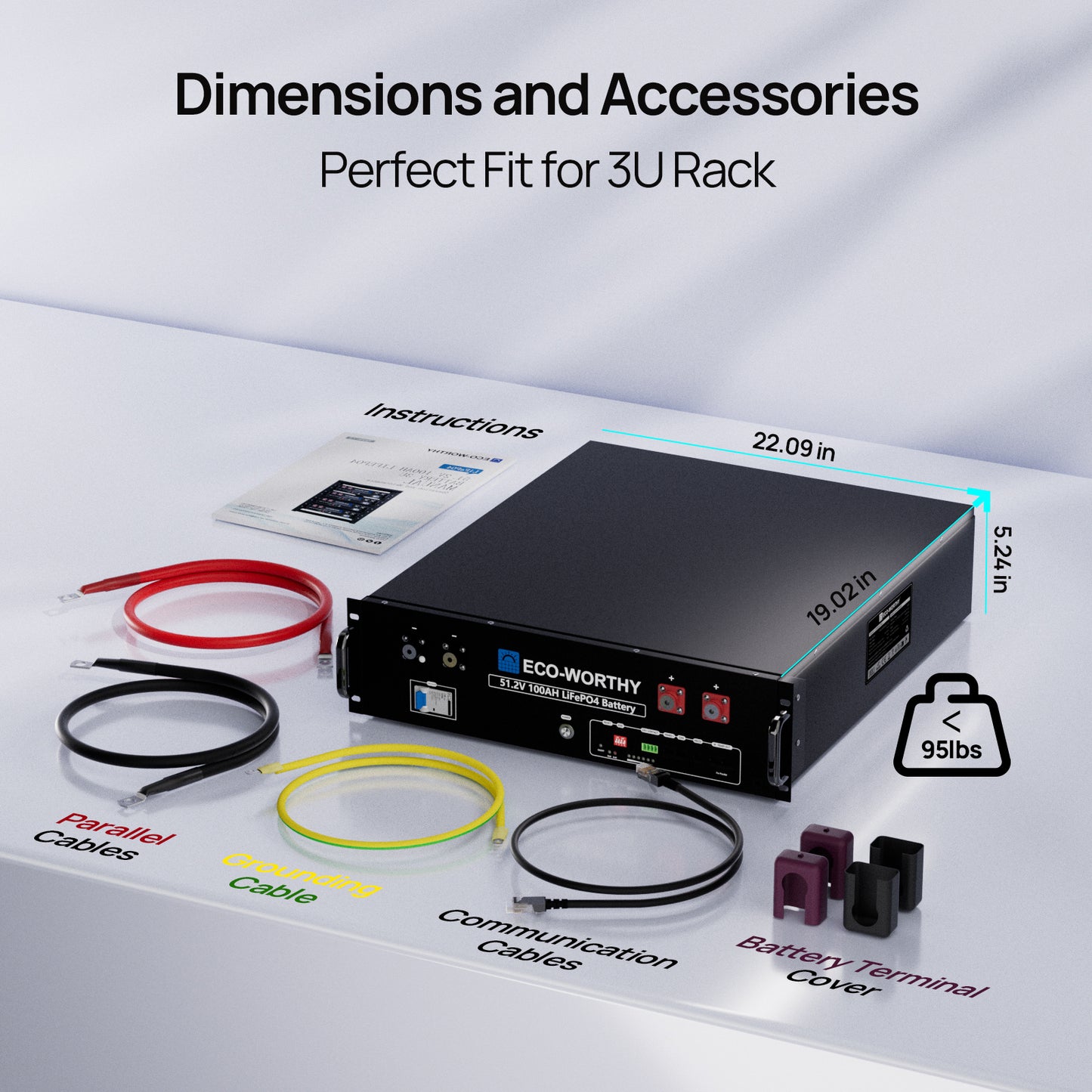

Battery Size
22.09*19.02*5.63inch
Battery Weight
103 lbs
Certification
UL9540 | UL1973 | UL9540A | CEC LISTED
Warranty
10 Year Warranty
Package Gross Weight
47 kg ±1kg

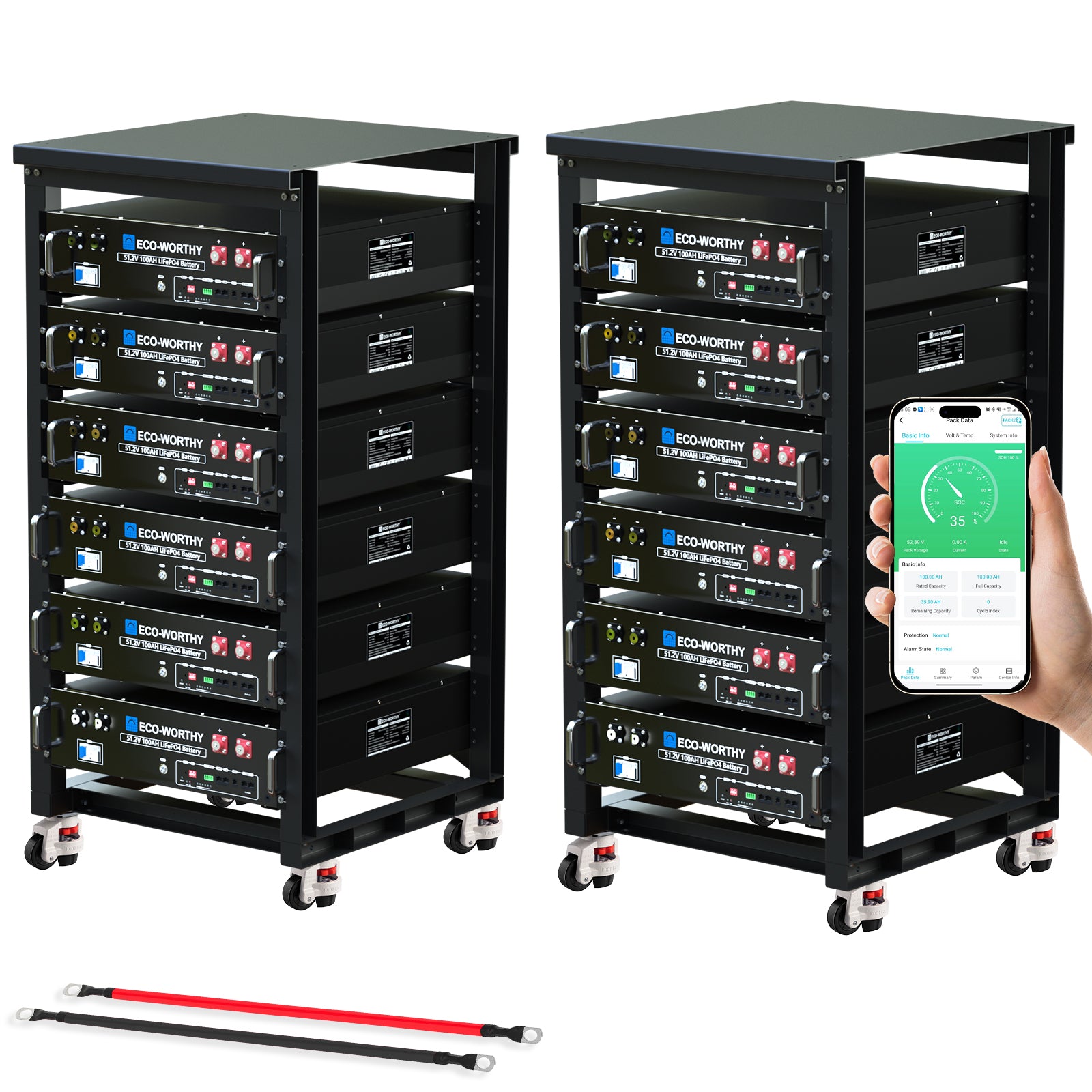

Product Dimensions
47.32 in × 23.07 in × 21.93 in
Effective Space per Layer
20.87 in × 17.44 in × 6.50 in
Busbar Dimensions
W 40 mm × H 4 mm
Busbar Current Rating
600 A
Busbar Material
T2 Copper
Battery Capacity
Up to 6 batteries
Material
Metal
Included in the Box
User manual
Eco-Worthy 48V 100Ah Server Rack Battery Manual online-26.03.17
DownloadATM for ECO-WORTHY UL9540 DC ESS
DownloadATM for ECO-WORTHY UL9540 AC ESS
DownloadEco-Worthy 48V 100Ah Server Rack Battery Software Manual Online-2026.3.17
DownloadEco-Worthy_51.2V_100AH_9540A_VOC
DownloadEco-Worthy 48v 100ah BMS_Tool&Drive_for_Windows
DownloadEco-Worthy 48v 100ah LFP4810002_UL1973_Certification
DownloadEco-Worthy 48V 100Ah Server Rack BatteryFirmware.13.5.1-260225 (V3 compatible)
Download
