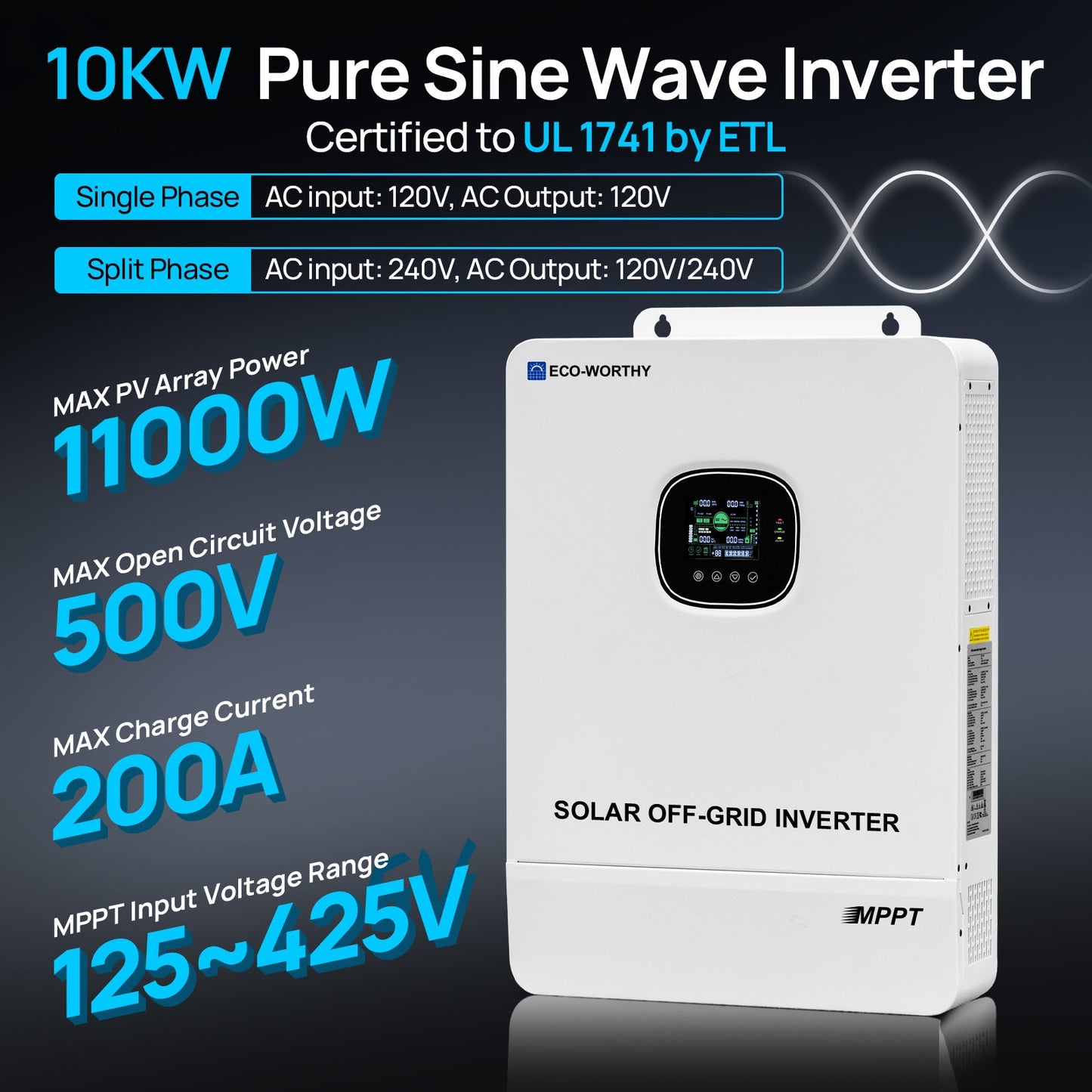

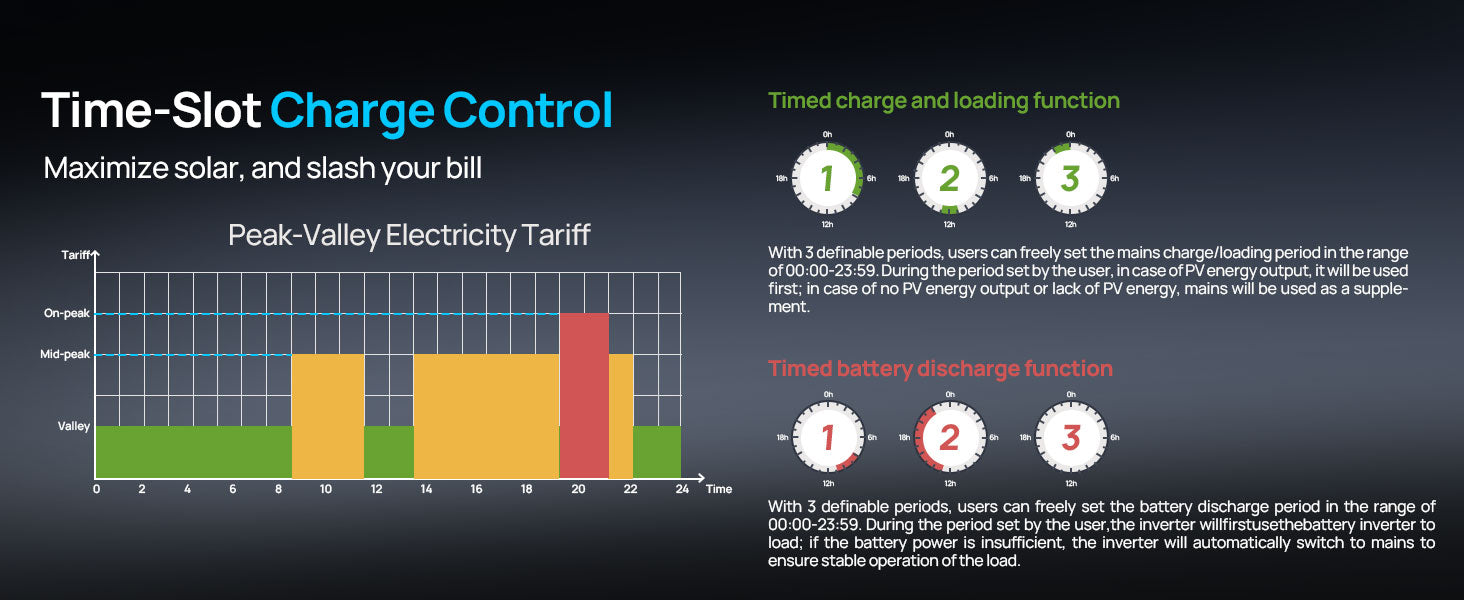

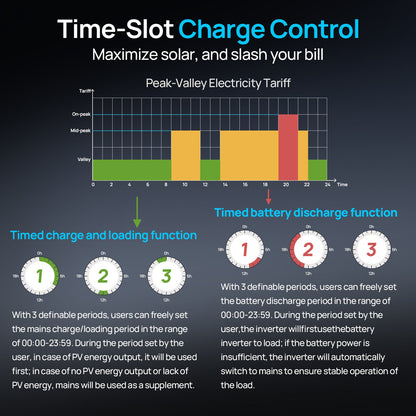

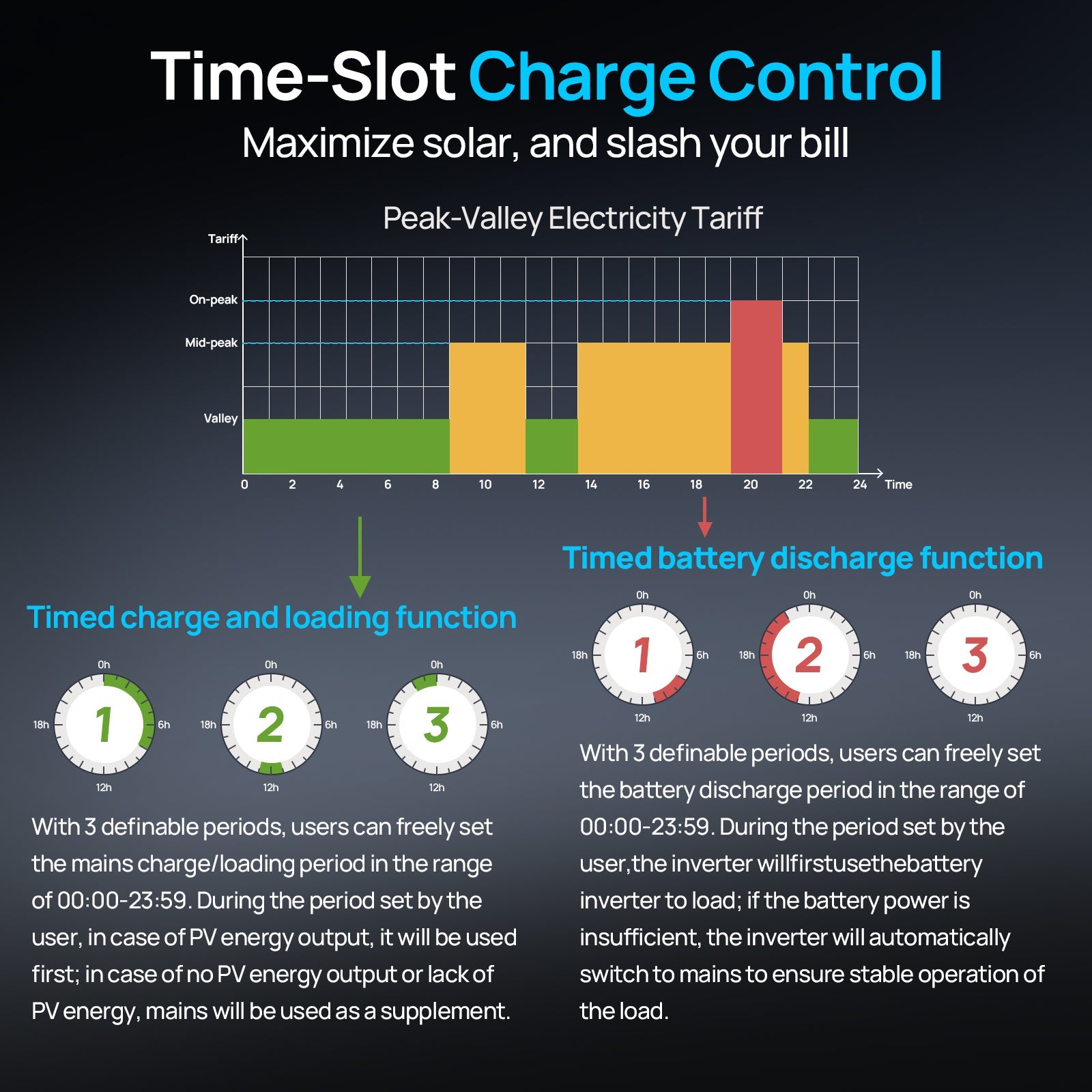

Power your system with the ECO-WORTHY 10000W off-grid solar inverter, a high-performance 48V split-phase inverter charger designed for home backup and solar energy storage. Featuring dual MPPT controllers with up to 11,000W PV input, 500VDC support, and 200A charging capacity, it maximizes solar efficiency and power output. Delivering pure sine wave 120V/240V output and scalable up to 60kW, this all-in-one inverter is ideal for off-grid homes, RVs, and workshops. With TOU energy management, and UL1741 certification, it ensures safe, smart, and reliable solar power anytime.

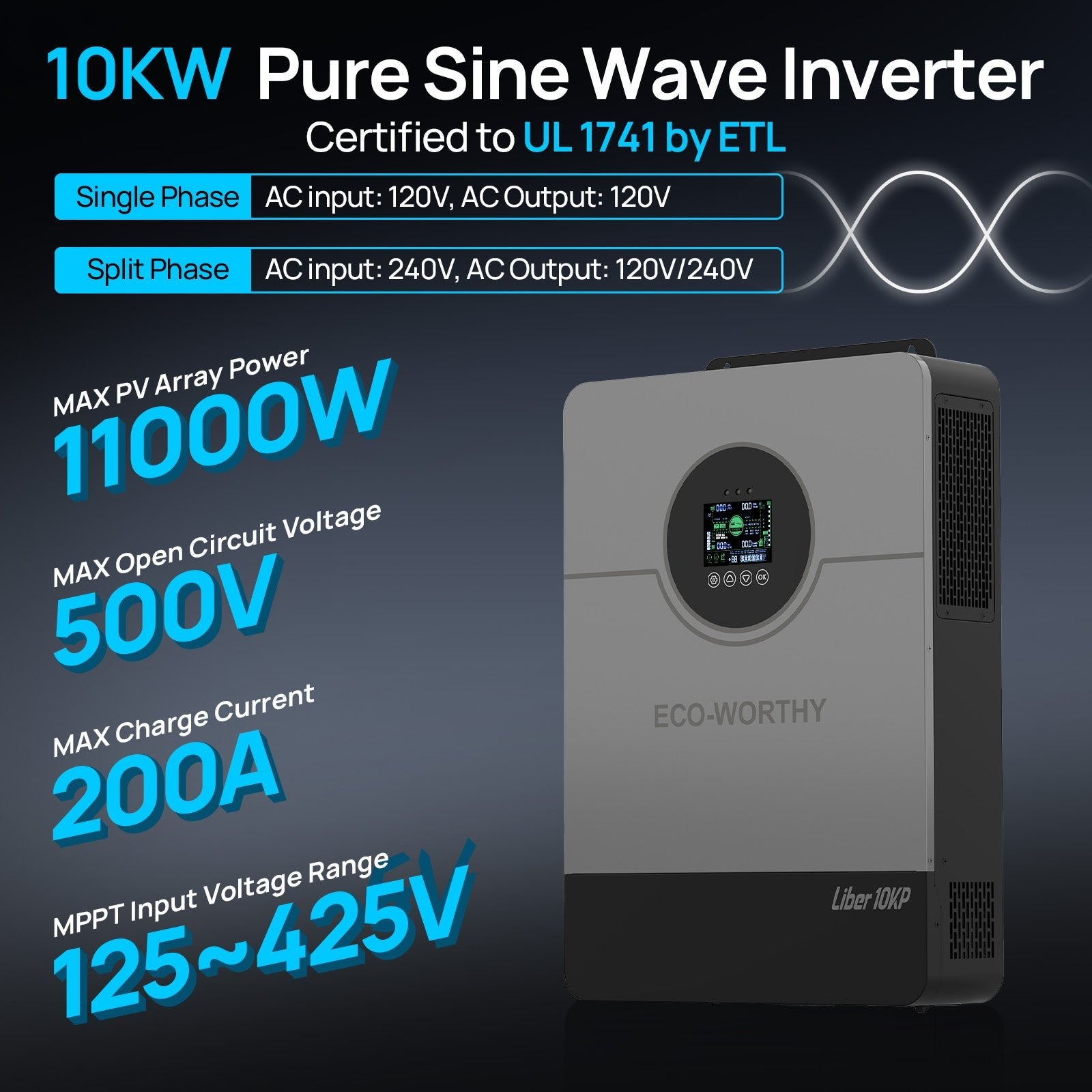

High-Power ECO-WORTHY 10000W Off-Grid Solar Inverter Charger for Reliable Energy Supply
Technical Specifications

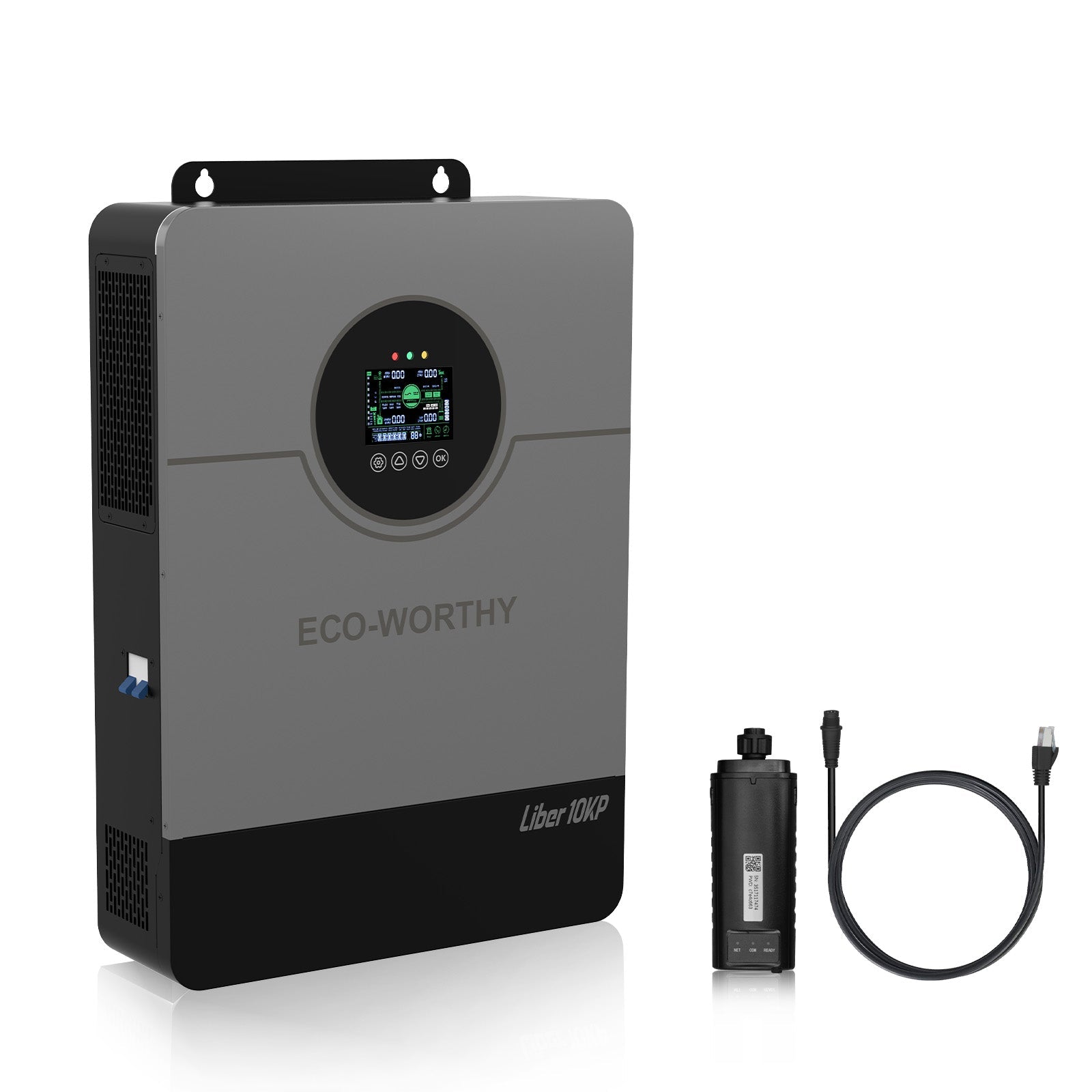

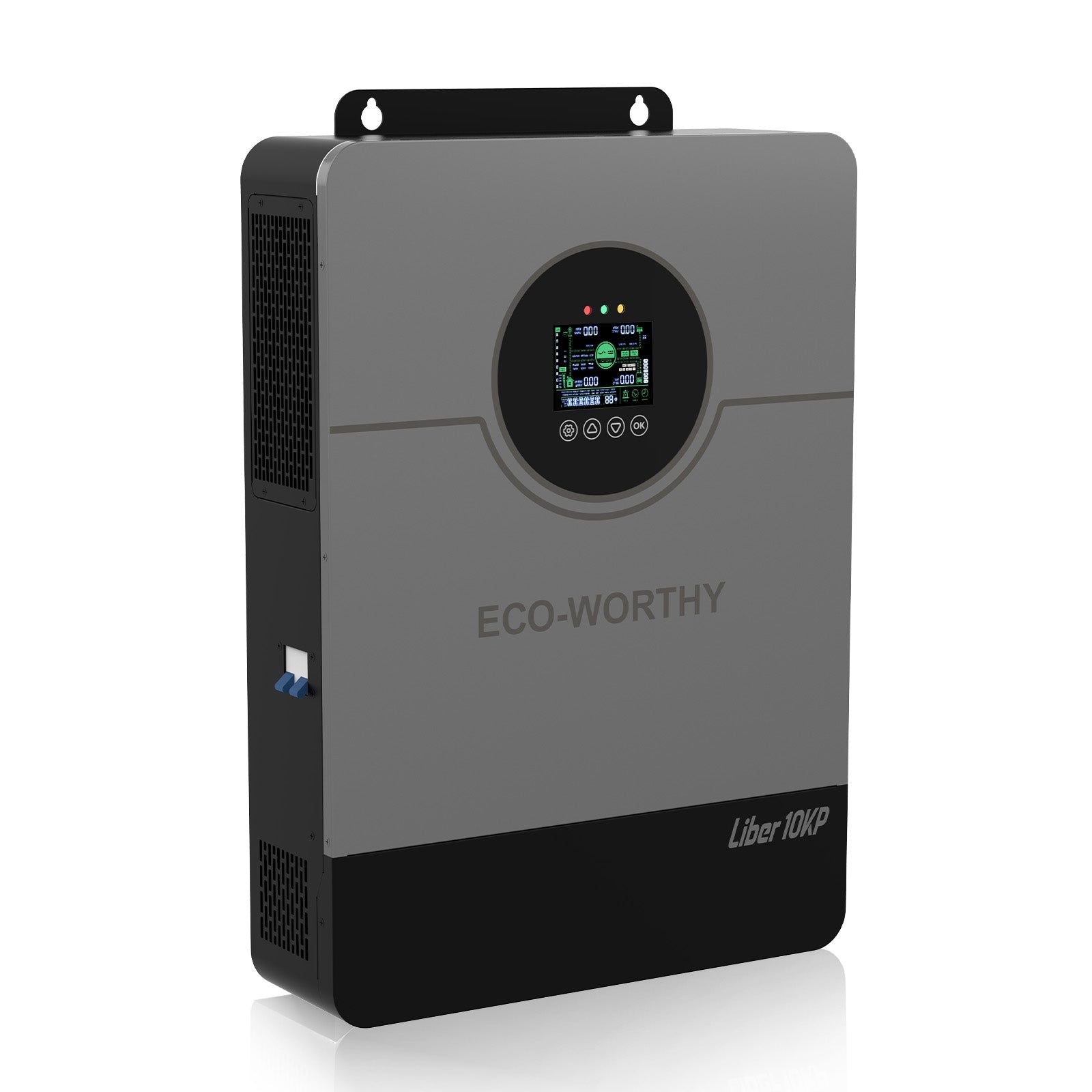

Eco-Worthy 10000W Solar Off-grid Split-phase AIO Inverter
Rated output power
10,000W
Maximum peak power
20,000W
Rated output voltage
120/240VAC(single-phase/split-phase)
Loading motor capacity
6HP
Rated frequency
50/60Hz
Output wave
Pure sine wave
Switching time
10ms (typical value)
Parallel number
6

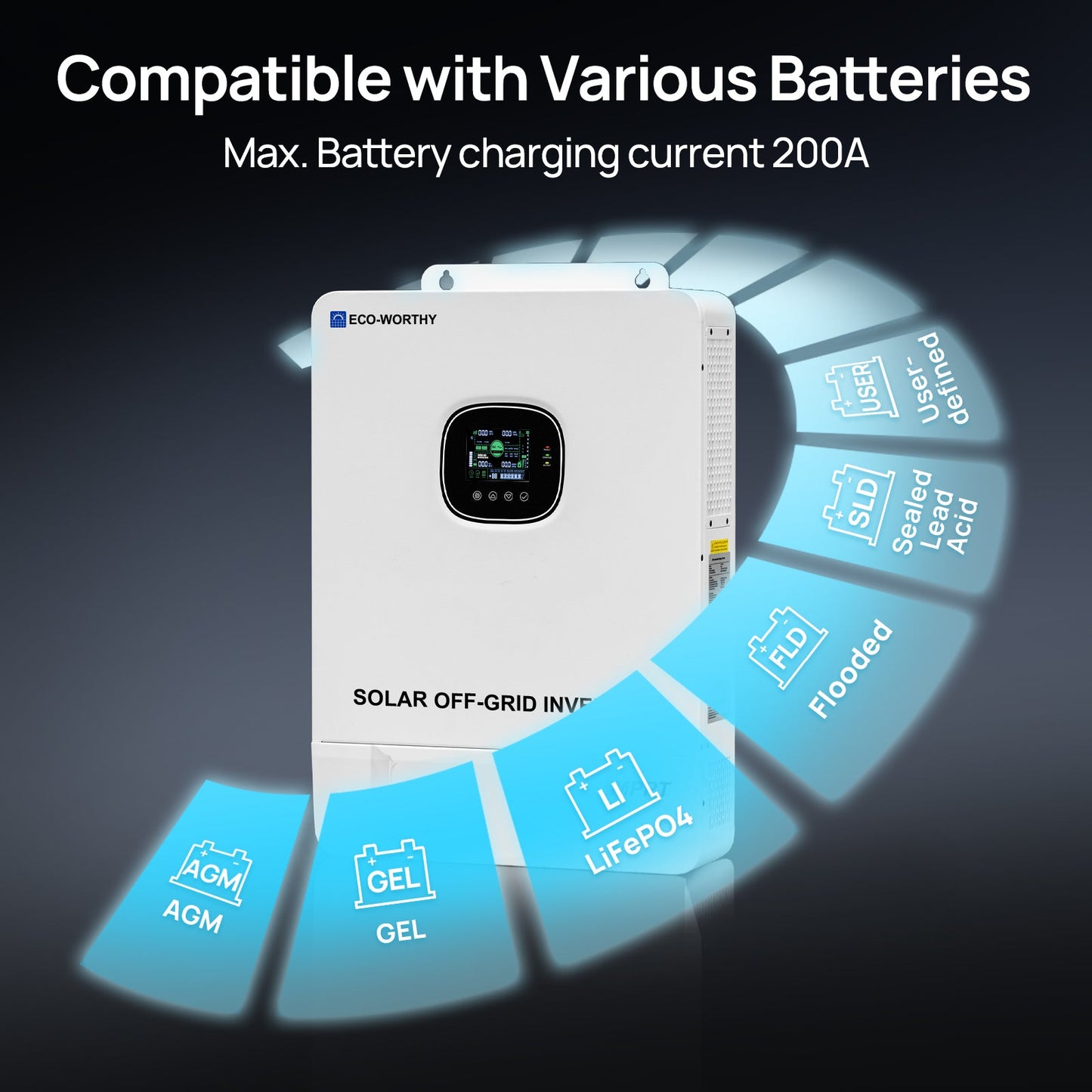

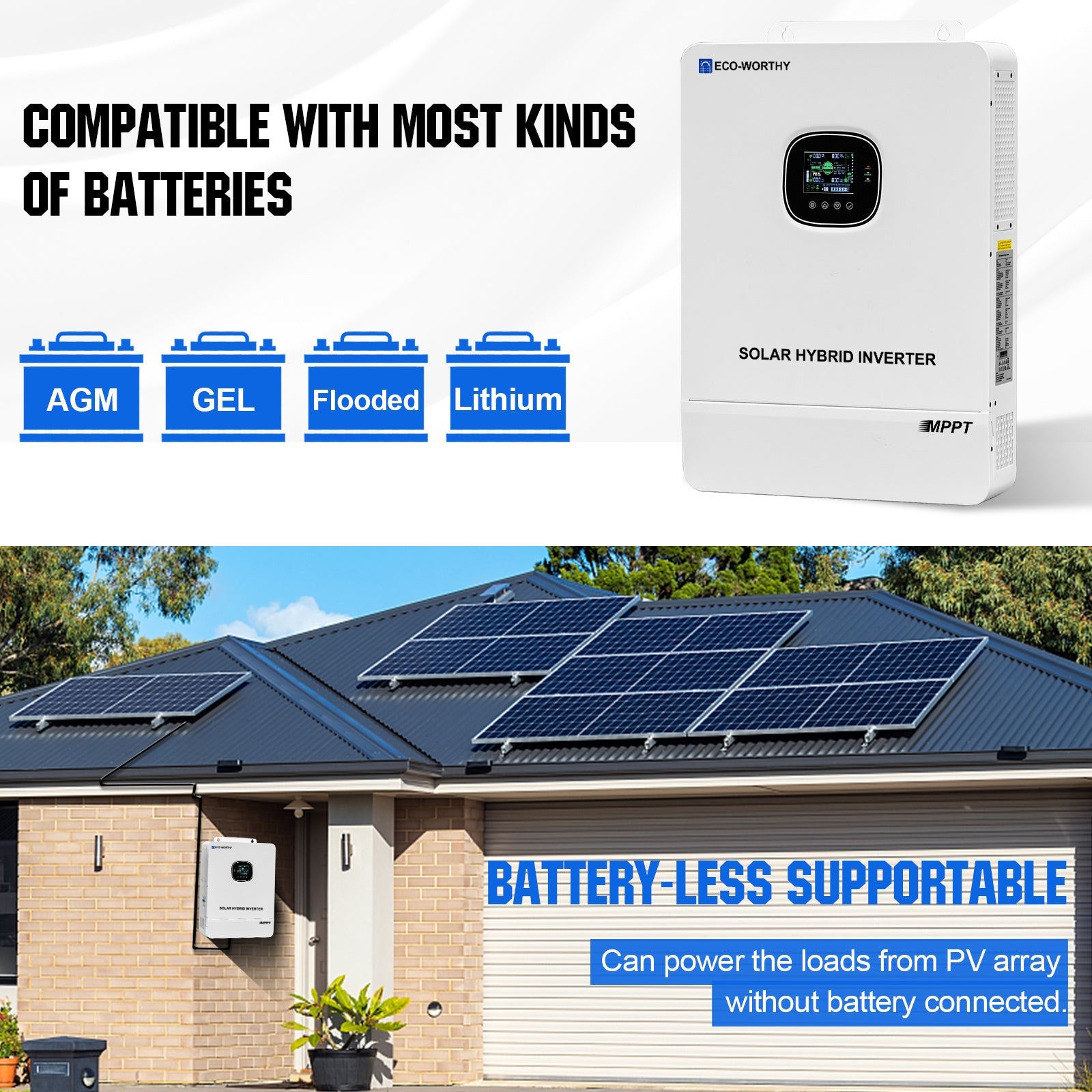

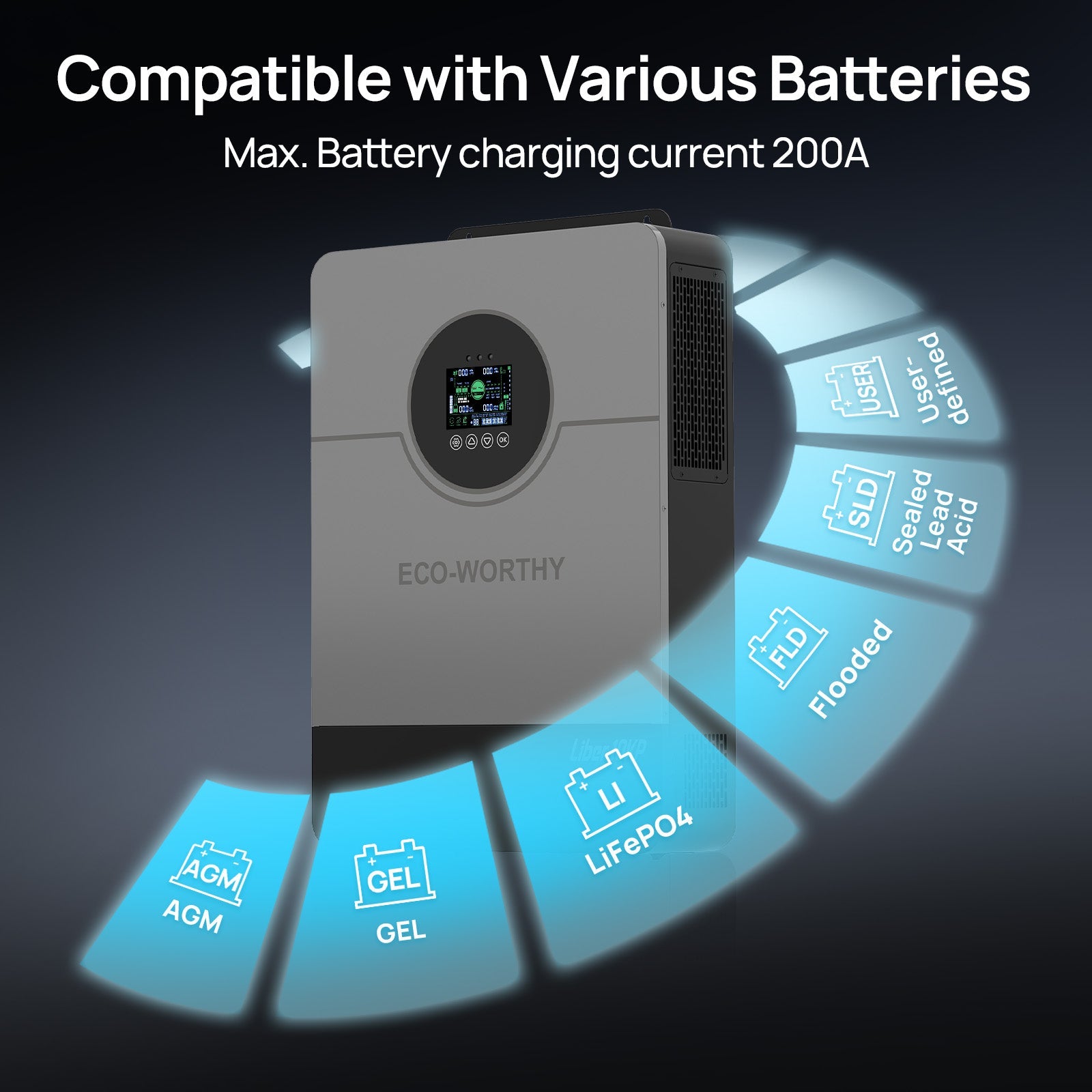

Battery type
Lithium-ionbattery/lead-acidbattery/user-defined battery
Rated battery voltage
48Vdc
Voltage range
40Vdc-60Vdc
Maximum PV charge current
200A
Maximum mains/generator charge current
120A
Maximum mix charge current
200A
MPPT channel number
2
Maximum input power
11,000W
Maximum Input Current
22/22A
Maximum open circuit voltage
500Vdc
MPPT operating voltage range
125 Vdc-425 Vdc
Input voltage range
90VAC-140VAC
Input frequency range
50/60 Hz
Bypass overload current
63A
Dimension
620 mm*445 mm*130 mm
Weight
27 kg
Protection level
IP20, for indoor use only
Ambient temperature
−10°C–55°C, >45°C derating
Noise
<60 dB
Cooling mode
Intelligent fan

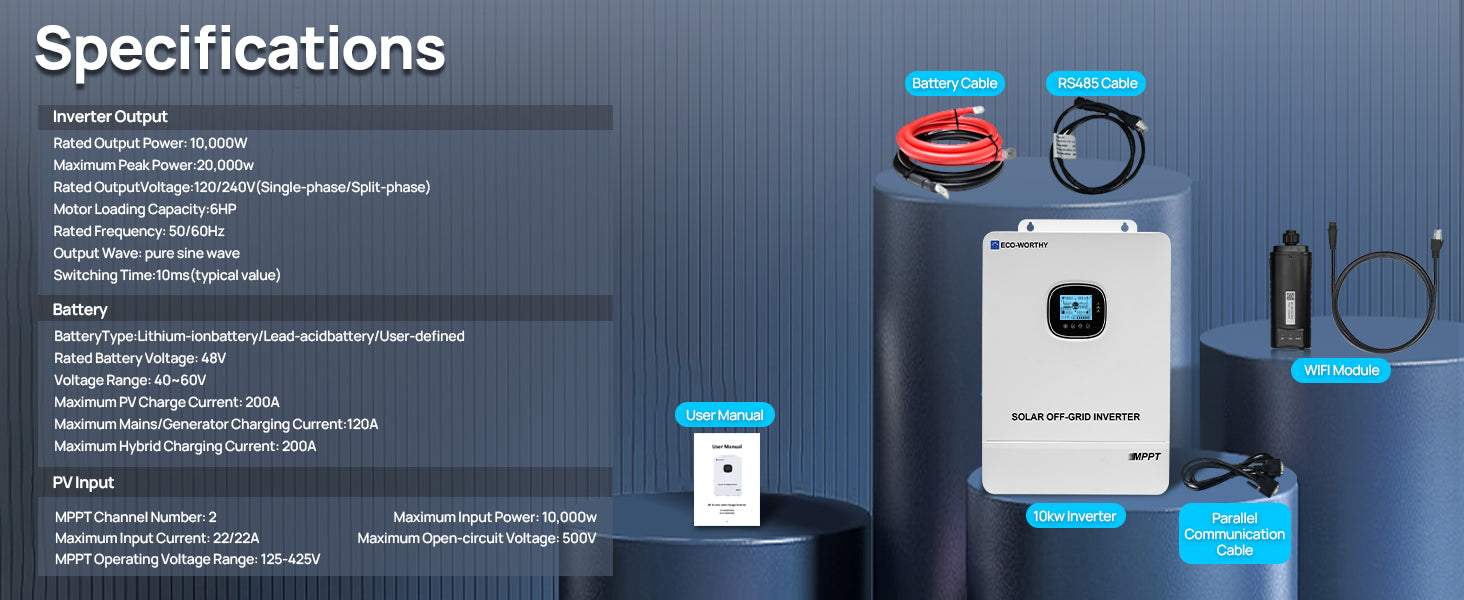

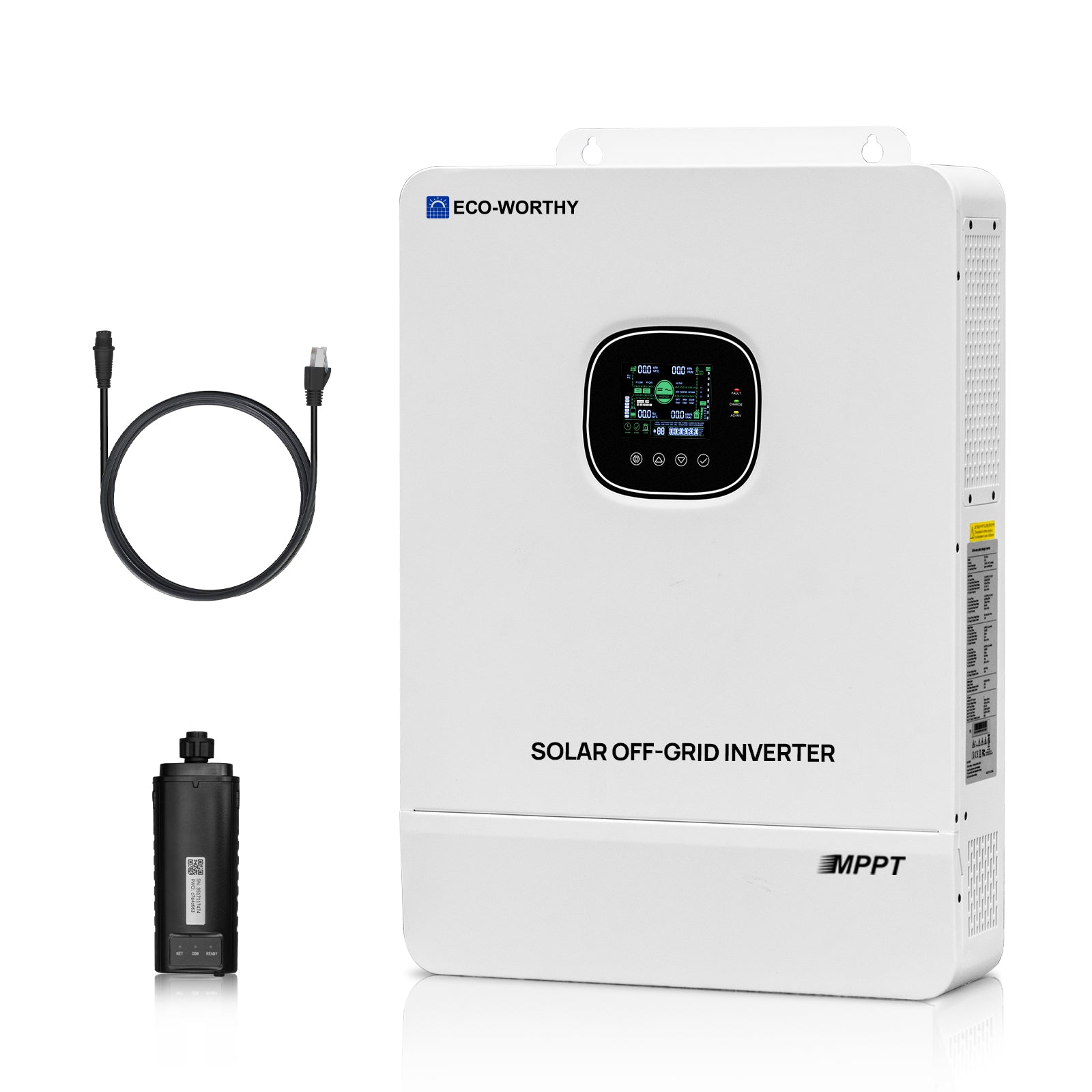

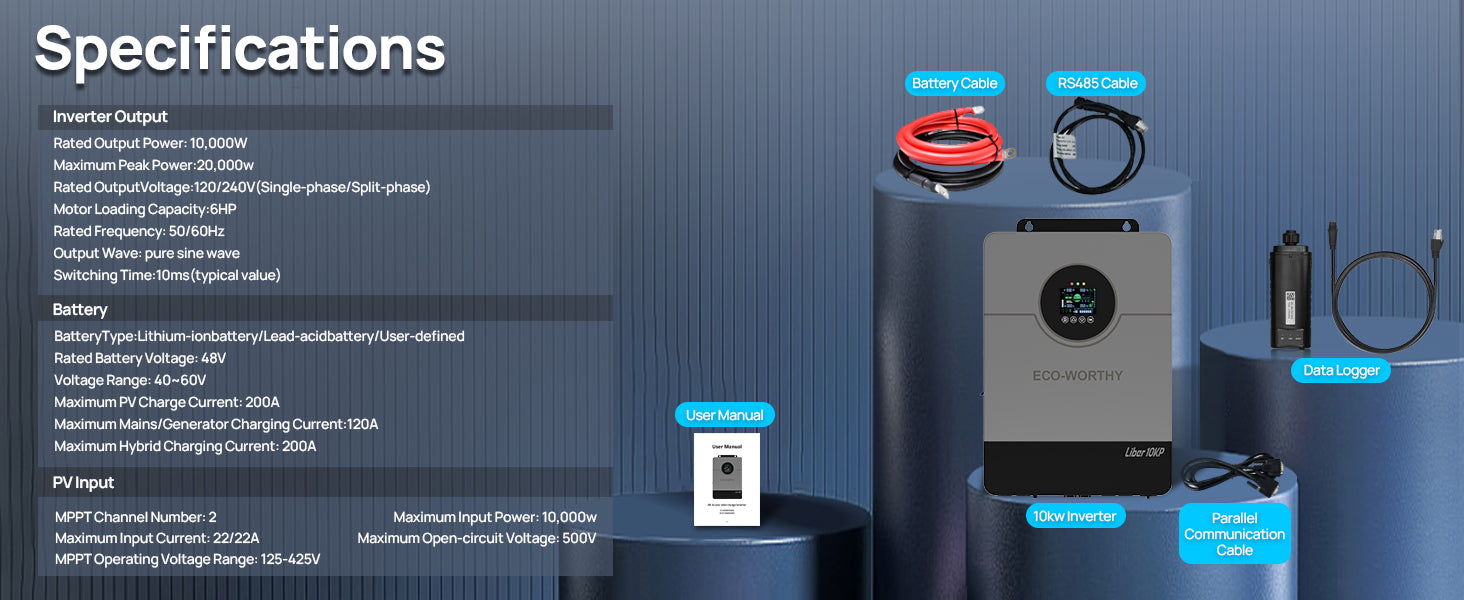

Included in the Box
User manual
Eco-Worthy 48V 10000W 120V 240V AC Solar Inverter Charger Manual
DownloadEco-Worthy ECO10000W SR Wiring Specification and Circuit Breaker Selection US Standard
DownloadEco-Worthy ECO10000W SR AIO Inverter Specification Sheet US Standard
DownloadEco-Worthy 10kW AIO Inverter&Battery Wiring Diagram&Configuration
Download10kW AIO Inverter Server Rack Battery Installation Guide
DownloadFrequently Asked Questions

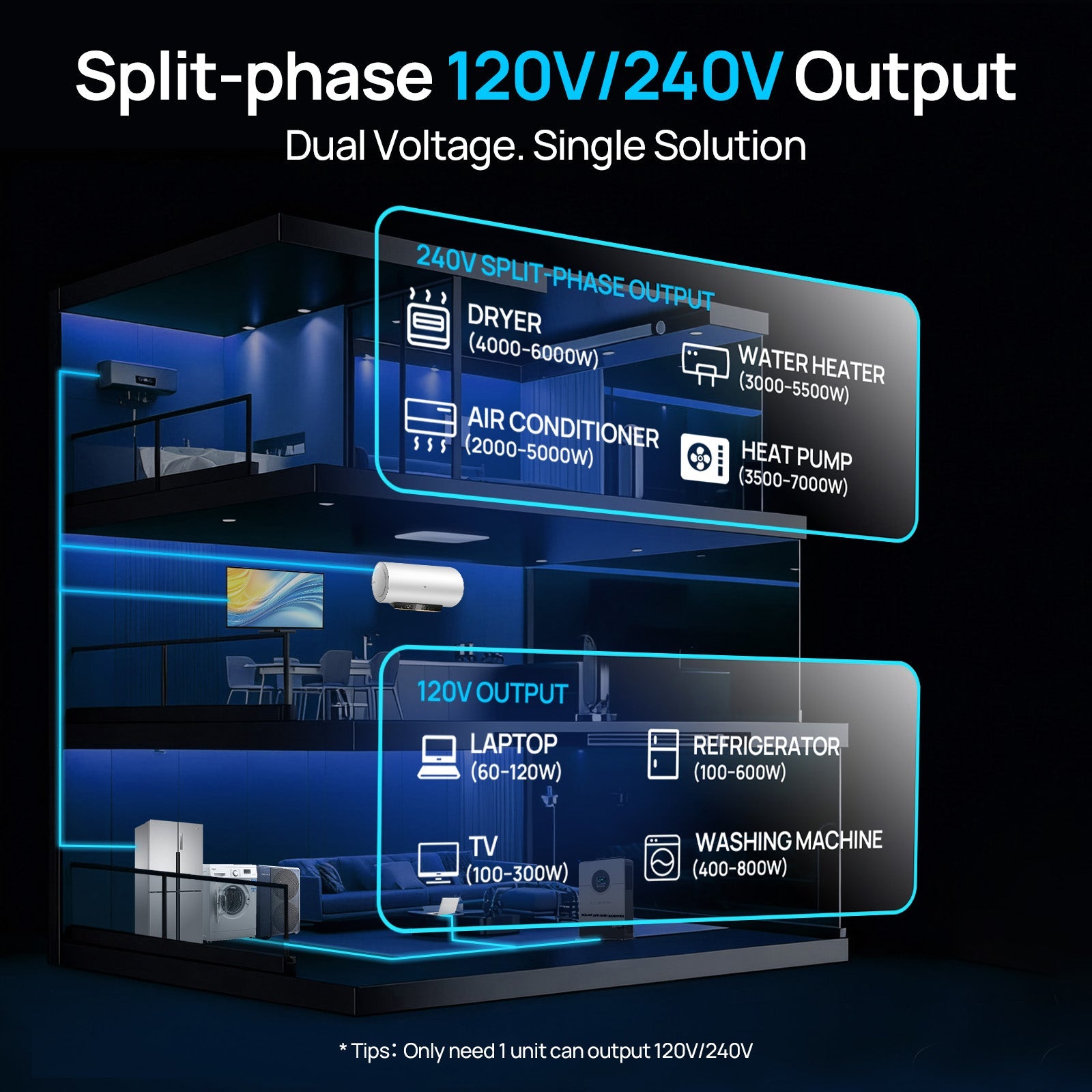

What AC output does the Liber 10KP provide?
+

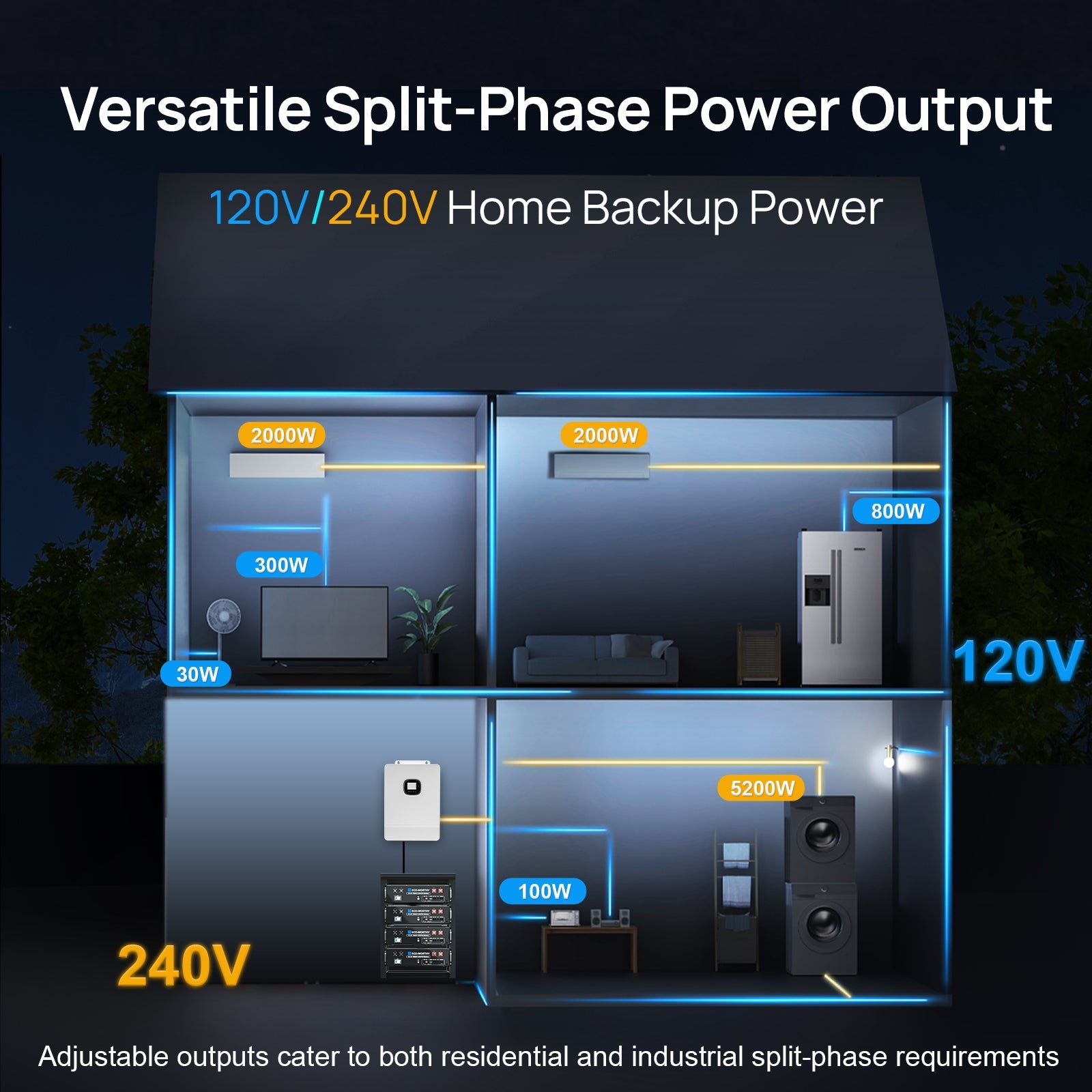

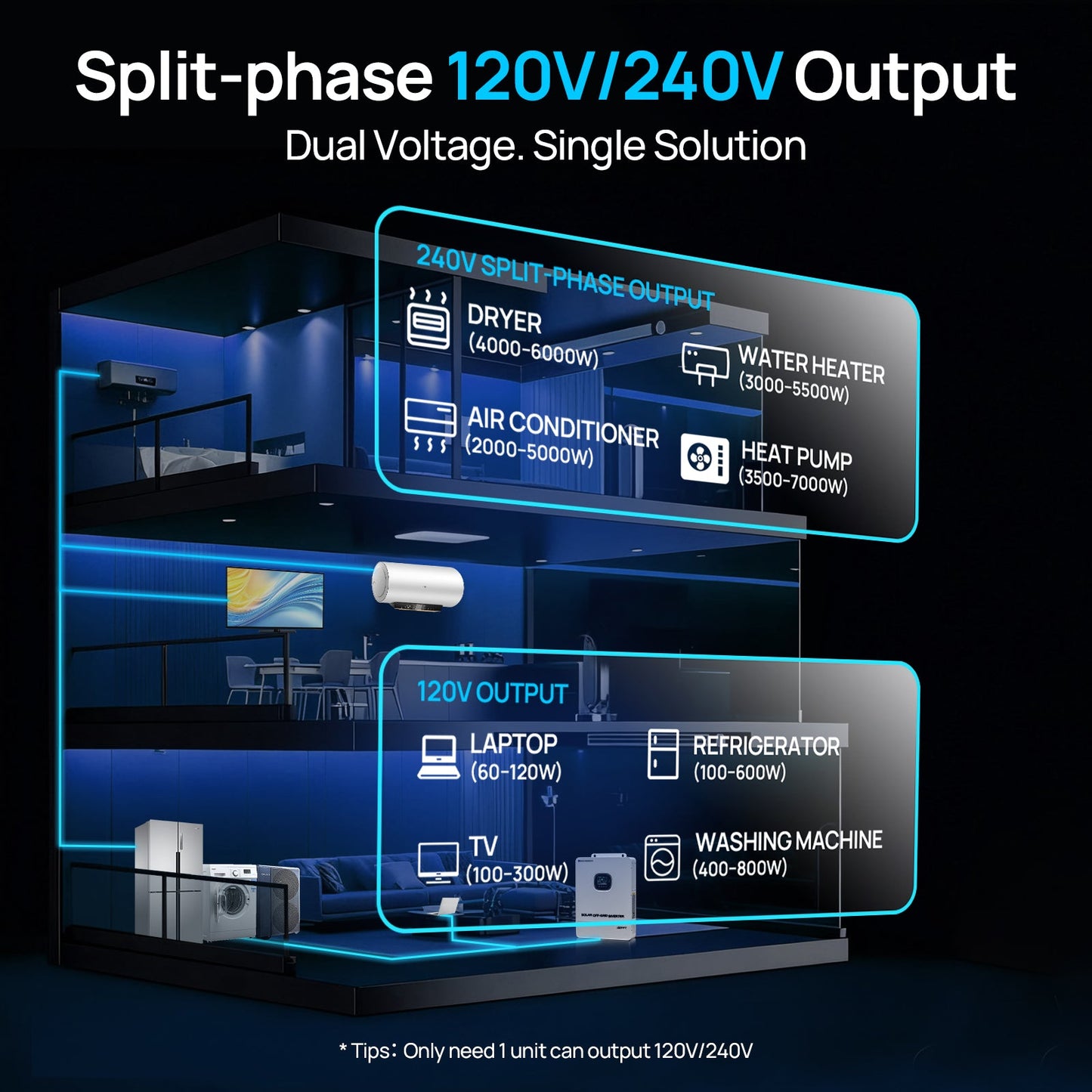

It delivers up to 10,000W of pure sine-wave power and supports 120V/240V split-phase output or 120V single-phase output for a 48V battery system.

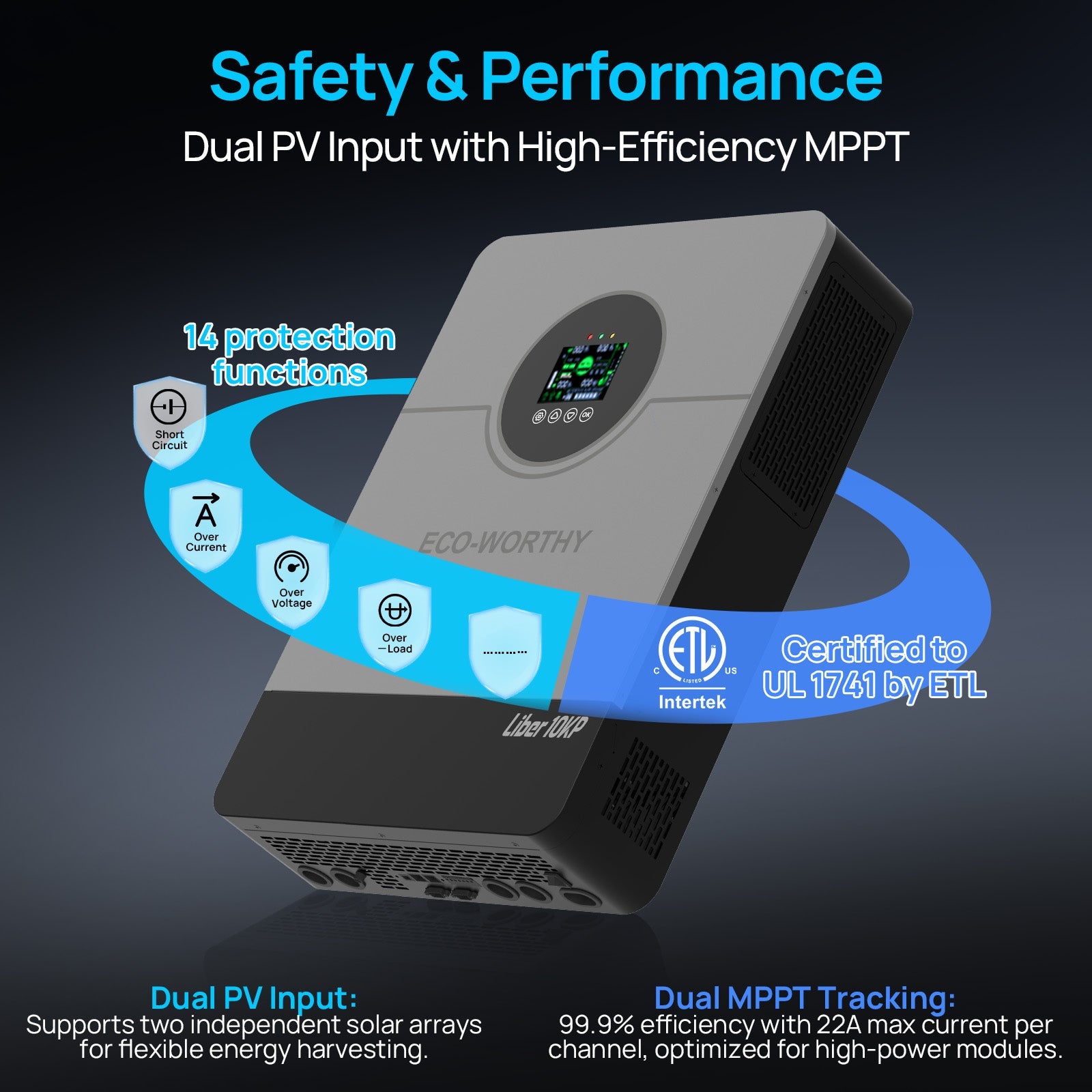

How much solar input can it accept?
+

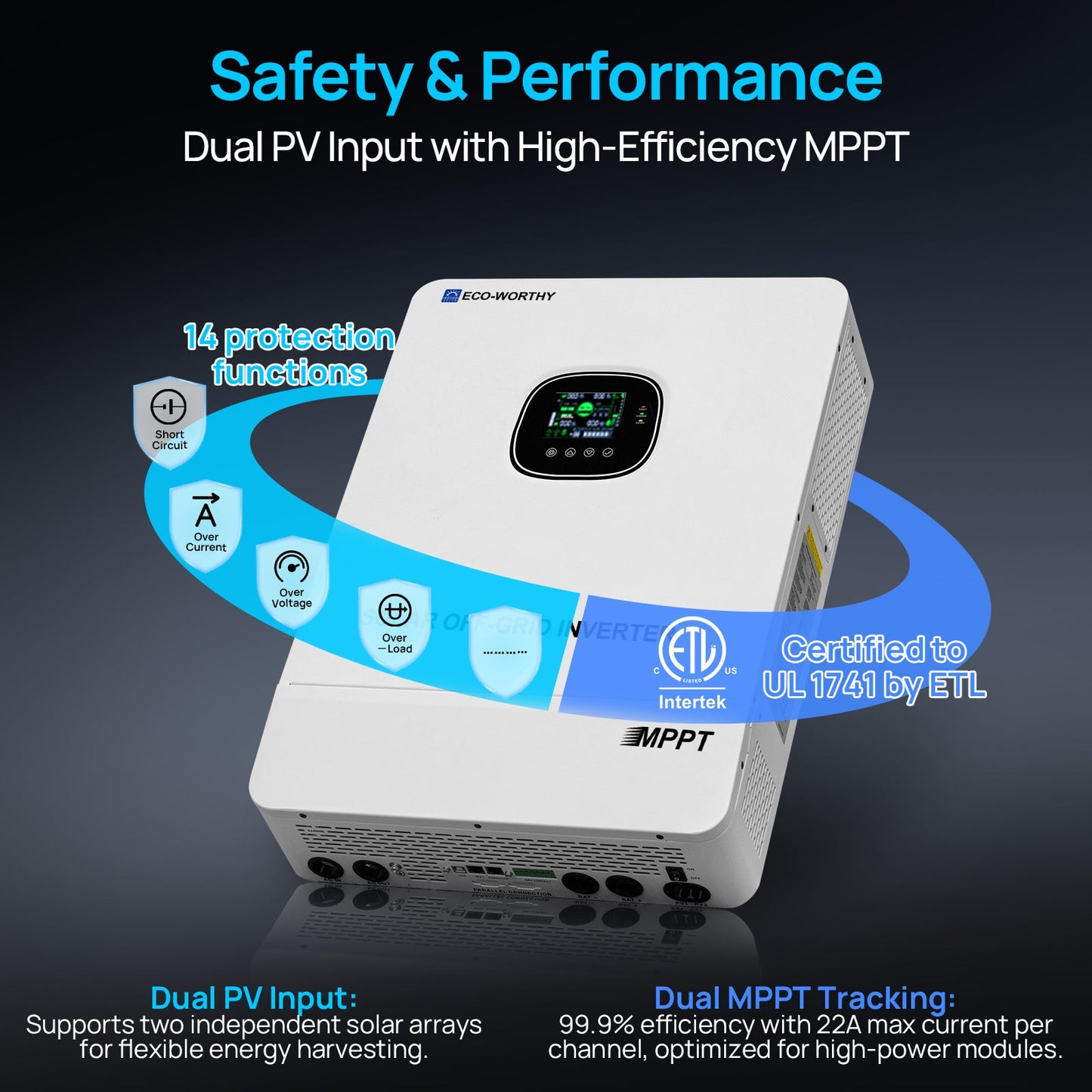

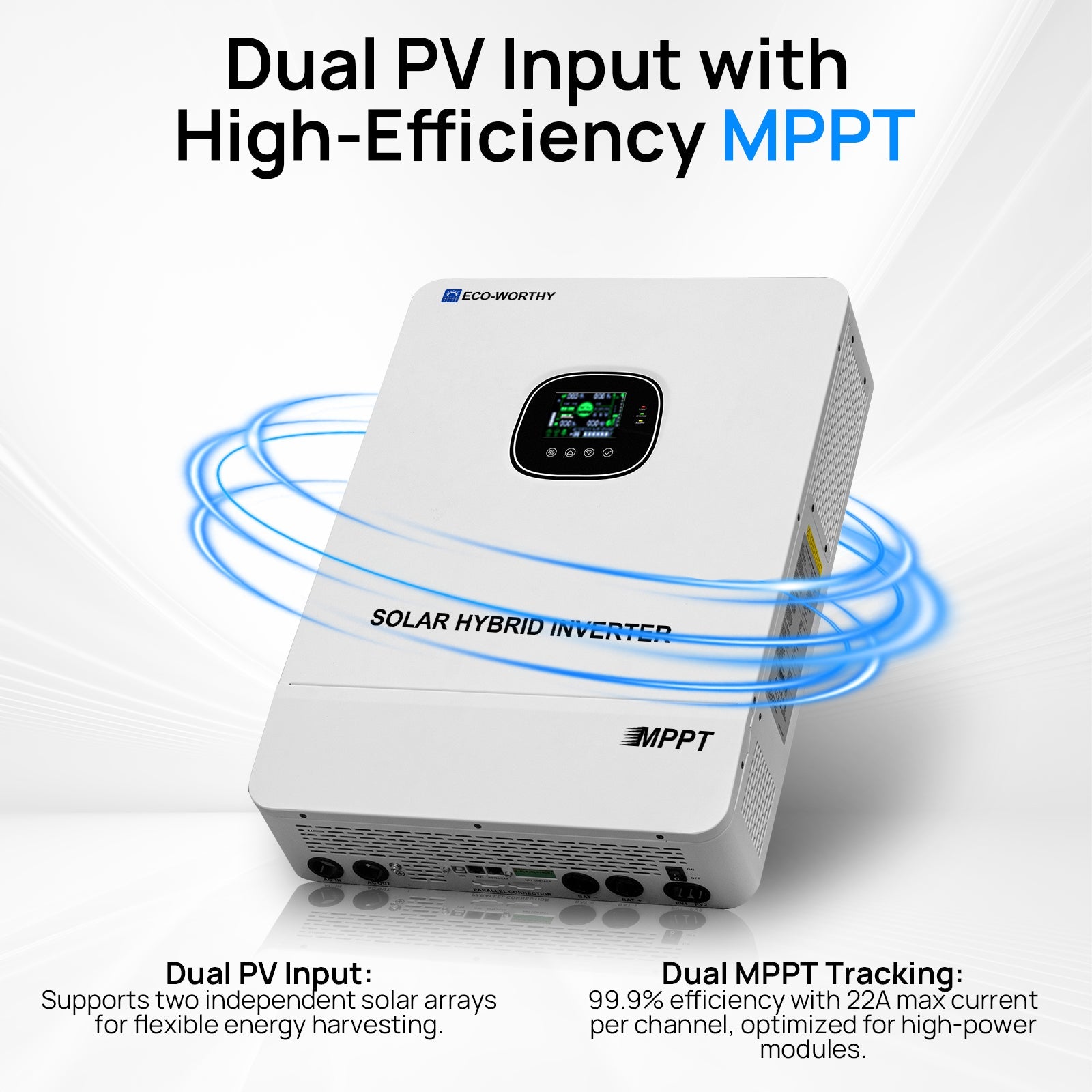

Its two independent MPPT controllers support up to 5,500W each, or 11,000W total PV input, with a maximum 500V DC open-circuit voltage.
What is the maximum battery charging current?
+
The inverter supports up to 200A charging, including up to 120A from AC and up to 200A from PV or hybrid charging, subject to system settings and battery limits.

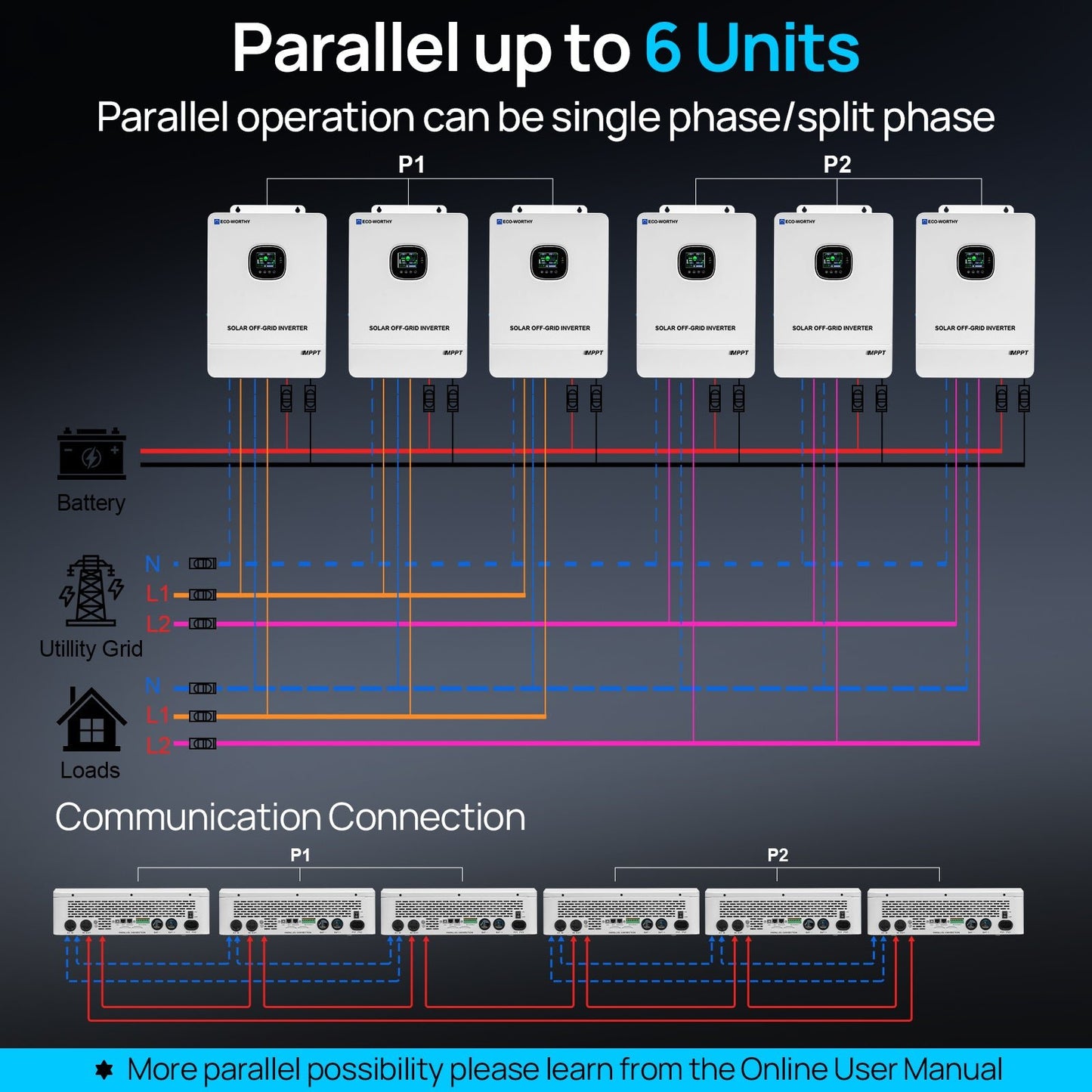

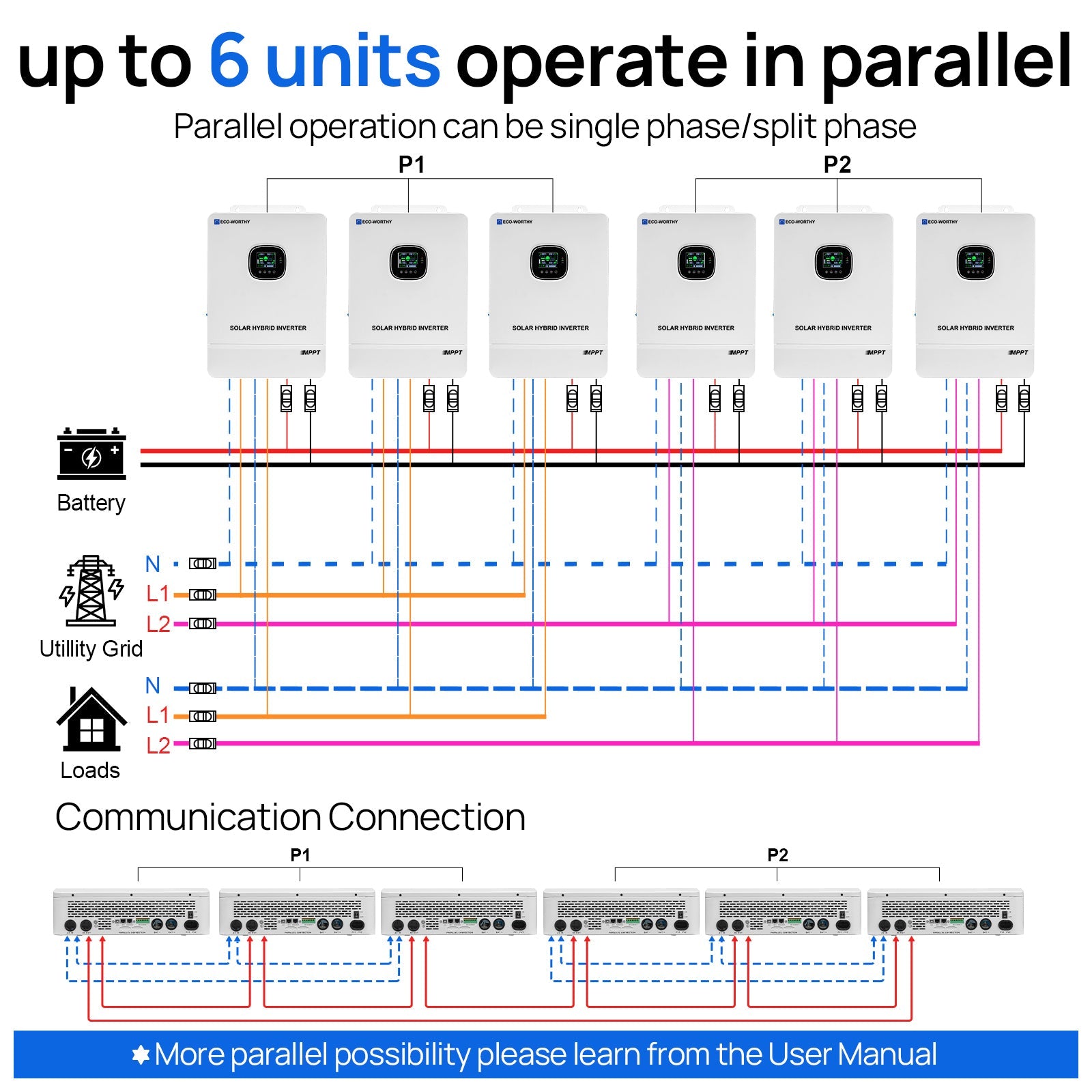

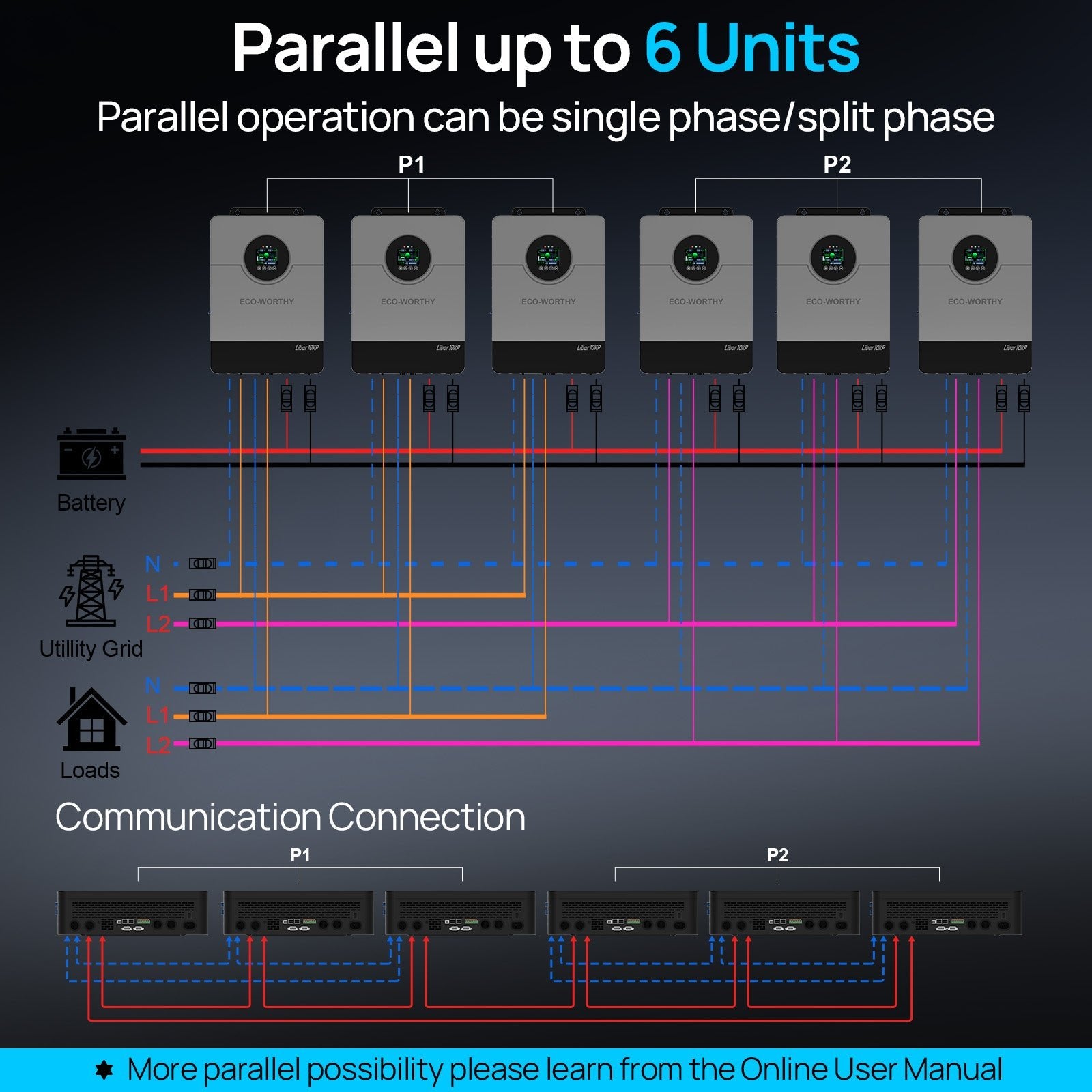

Can multiple inverters be connected in parallel?
+
Yes. Up to six units can be paralleled for as much as 60kW of AC output. Follow the manual's parallel wiring and configuration requirements.

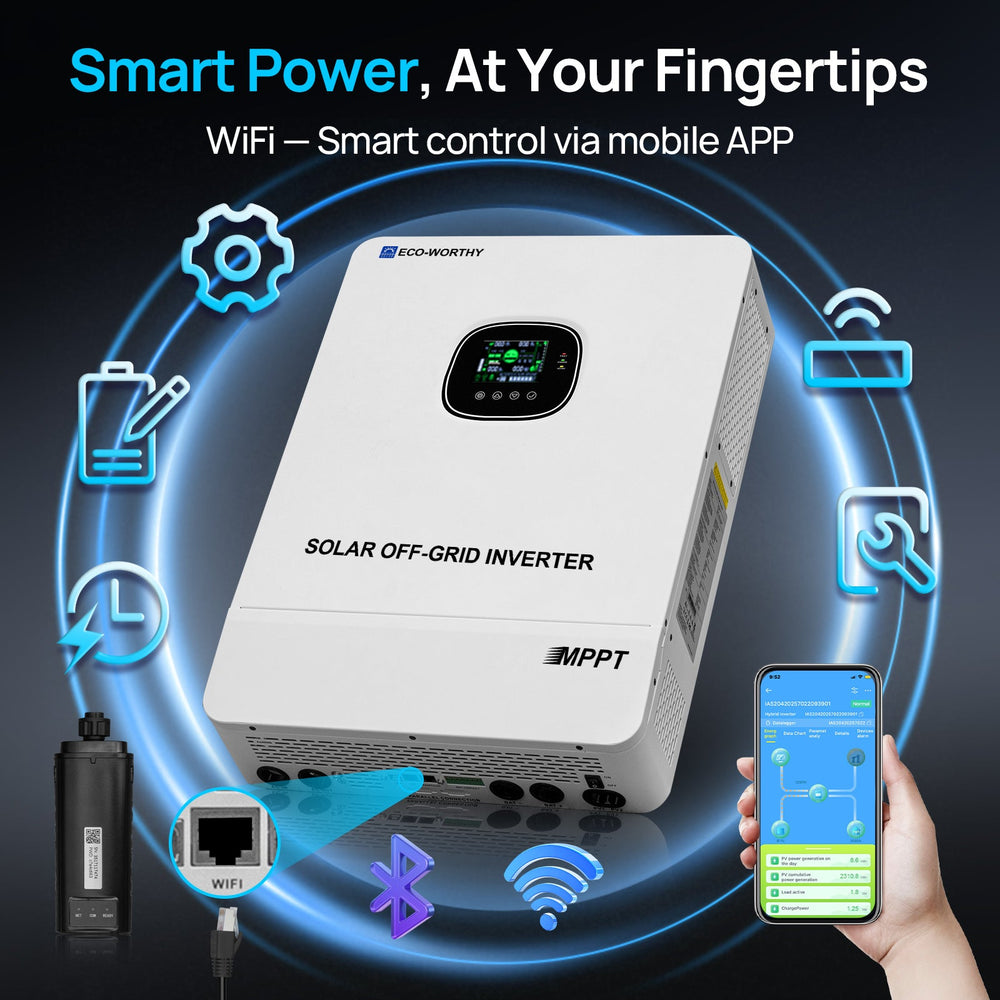

Is the inverter certified and remotely monitored?
+
The Liber 10KP is UL 1741 certified and includes remote app monitoring. It also supports closed-loop communication with compatible 48V batteries.
