ECO-WORTHY 12kW 30kWh Hybrid Home Backup Power Storage System with 48V 100ah Battery and 12kW Hybrid Inverter

ECO-WORTHY 12kW 30kWh Hybrid Home Backup Power Storage System with 48V 100ah Battery and 12kW Hybrid Inverter

$7,199.99
$7,199.99 $8,999.99
Sale Sold out
Shipping calculated at checkout.

SKU:

GW-ECO-BESS-12KWCV3SR06

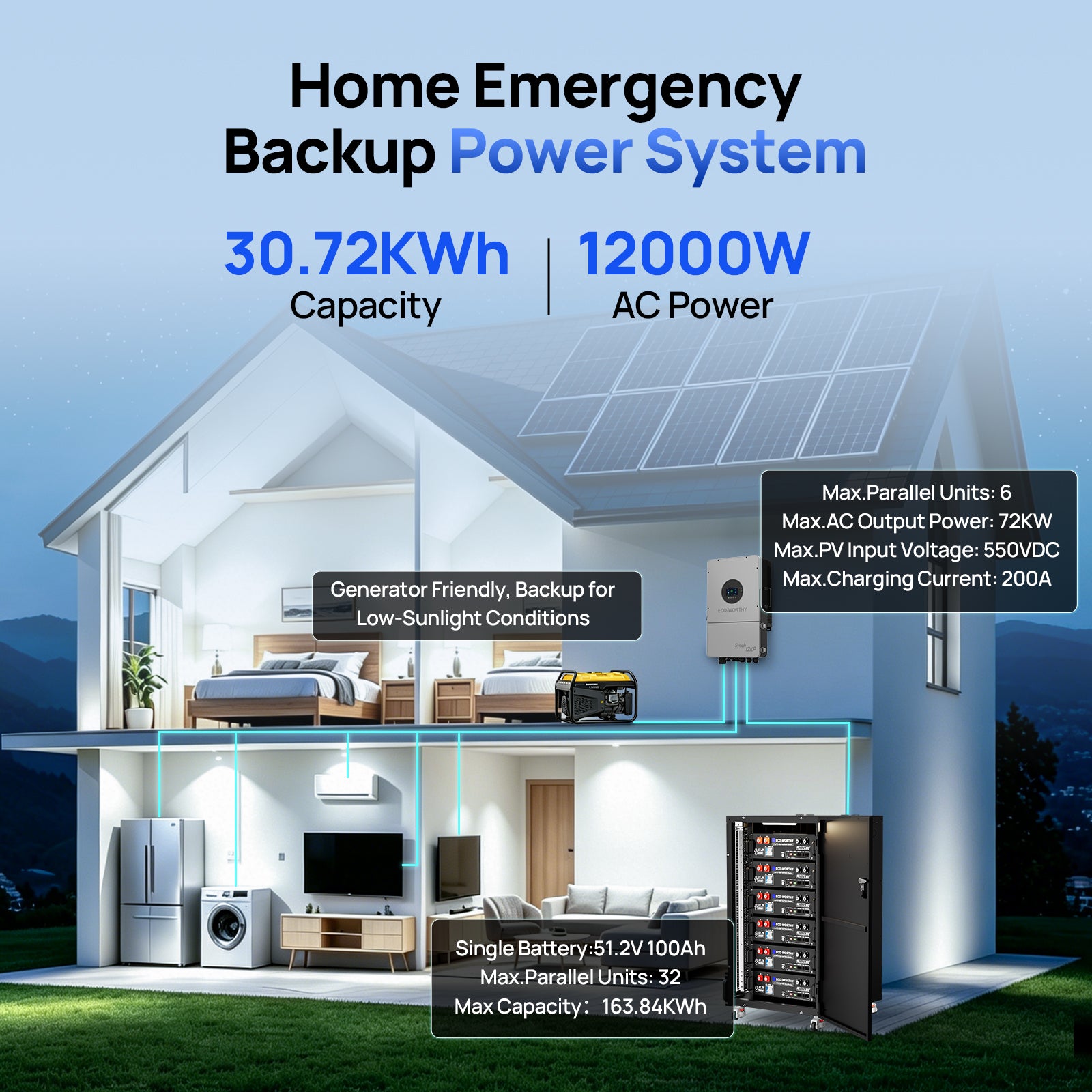

[Whole-Home Backup Power] Delivering 120V/240V split-phase 12kW output, this system can run your entire home—including HVAC, appliances, and essential loads. Expandable energy storage up to 30kWh+ ensures reliable power during outages.

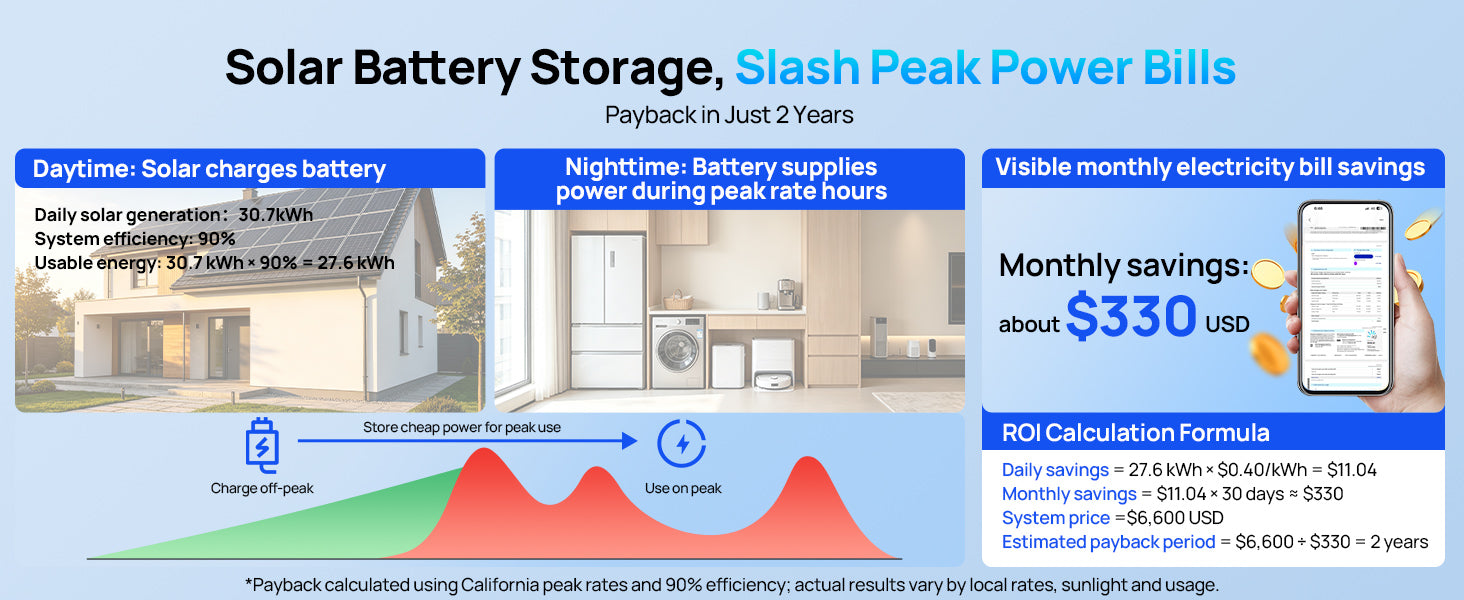

[Smart Energy Savings with TOU] Reduce electricity bills with grid-tie capability and Time-of-Use (TOU) settings. Automatically switch between solar, battery, and grid power, or send excess energy back to the grid for maximum savings.

[Scalable & Future-Proof System] Easily expand as your energy needs grow—supporting up to 6 inverters (72kW total output) and 32 batteries. Compatible with generator input for added flexibility and backup security.

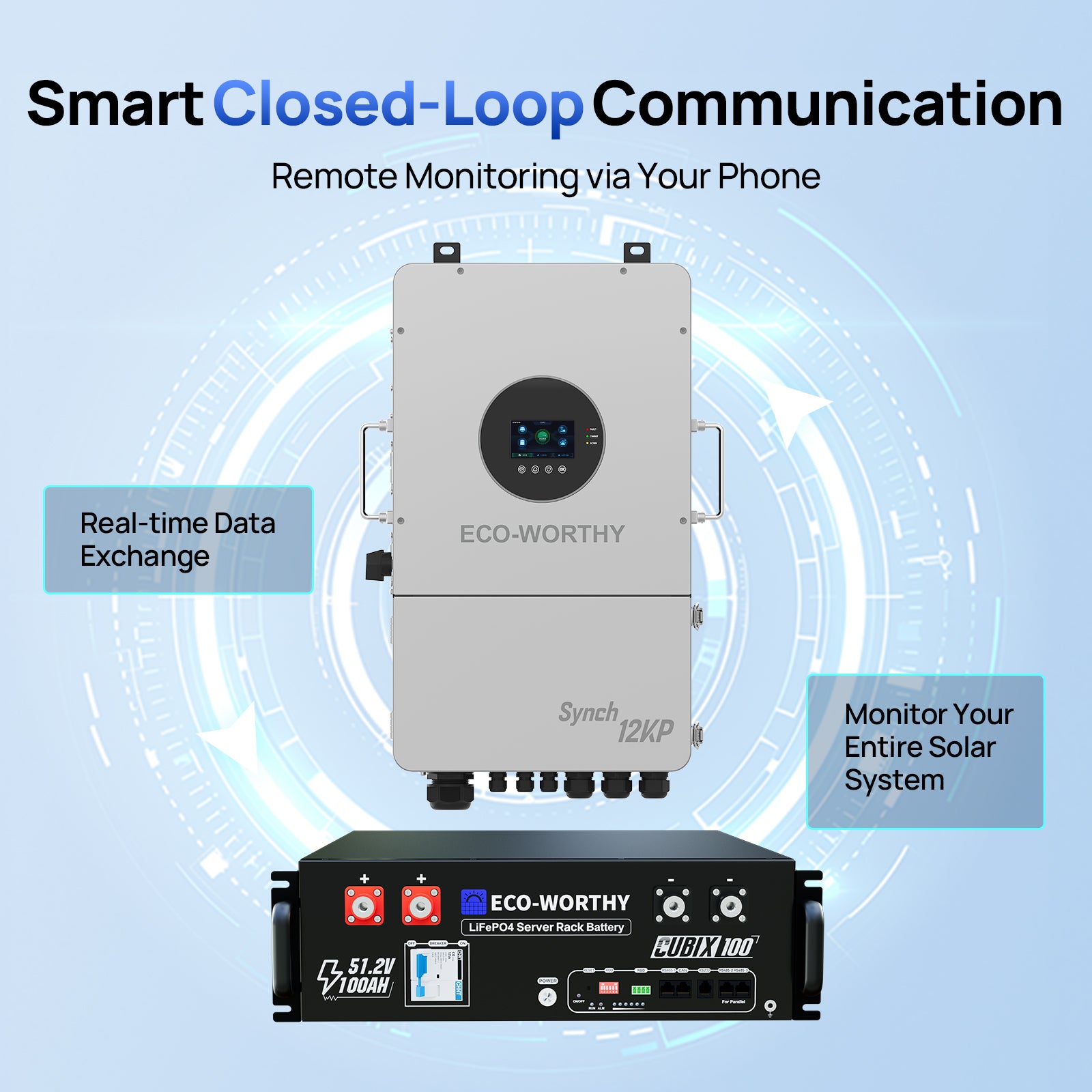

[Real-Time Smart Monitoring] Stay in control with built-in WiFi and seamless BMS communication. Monitor system performance, battery status, and energy usage anytime through your mobile app.

[Expert Support & Easy Installation] Beyond standard customer service, we assist with installer coordination and technical guidance, reducing setup complexity and ensuring a smooth, worry-free installation experience.

Read More

Plese Note: The RACK6 V3 Server Rack Battery Cabinet is on presale now，Expect to ship out on about Sept 18th

Total Price

$7,199.99
Buy It Now

Free Shipping

Return Guarantee

Secure Payment

or 4 interest-free payments of $1,799.99 with

Installments available at checkout
Shop with Confidence at Eco-Worthy

Free & Fast Delivery

14-Day Money-Back Guarantee

Up To 10-Year Warranty

Lifetime Customer Support

Pay with ease

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Trusted delivery

View full details
X
$7,199.99 $8,999.99
Learn More
Buy It Now
Feature
Included in the box
Reviews
FAQs

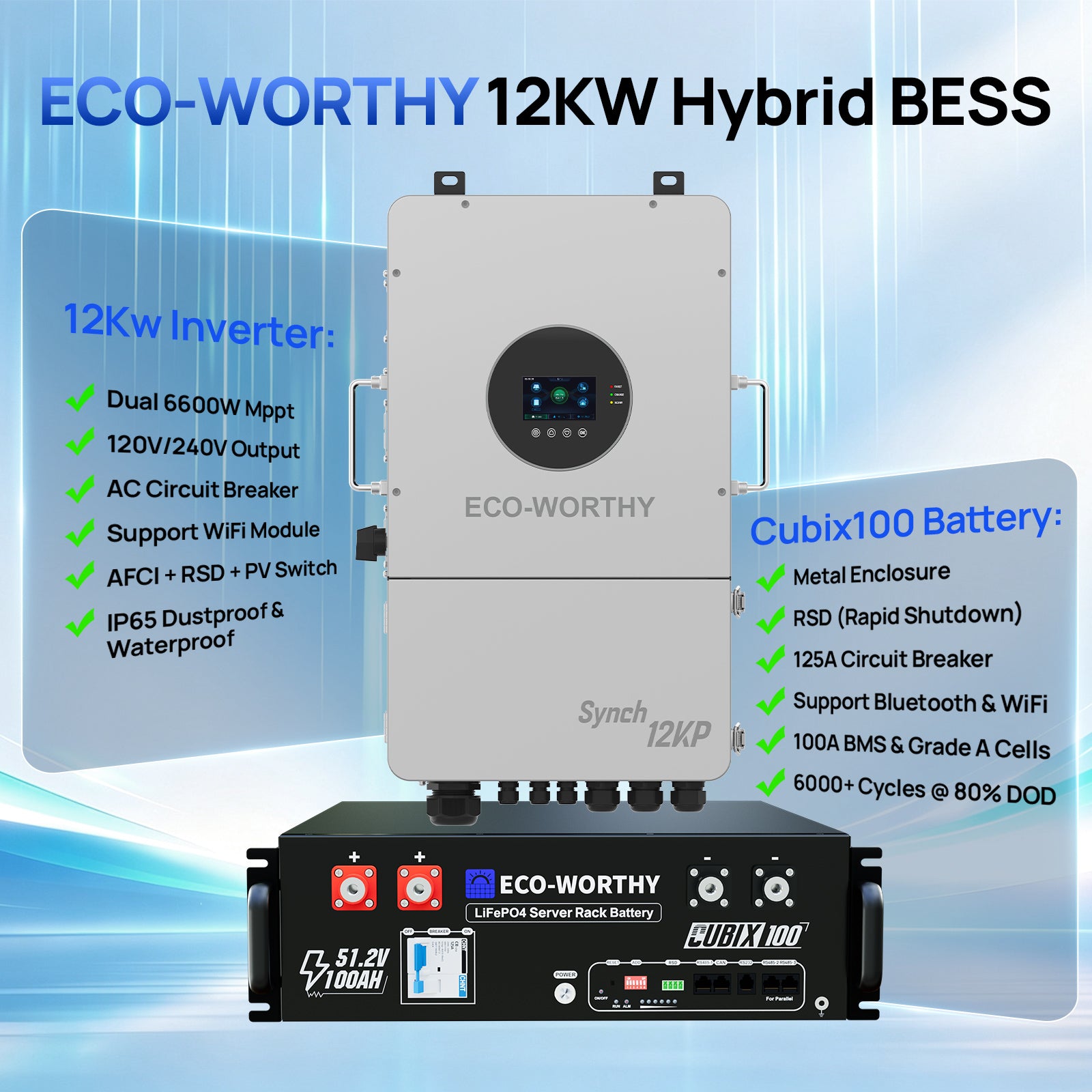

Power your home with a high-performance 12kW solar hybrid inverter, designed for whole-home energy storage and off-grid solar systems. Delivering 120V/240V split-phase output, it easily runs heavy appliances like HVAC and large loads. Featuring dual MPPT trackers with ultra-high efficiency, it maximizes solar input and supports flexible panel configurations. Smart energy management with time-of-use (TOU) control helps reduce electricity costs through peak shaving and optimized grid usage. Built with IP65 protection, advanced safety features (AFCI, rapid shutdown), and scalable up to 72kW, this inverter is the ideal solution for residential solar power, backup energy, and energy independence.

Technical Specifications

48V 100Ah Server Rack Battery
12KW INVERTER

Battery Capacity

100Ah

Battery Power

5120Wh

Rated Voltage

40~58V

Maximum Charge/Discharge Current

100A

Charge Temperature Range

0-55°C

Discharge Temperature Range

-20-55°C

Voltage Range

40~58V

Maximum Charge Voltage

58.4V

Screw size

M8

Battery Size

22.09*19.02*5.63inch

Battery Weight

103 lbs

Certification

UL9540 | UL1973 | UL9540A | CEC LISTED

Warranty

10 Year Warranty

Rated Output Power

@240V 12000W @208V 10400W

Max.Peak Power

2 times rated power@5S

Rated Output Voltage

120/240Vac(Split-phase)120/208V(Three-phase)

Rated Output Current

50A

Load Capacity of Motors

6HP

Rated ACF requency

50/60Hz

Wave form

Pure Sine Wave

Parallel Capacity

6

Battery Type

Li-ion / Lead-Acid / UserDefined

Rated Battery Voltage

48Vdc

Voltage Range

40-60Vdc

Max.PVCharging Current

200A

Max.Grid Charging Current

120A

Max.Generator Charging Current

60A

Max.Hybrid Charging Current

200A

Num. of MPPT rackers

2

Max.PV Array Power

6600W/6600W

Max.Input Current

25A+25A

Max.Voltage of Open Circuit

550Vdc+550Vdc

MPPT Voltage Range

125-450Vdc/125-450Vdc

Input Voltage Range

90-140Vac 90-140Vac each live wire

Frequency Range

50/60Hz

Bypass Phase Current

63A

Dimensions

29.5"×17.3"×9.4"

Weight

93lbs

Protection Degree

IP65

Operating Temperature Range

—13 - 140°F, >113°F derated

Noise

<60dB

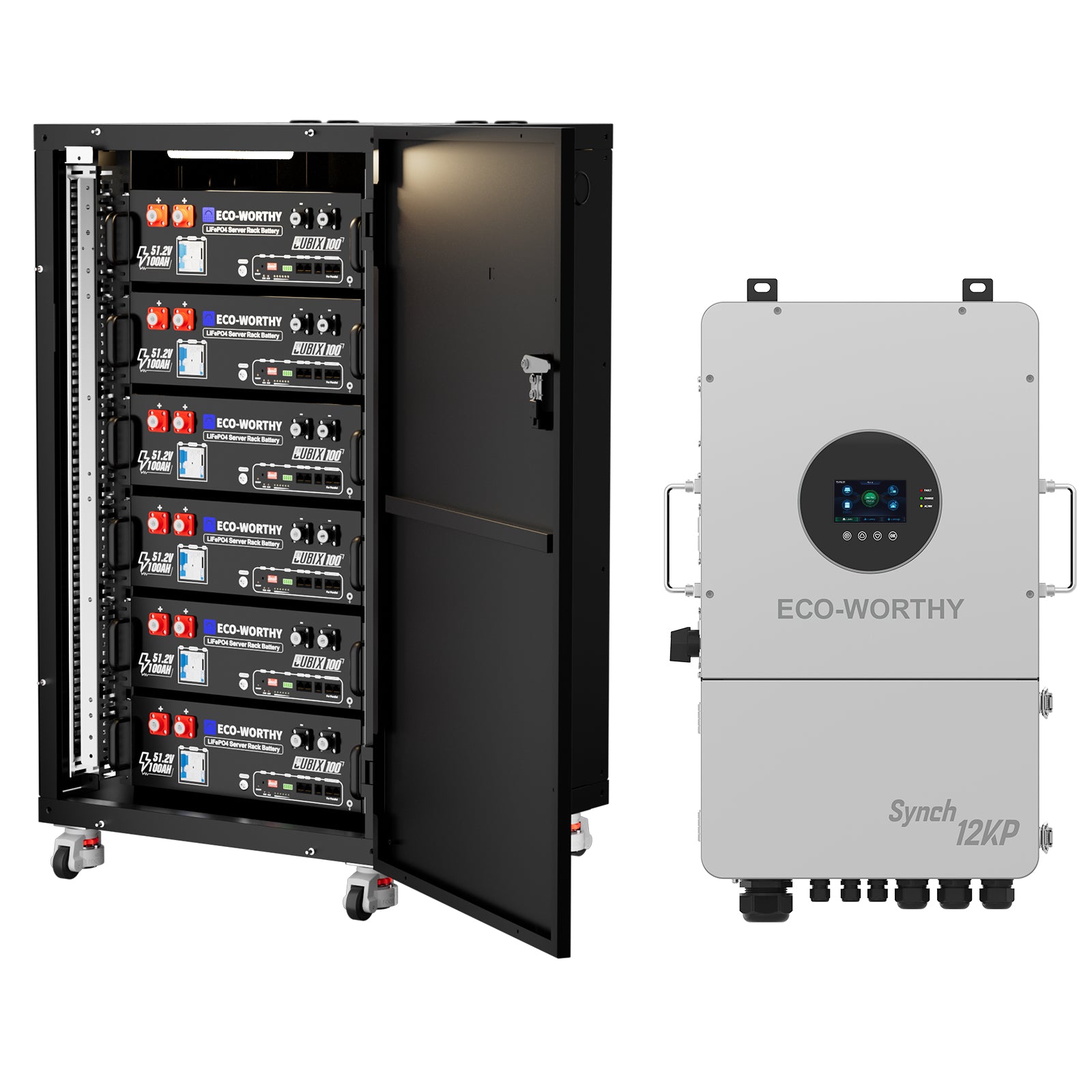

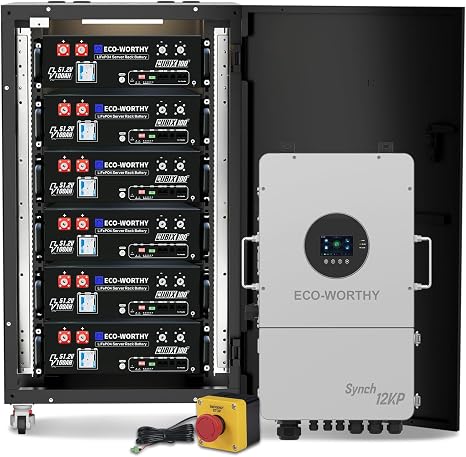

Included in the Box

1.6x48v 100ah Serve Rack Lithium Battery
2.1x12000W Hybrid Inverter
3.1xECO-WORTHY RACK6 V3 Server Rack Battery Cabinet

User manual

ECO-WORTHY 48V 100AH Battery Manual

Download

Eco-Worthy Synch 12KP Split-Phase Solar Hybrid Inverter User Manual

Download

ECO-WORTHY SYNCH 12KP UL1741 ATM CERTIFIED BY INTERTEK

Download

Frequently Asked Questions

What certifications do you hold?

+
Our Eco-Worthy Cubix100 48V 100Ah Server Rack Battery has successfully undergone system-level UL 9540 testing conducted by Intertek, covering both DC and AC systems.

What is the warranty period of the battery?

+
We offer 10-year warranty for 51.2v server rack lithium battery,covering non-human-induced battery failure issues.When you buy this solar kit, you are covered by the full manufacturer warranties on each component. Plus, you’ll receive our lifetime customer and technical support.

What communication methods are supported?

+
Our battery communicate via built-in Bluetooth/WiFi with mobile apps; RS485-1 on the front panel communicates with host computer software, mainstream inverters, and Solar Assistant; CAN interface communicates with inverters; RS232 interface communicates with host computer software.

What kind of battery cells are used?

+
We use 100% A-grade prismatic cells from REPT, ensuring 6000 cycles at 80% DOD.

What safety designs does the battery have?

+
Each battery includes a built-in 100A BMS, a pre-charging circuit, and a 125A short-circuit protection switch on the front panel.

Which inverters can this battery communicate with?

+
Compatible with all major inverters: Victron, Deye, Growatt, Lux Power, Sol-Ark, GoodWe, EG4, SRNE, and more.

Can V3 communicate in parallel with V2?

+
Yes. The DIP switch principles are the same. V2 should be in the first 15 batteries due to DIP limitations; V3 has no such limit.

Do I need to update the JBD software for 32 parallel units?

+
Yes. Please download here: https://app.eco-worthy.com:7778/Download/BMS-Tool&Drive-for-Windows.zip

Does the mobile app need to be updated for 32 parallel units?

+
Yes. Upgrade the "Lithium Battery IoT Cloud" app to version 1.6.6.

Do I need to buy battery cables separately?

+
Each battery includes 1 pair of parallel cables, screws, a grounding wire, and a communication cable — no extra purchase needed.
