2340W 48V (12x Bifacial 195W) Complete MPPT Off Grid Solar Kit

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 2340W 48V expandable MPPT Solar Kit is an ideal choice.
ECO-WORTHY 195 Watt 12V Mono solar panel is backed by 25-year linear power guarantee. ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
All in one inverter Integrated with 80A/48V MPPT solar charge controller, 5000W pure sine wave inverter in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.
ECO-WORTHY 2340W 48V MPPT Solar Kit can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@eco-worthy.com.

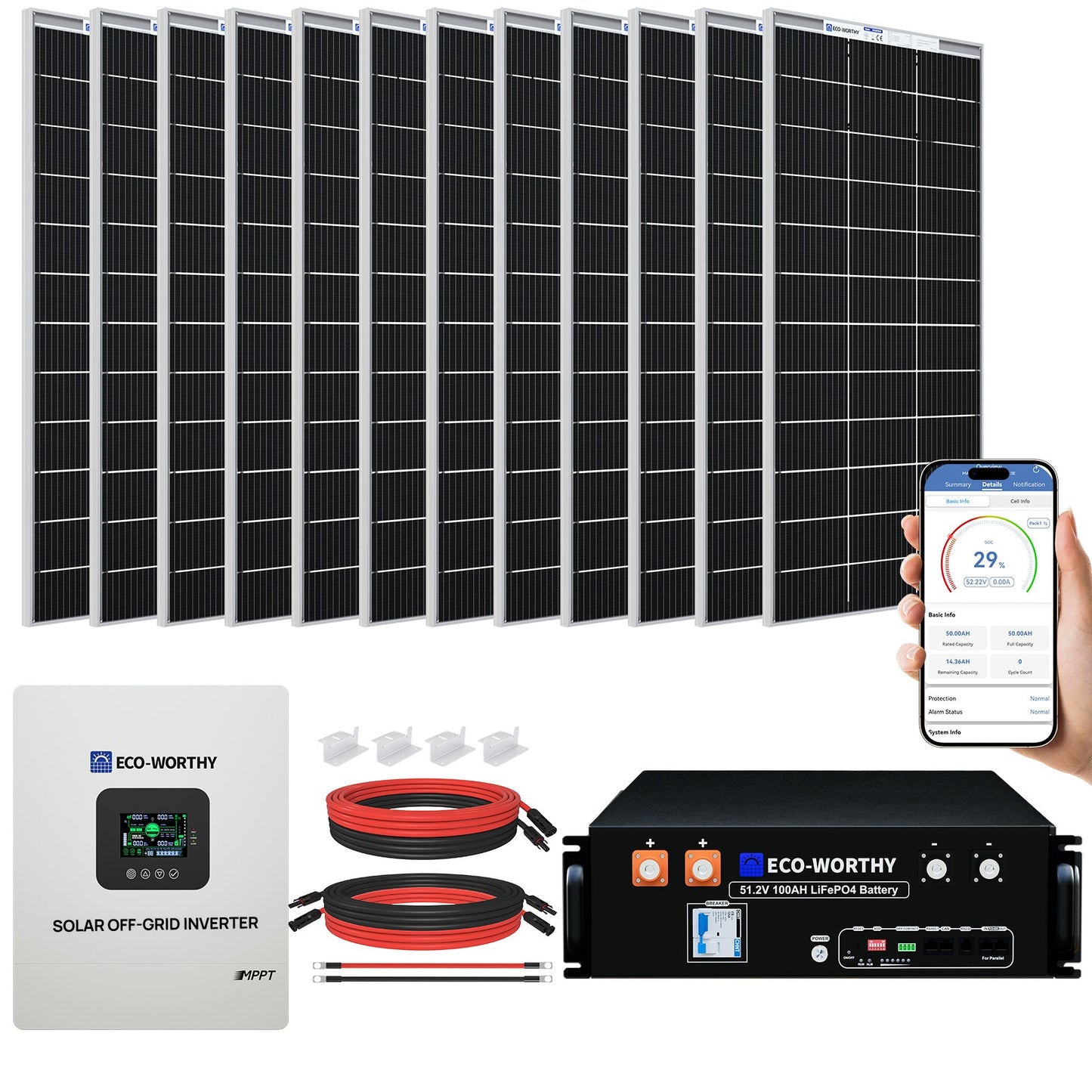

Package Includes
12x Bifacial 195W Mono Solar Panel
1x All-in-one Inverter(5000W 48V Inverter+80A MPPT Controller)
1x 5M 8AWG Extension Cable with MC4
1x 5M 12AWG Solar Cable with MC4
12x Z Mounting Bracket
2x 50Ah 48V Stackable LiFePO4 Lithium Battery
2x 6AWG Battery Interconnect Cable

Bifacial 195W Monocrystalline Solar Panel

Rated Power: 195W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 19.8V	Open Circuit Voltage(Voc): 23.7V
Short circuit current: 10.5A	Maximum current: 9.85A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range: －40℃～ +85℃
Frame: Aluminum alloy frame	Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (1335*670*35mm)

5000W 48V All-in-one Inverter with 80A MPPT

Solar Charging Mode
PV Charging Current Range: 0-80A	MPPT Voltage Range: 120-450VDC
Max Input Power: 4400W	Battery Voltage Range: 40-60VDC
Invert Mode
Output Waveform: Pure Sine Wave	Rated Output Power: 5000W
Rated Output: 120VAC 50Hz/60Hz	Rated Battery Input Voltage: 48V
Peak Power: 10000W
AC/Grid Charging Mode
Rated Input: 110VAC 50Hz/60Hz(auto detect)

50Ah Stackable LiFePO4 Lithium Battery

Battery Capacity: 50Ah	Battery Power: 2560Wh
Rated Voltage: 51.2V	Voltage Range: 40~58V
Maximum Charge/ Discharge Current: 50A	Charge Temperature Range: 0-55℃
Disharge Temperature Range:﹣20－55℃	Maximum Charge Voltage: 58.4V
Battery Size: 17.21*13.11*4.92inch	Battery Weight: 58.42 lbs

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets

8 pieces of stainless steel nuts and cap bolts
