Power your home with the Eco-Worthy Wallbank S100 48V 100Ah wall-mount LiFePO4 battery, engineered for reliable energy storage in any environment. over 6,000 cycles, and flexible wall or floor installation. Stay in control with Bluetooth and WiFi monitoring. Equipped with a smart BMS, 125A breaker, and integrated fire suppression, it delivers maximum safety and stable performance—backed by a 10-year warranty for long-term peace of mind.
The Best Home Energy Storage Solution

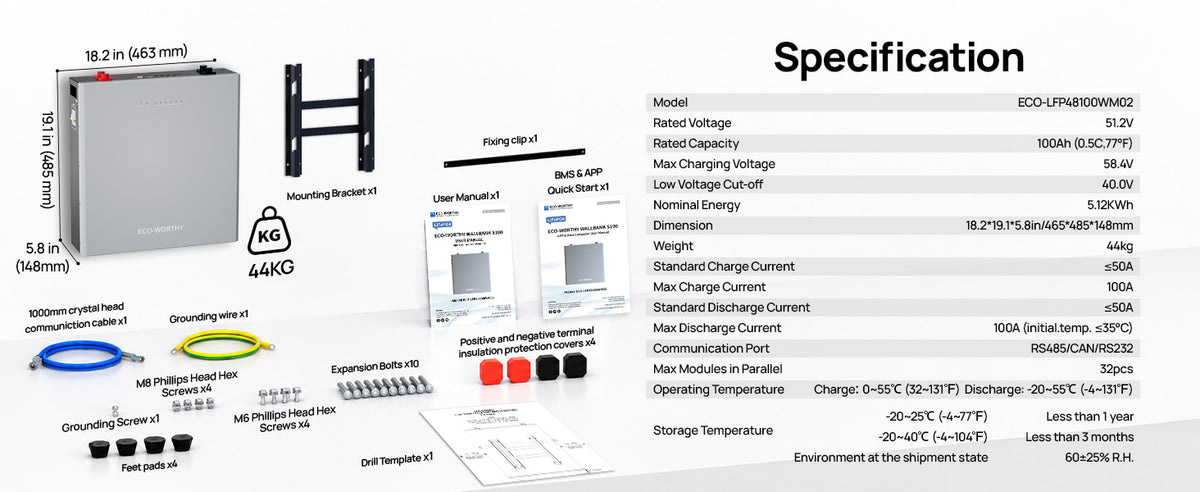

Technical Specifications
48V 100AH Wall-Mount Lithium Battery
Items
ECO-LFP48100WM02
Rated voltage
51.2V
Max.voltagerange
58.4V
Low voltage cut-off
40.0V
Nominal energy
5.12KWh
Usable energy
5.12KWh
Nominal capacity
100Ah
Dimension
18.2*19.1*5.8in/463*485*148mm
Weight
97lbs/44kg
Standard charge current
≤50A
Max.charge current
100A
Standard discharge current
≤50A
Max.discharge current
100A(initialtemp.≤35°C)

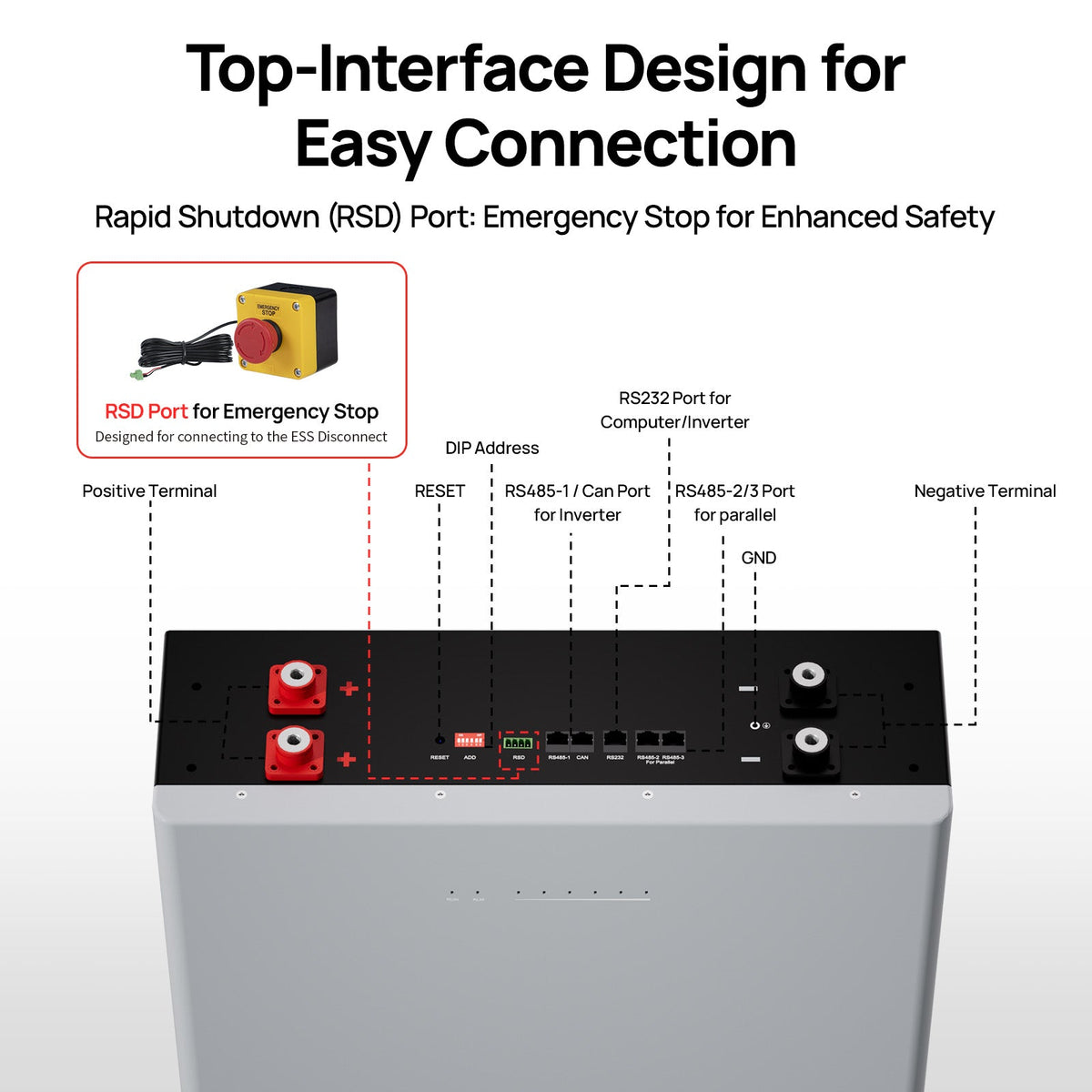

Communication port
RS485/CAN/RS232
Max.parallel number
32pcs
Rated capacity
100Ah(0.5C,77°F)
Operating temperature
Charge: 0~55°C(32~131°F);Discharge: -20~55°C(-4~131°F)
Cycle Life
≥6000 cycles @ 25 °C, 0.5C charge / 0.5C discharge, ≥80% SOH
Warranty
10 Years

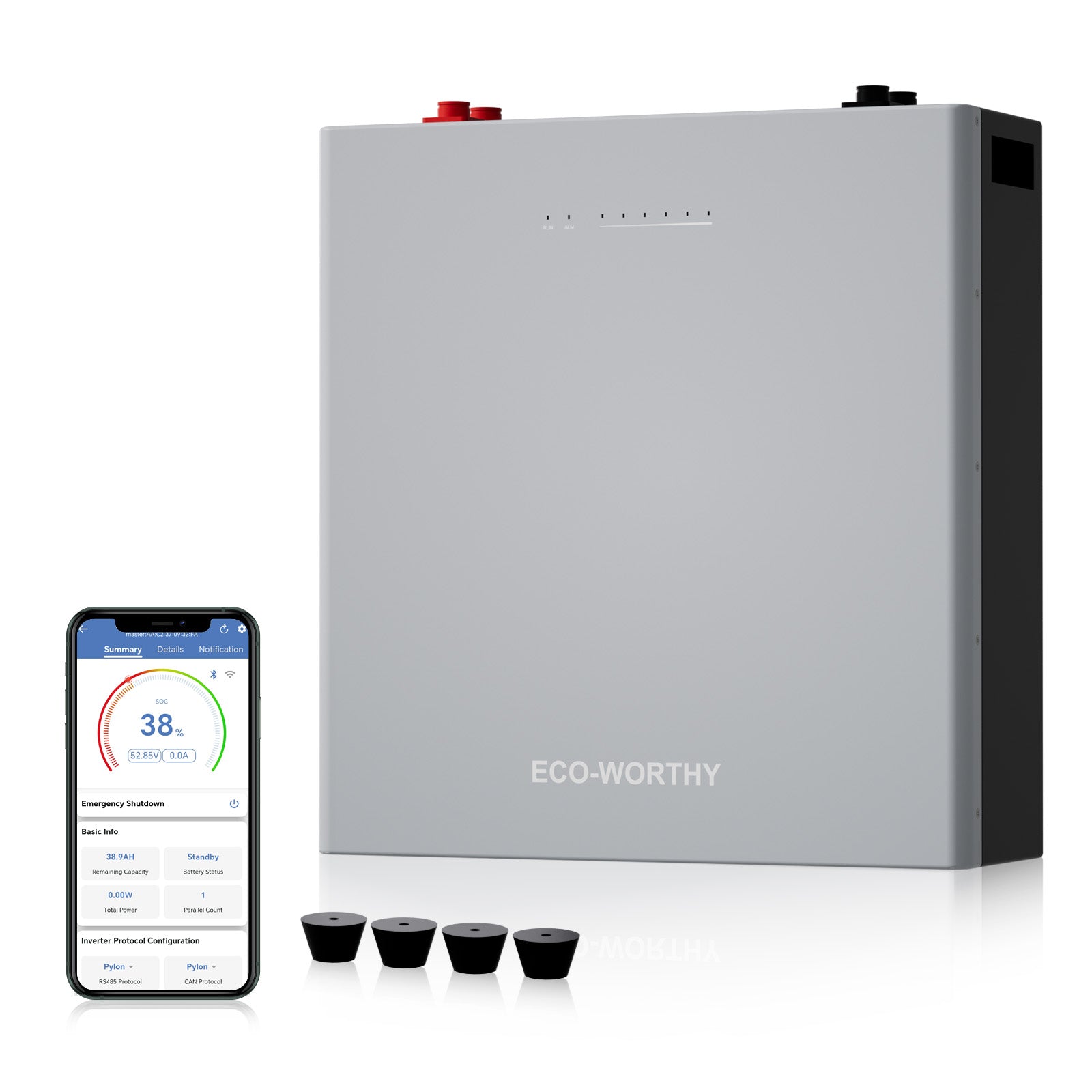

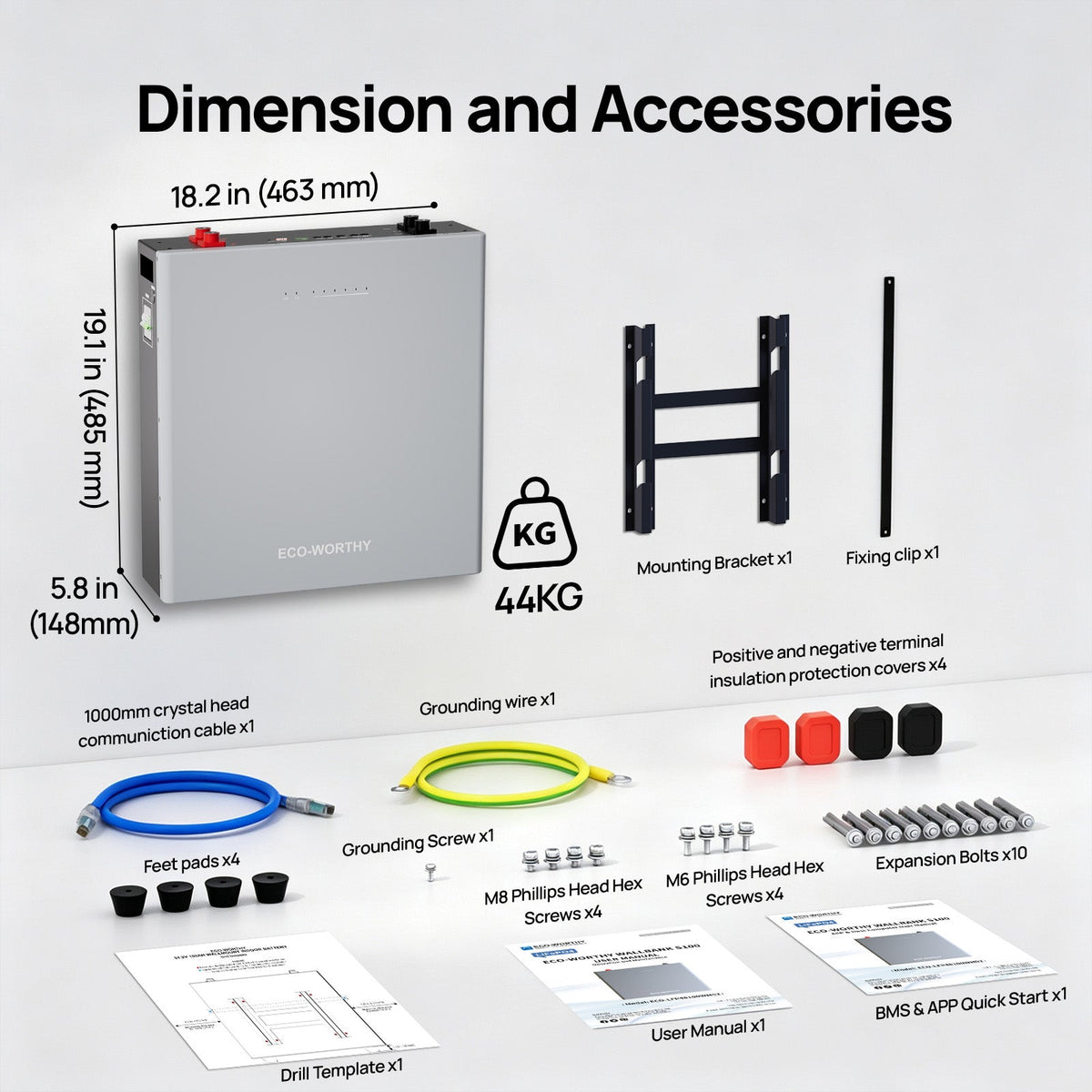

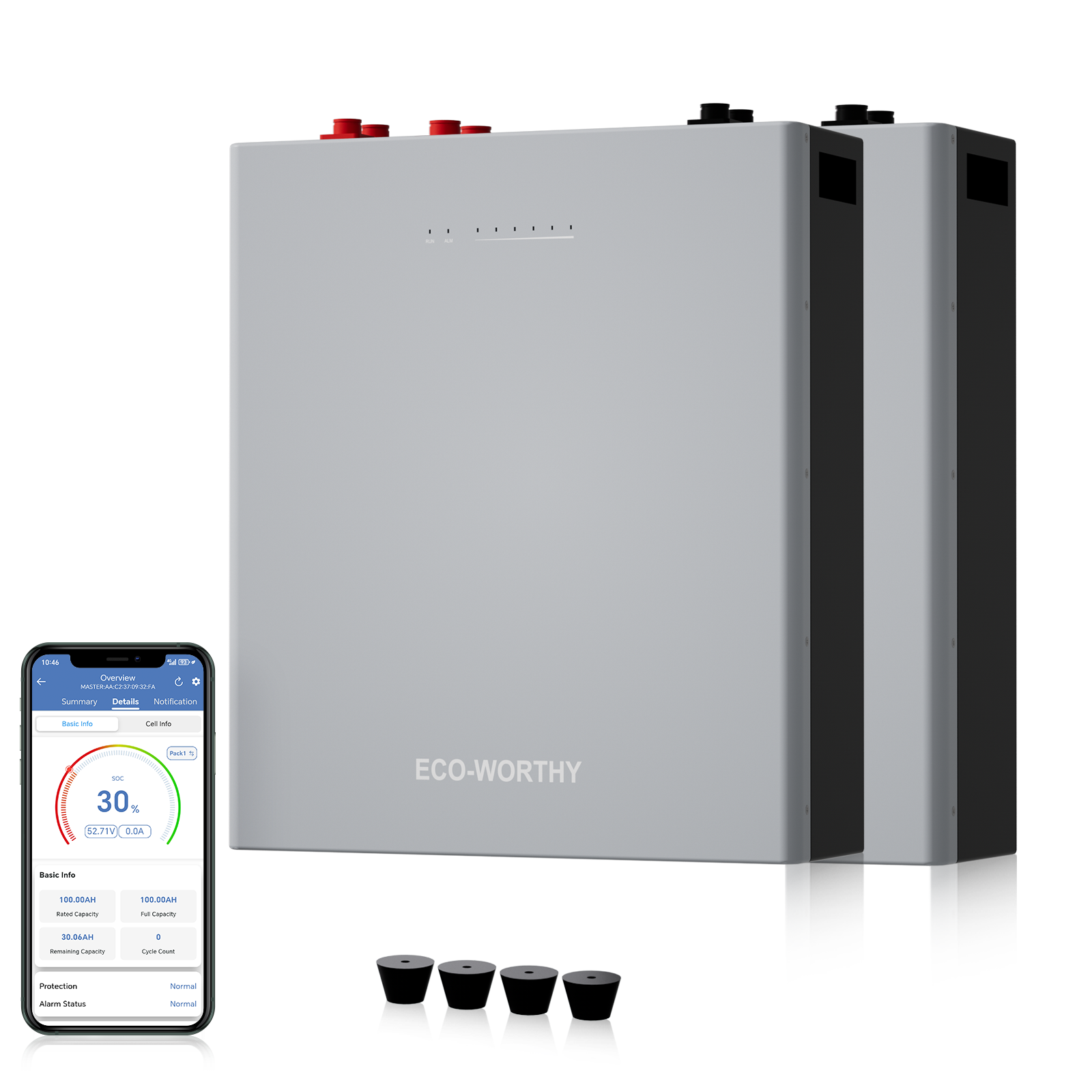

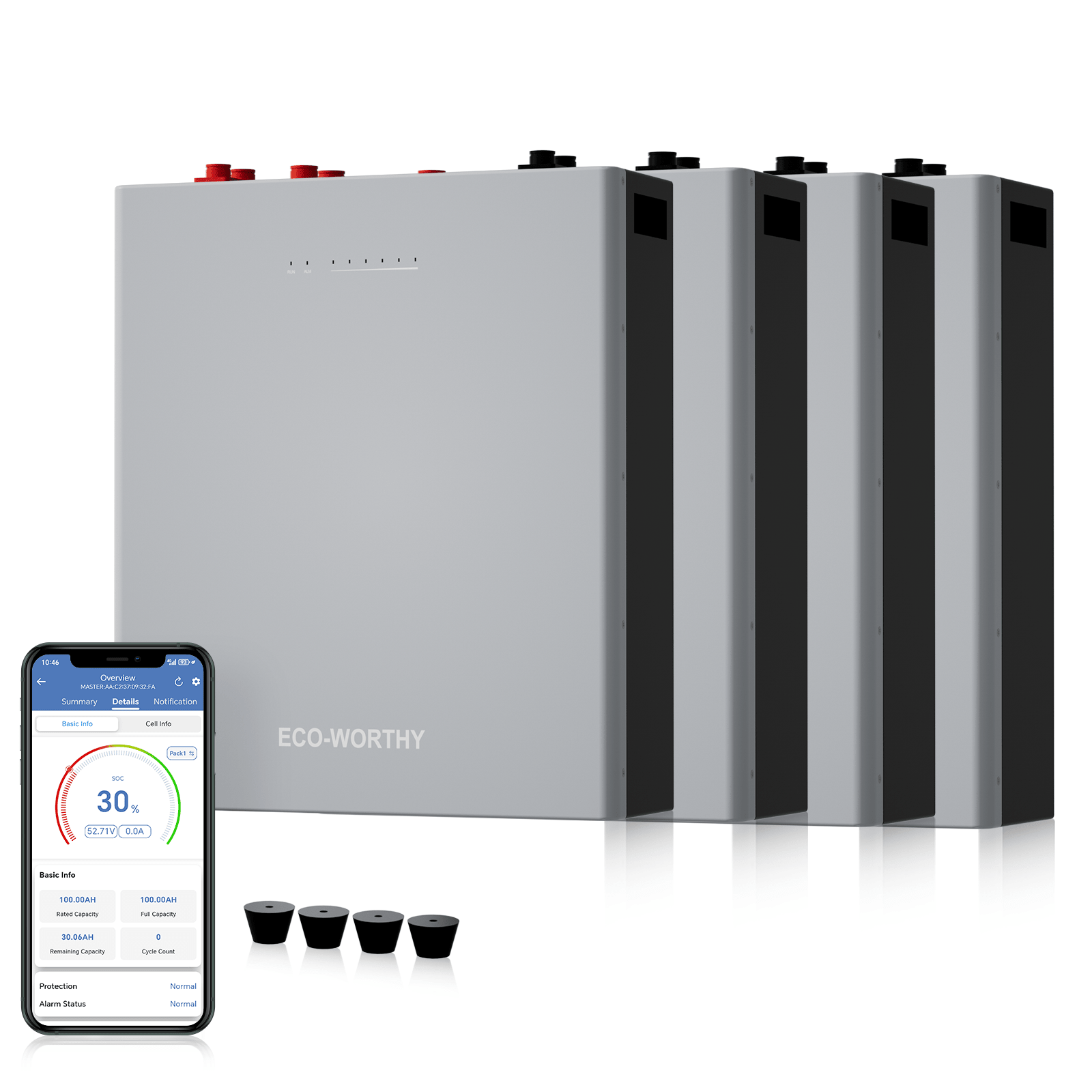

Included in the Box
Frequently Asked Questions
How much energy does one WallBank S100 provide, and can I add more batteries later?
+
Each WallBank S100 provides 5.12 kWh of usable energy. You can connect up to 32 batteries in parallel, giving you the flexibility to start with one battery and expand your system as your backup-power needs grow.

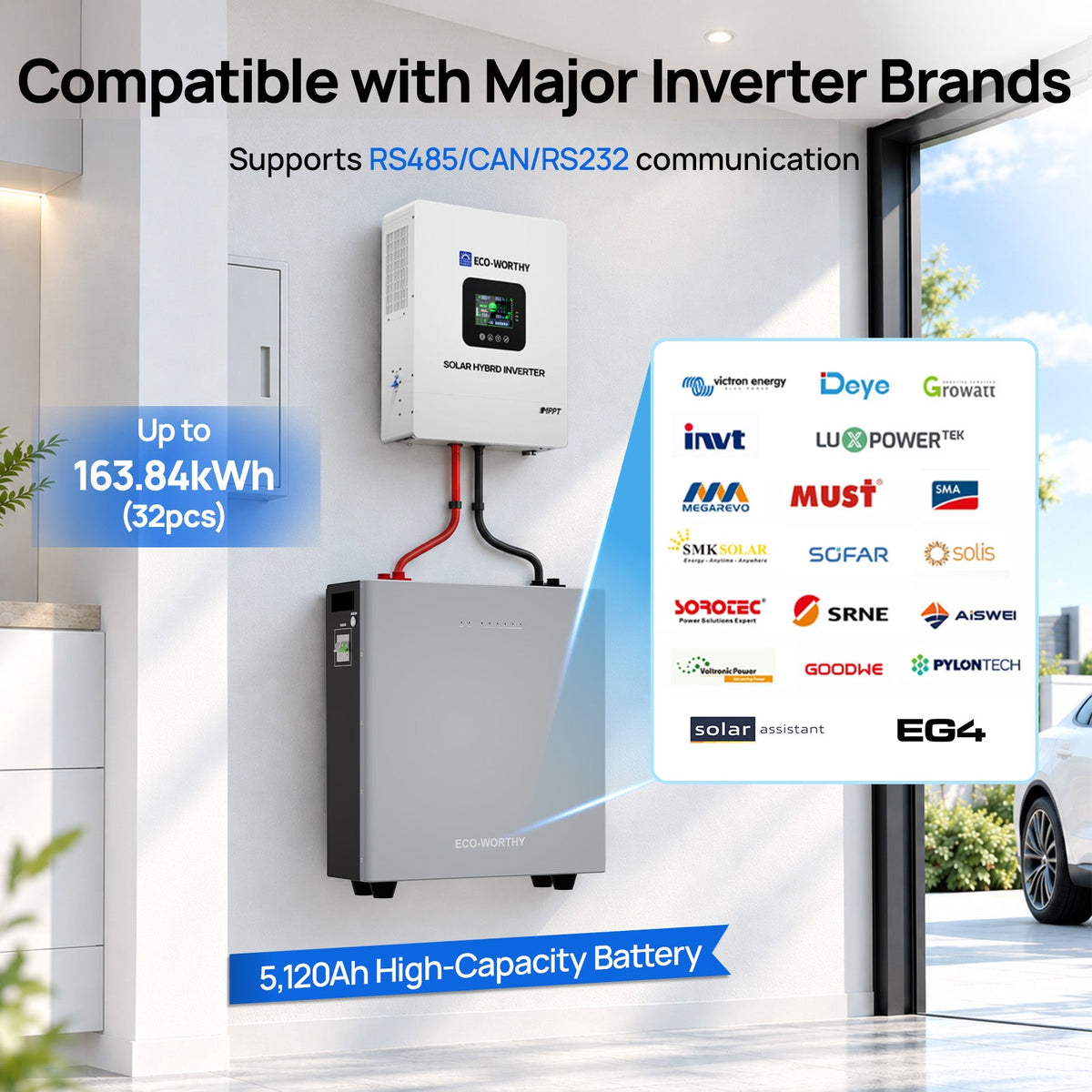

Will the WallBank S100 work with my 48V inverter?
+

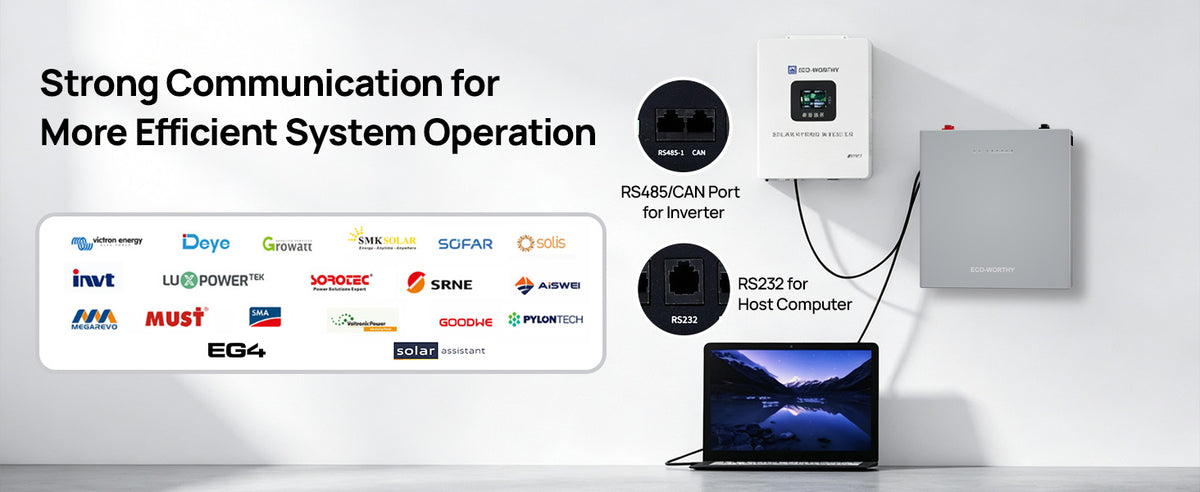

The WallBank S100 is designed for 48V battery systems and supports CAN, RS485, and RS232 communication. It is compatible with many commonly used 48V solar and off-grid inverters. For closed-loop communication, check that your inverter supports the battery’s communication protocol or contact ECO-WORTHY before ordering.

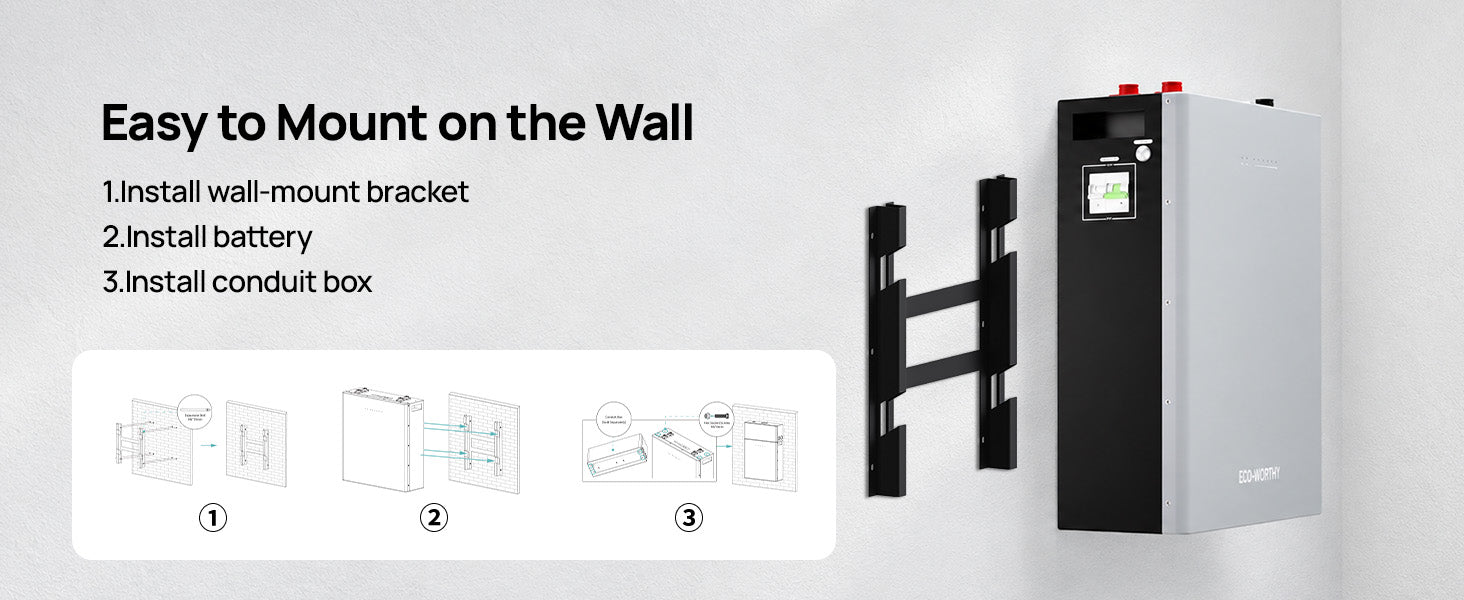

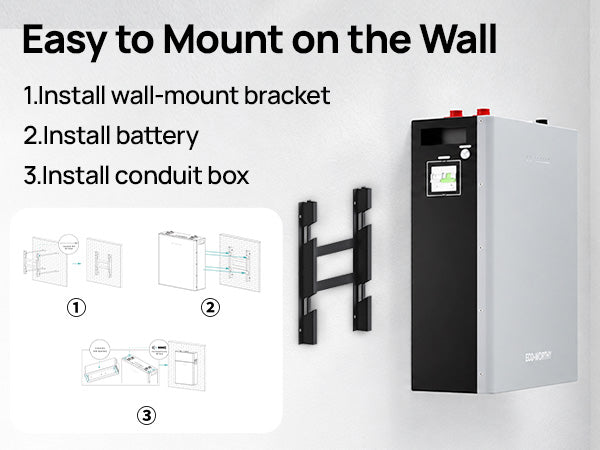

Can I install the battery on the wall or place it on the floor?
+

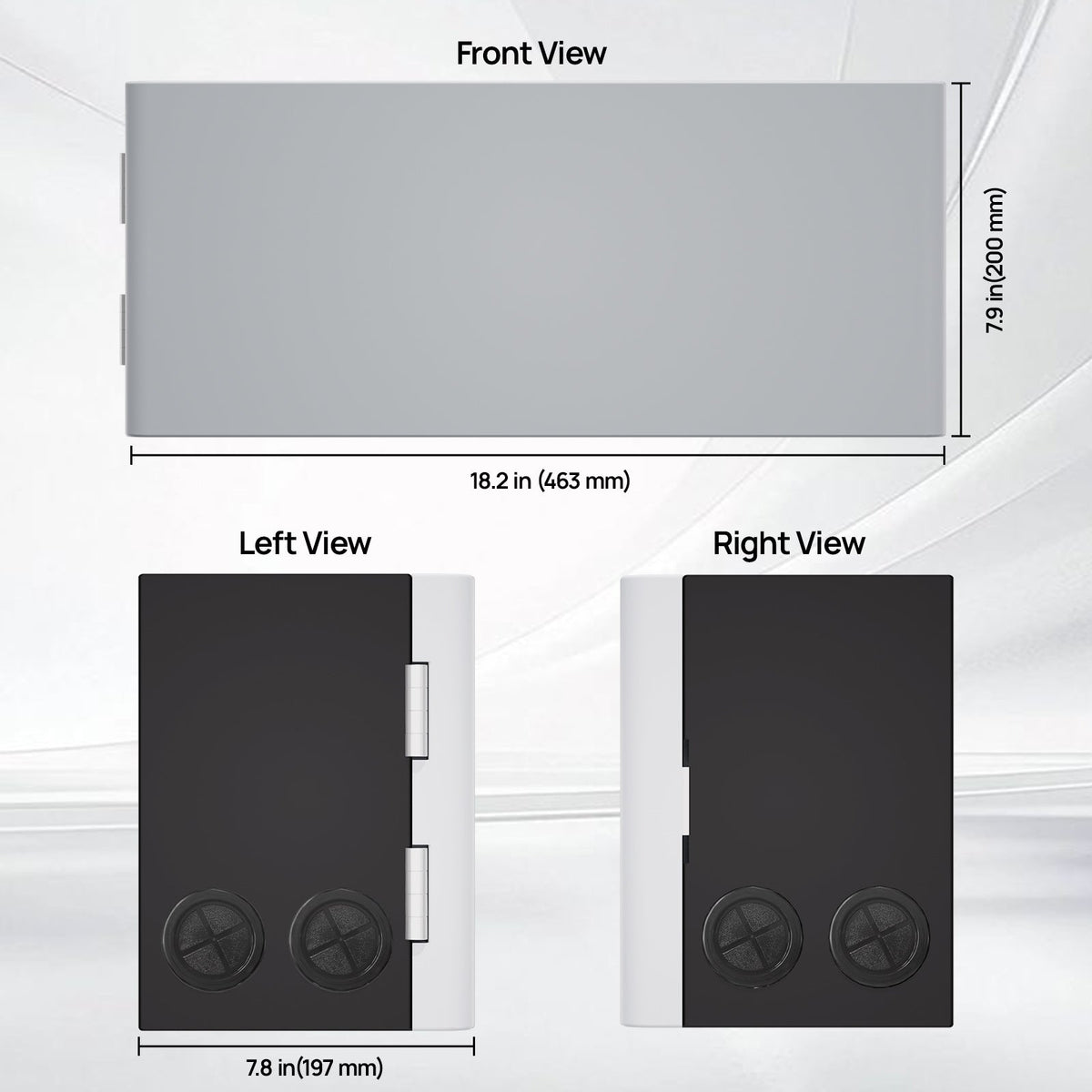

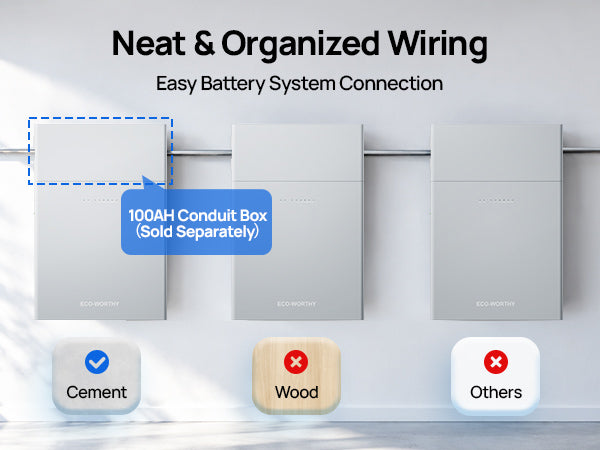

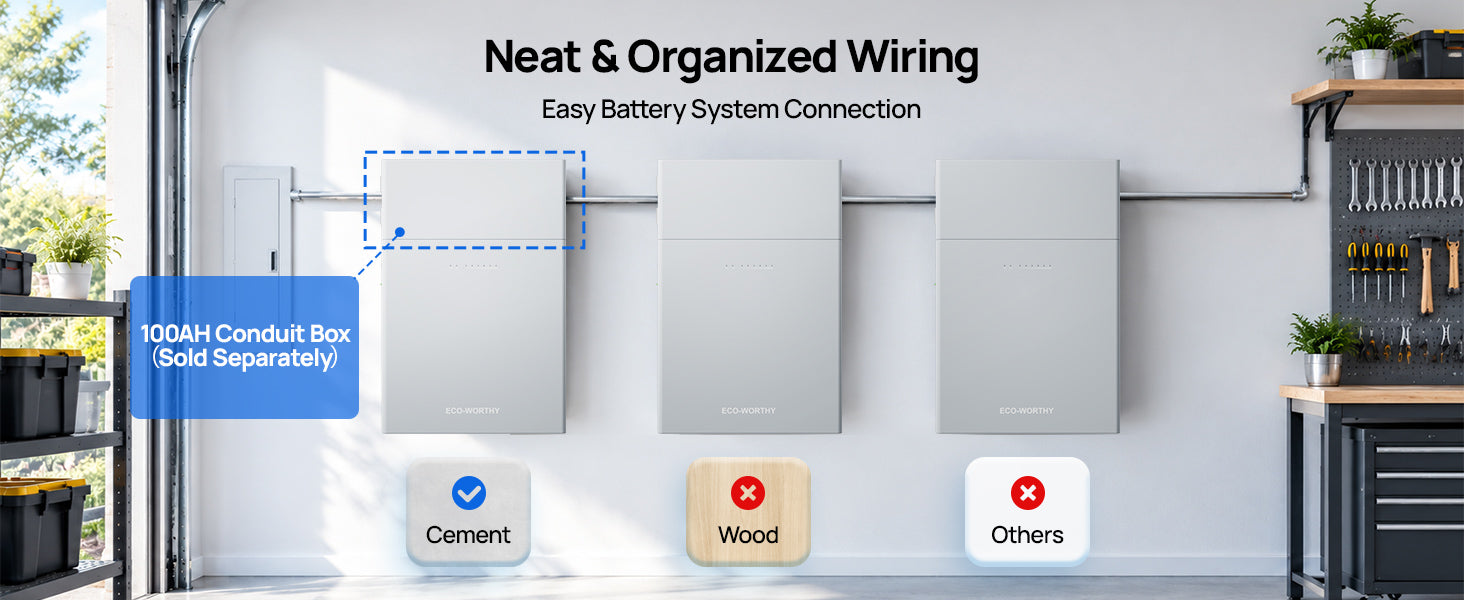

Yes. The WallBank S100 supports both wall-mounted and floor-standing installation. It measures 18.2 × 19.1 × 5.8 inches and weighs approximately 97 pounds, so secure mounting and at least two people for handling are recommended. Please note that the conduit box is sold separately unless it is specifically included in the selected package.
How can I monitor the battery, and what safety protections are built in?
+

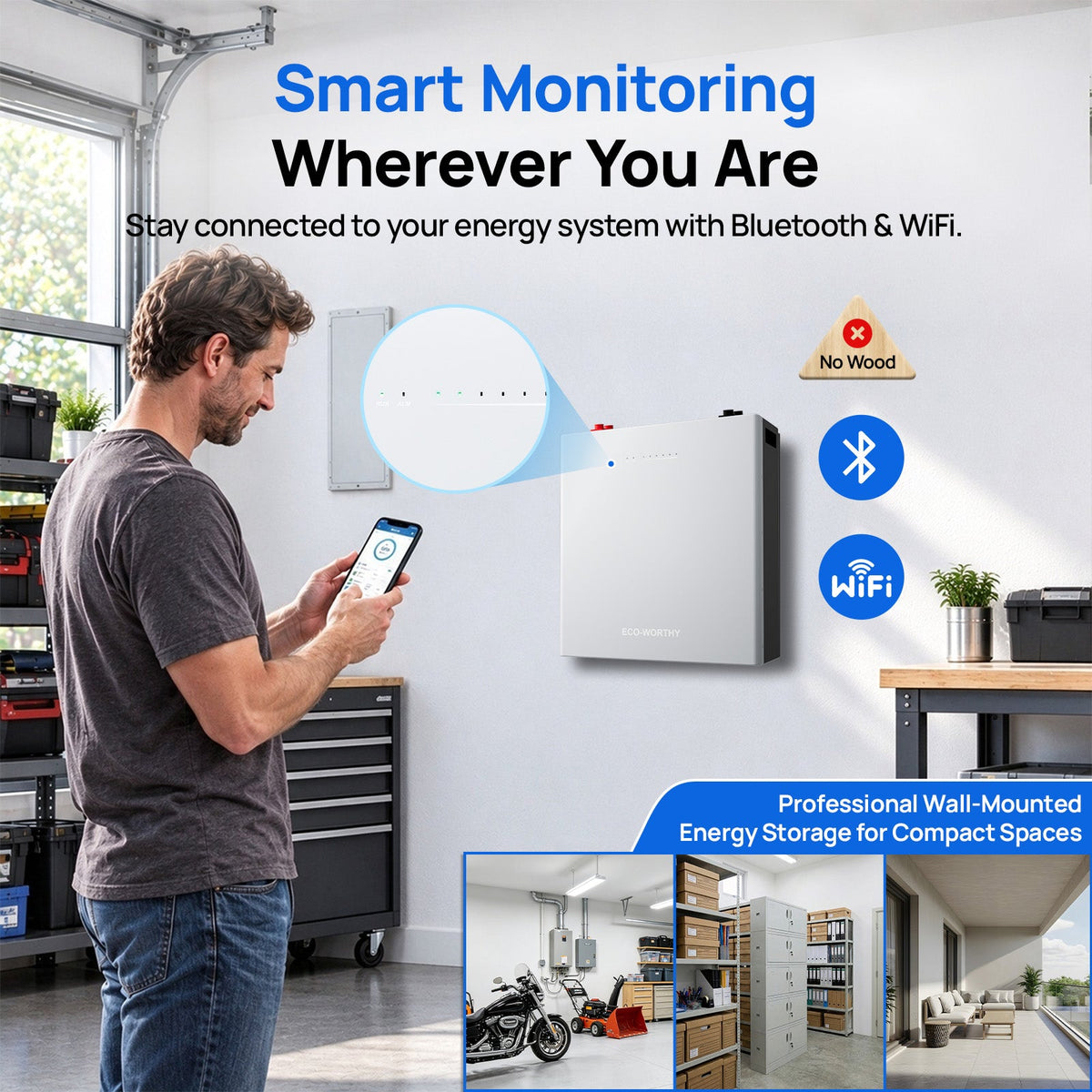

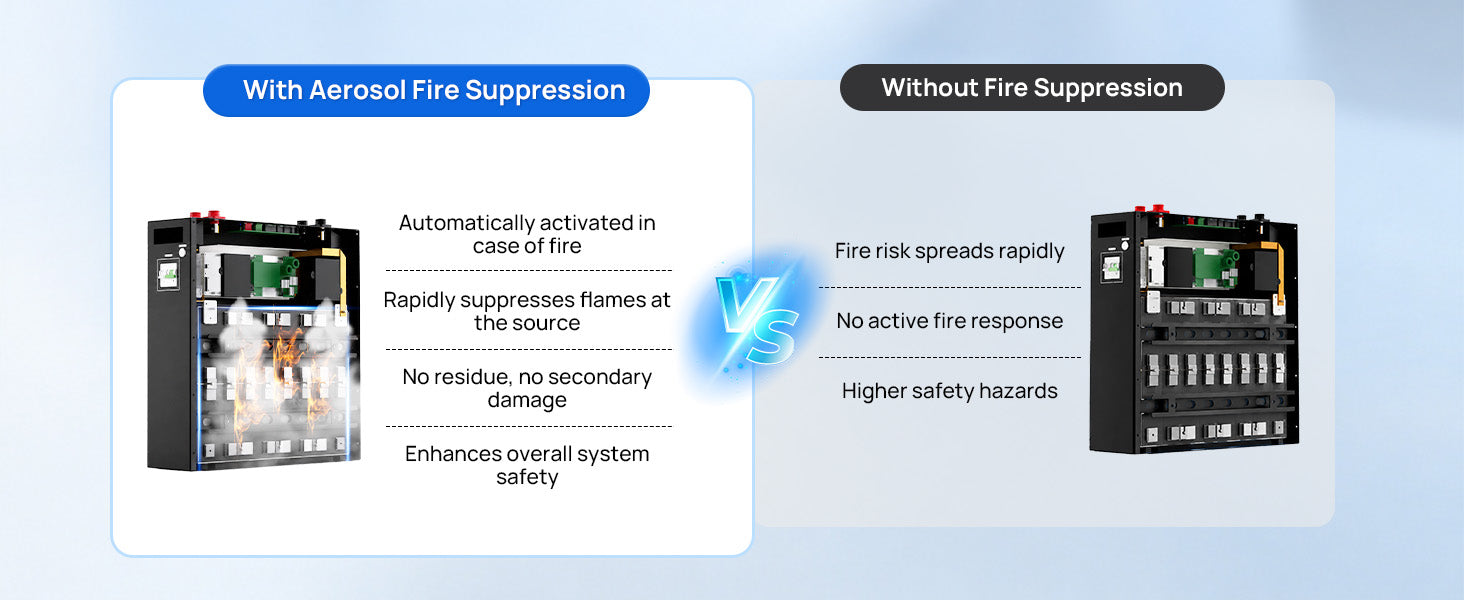

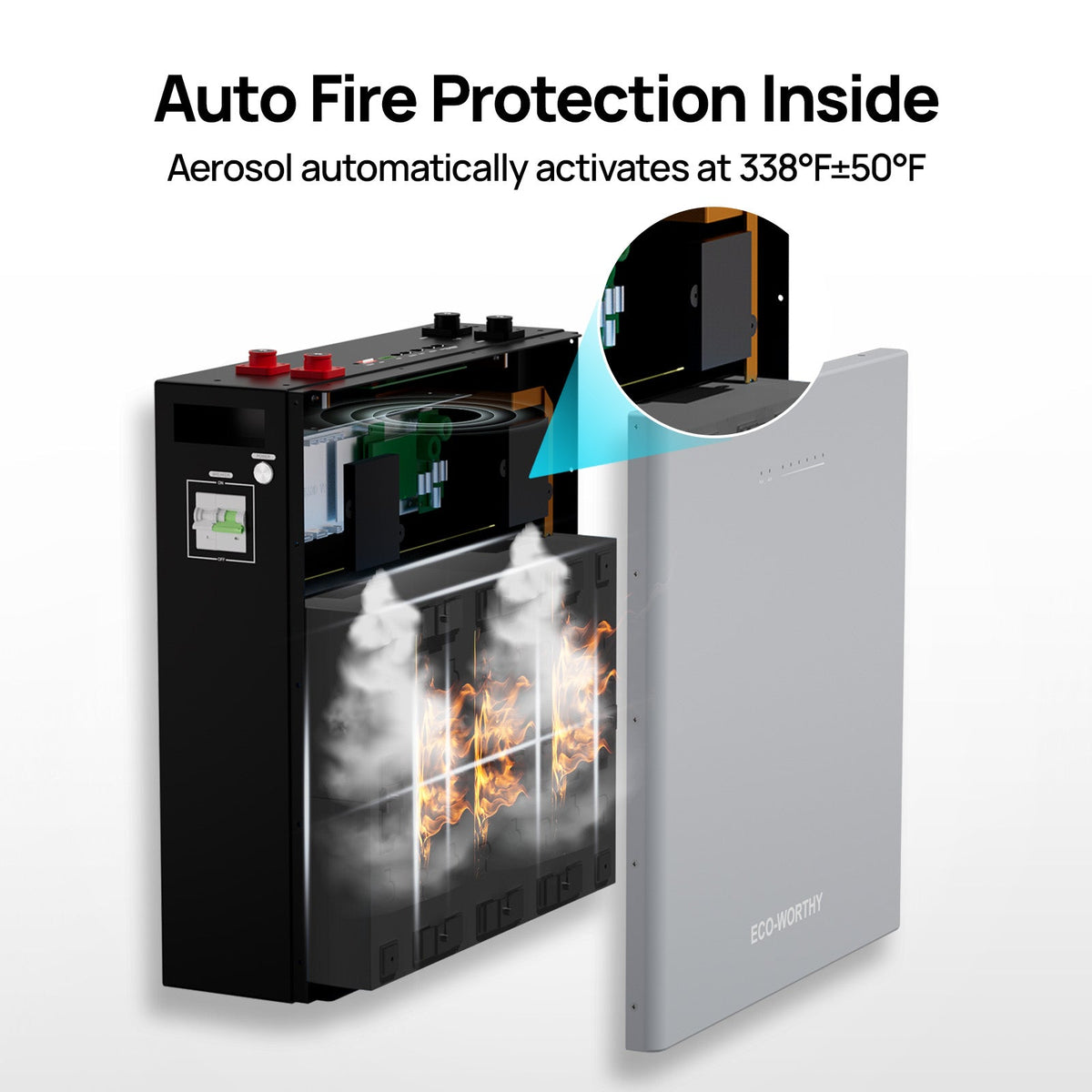

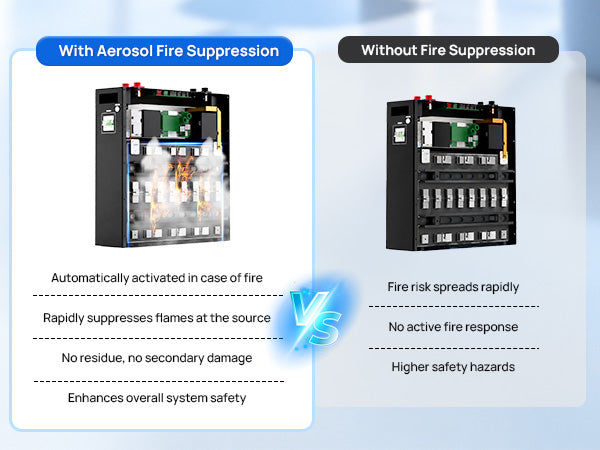

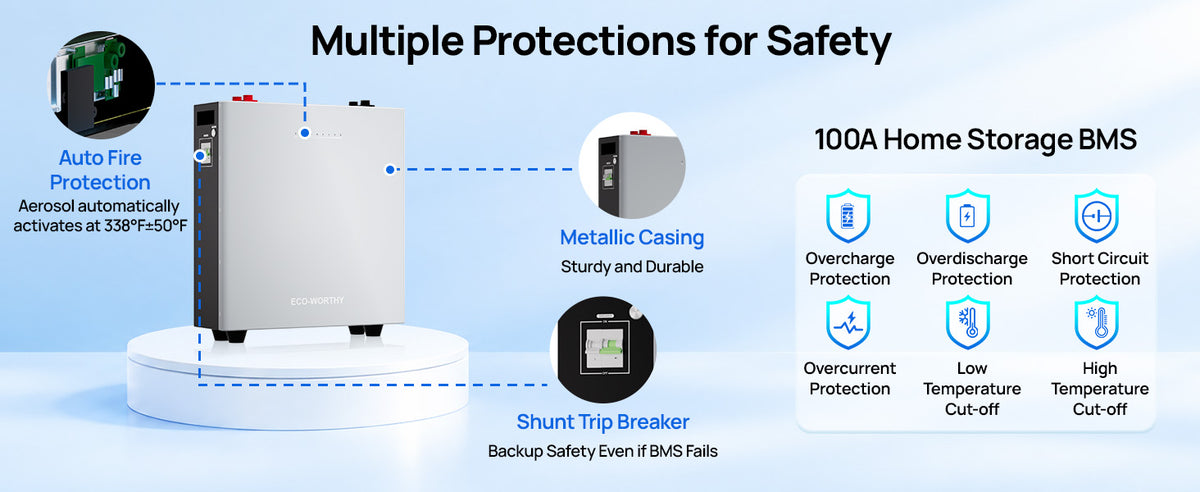

Built-in Bluetooth and Wi-Fi let you monitor battery status through the mobile app. The battery also features a smart BMS, a 125A circuit breaker, a pre-charge circuit, a heavy-duty metal enclosure, and an integrated aerosol fire-suppression module for multiple layers of protection.
How long will the WallBank S100 last, and what warranty does it include?
+

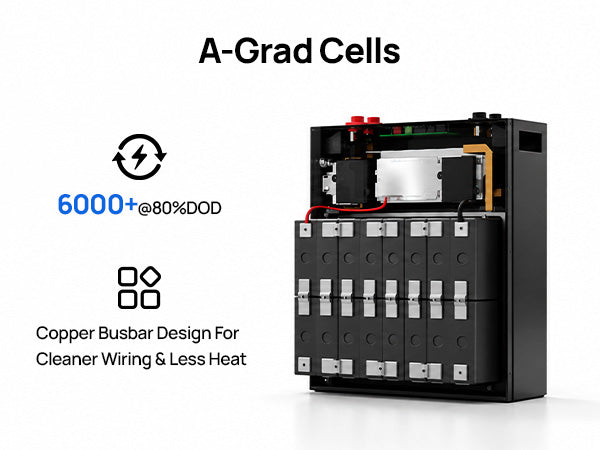

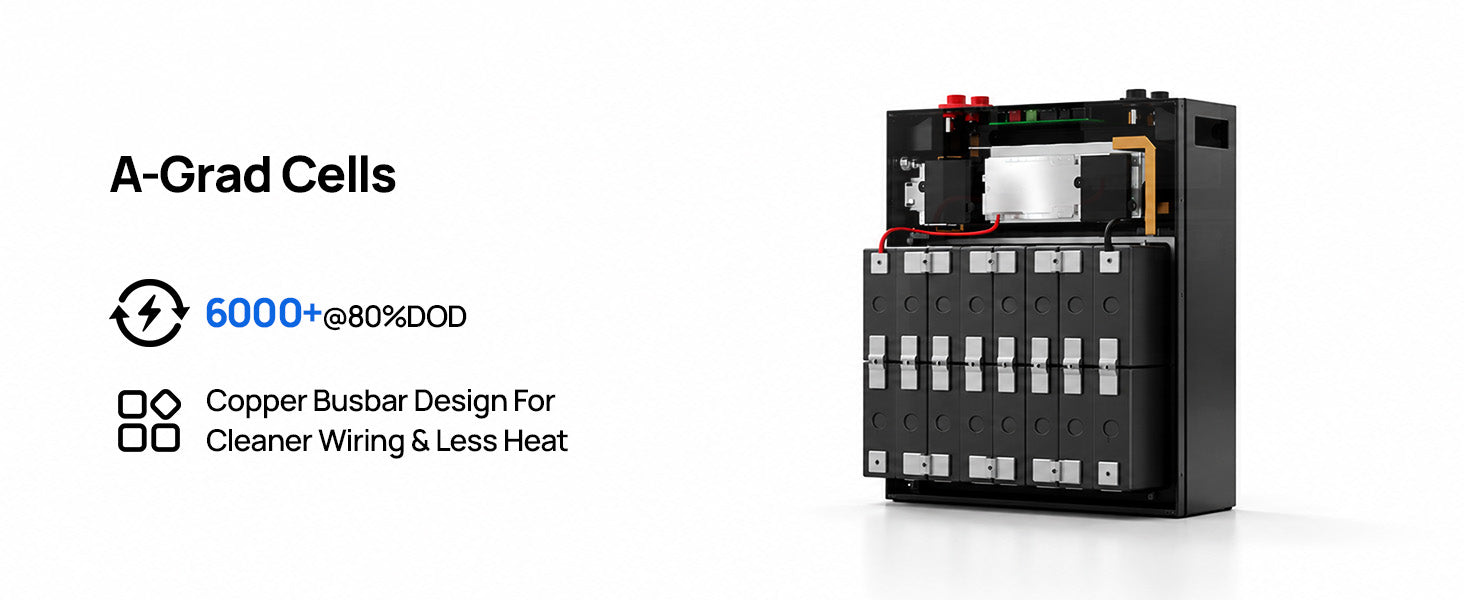

The Grade A LiFePO₄ cells are rated for at least 6,000 cycles while retaining 80% state of health under the specified test conditions. The battery includes a 10-year limited warranty and lifetime technical support. Its specified operating range is 32°F to 131°F for charging and −4°F to 131°F for discharging.
