If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 130W 260W 520W 12V expandable Solar Kit is an ideal choice. ECO-WORTHY 130 Watt 12V Flexible Mono solar panel is backed by 25-year linear power guarantee. ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
ECO-WORTHY 130W 260W 520W 12V Solar Kit can be used for several different purposes, including cottages, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. Run a small stereo, laptop computer, cell phone charger, lights or TV. These size systems need conscious conservation of energy. If you have any questions regarding this product, please contact us info@eco-worthy.com.
Package Includes
130W (1-Panel) 12V Solar Kit
1x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x 1.5M Tray Cable
Inverter & Battery Options-
Complete Kit (optional)
1x 600W 12V-220V Pure Sine Wave Inverter
1x 50Ah 12V LiFePO4 Lithium Battery
260W (2-Panel) 12V Solar Kit
2x 130W Flexible Mono Solar Panel
1x 30A PWM Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Y MC4 Connector
1x 1.5M Tray Cable
Inverter & Battery Options-
Complete Kit (optional)
1x 600W 12V-220V Pure Sine Wave Inverter
1x 50Ah 12V LiFePO4 Lithium Battery
520W (4-Panel) 12V Solar Kit
4x 130W Flexible Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
1x Y MC4 Connector
1x 1.5M Tray Cable
Inverter & Battery Options-
Complete Kit (optional)
1x 1100W 12V-220V Pure Sine Wave Inverter
1x 100Ah 12V LiFePO4 Lithium Battery

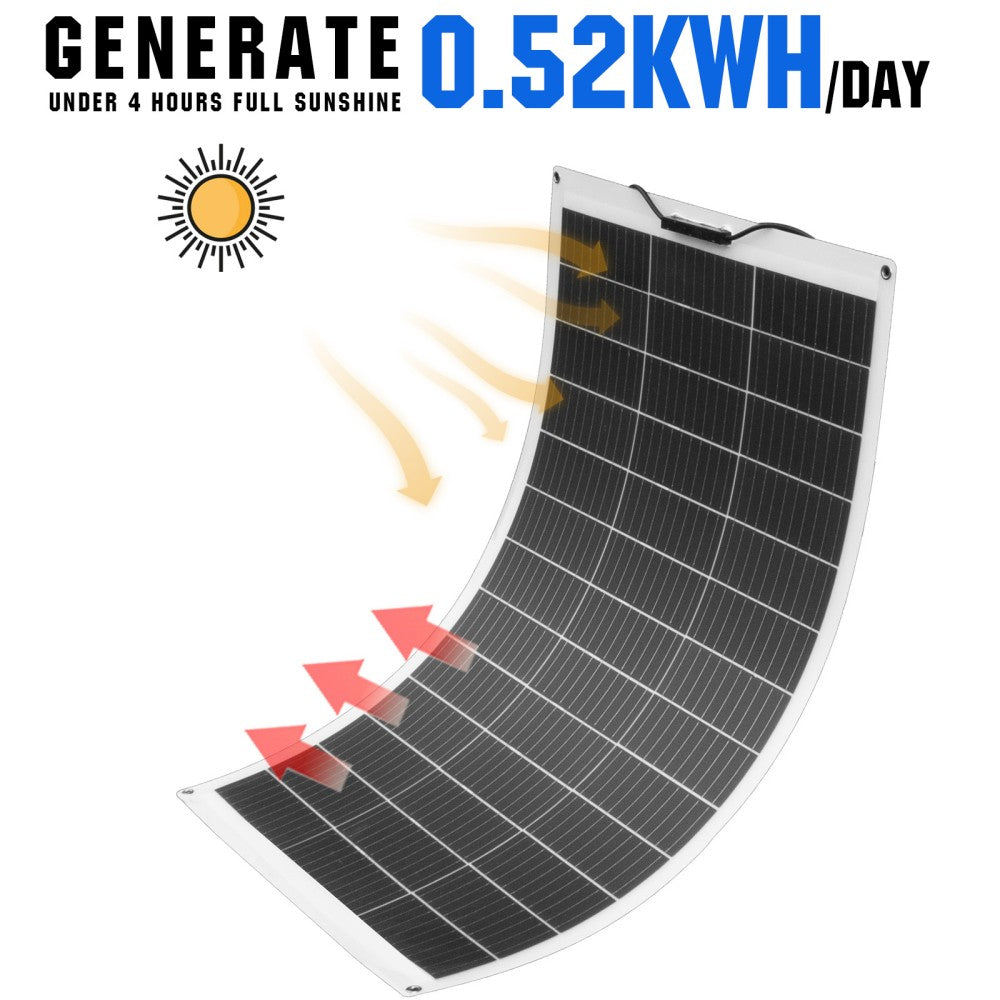

130W 12V Flexible Mono Solar Panel
| Rated Power: 130W |
Solar Cell: Monocrystalline |
| Maximum/Peak Voltage(Vmp): 21.10V |
Open Circuit Voltage(Voc): 24.50V |
| Short circuit current: 6.50A |
Maximum current: 6.16A |
| Output Tolerance: ±3% |
Temperate coefficient of Isc: (010+/-0.01)%/℃ |
| Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ |
Temperature range: －40℃～ +85℃ |
| Length of extension cable: 90cm（2.95ft） |
Size of extension cable: 4mm²（11AWG）/MC4 Connector |
| Weight: 4.40 lbs(2.0 kg) |
Size: 960x690x2.5 mm (37.8 x 27.16"x 0.1 in) |

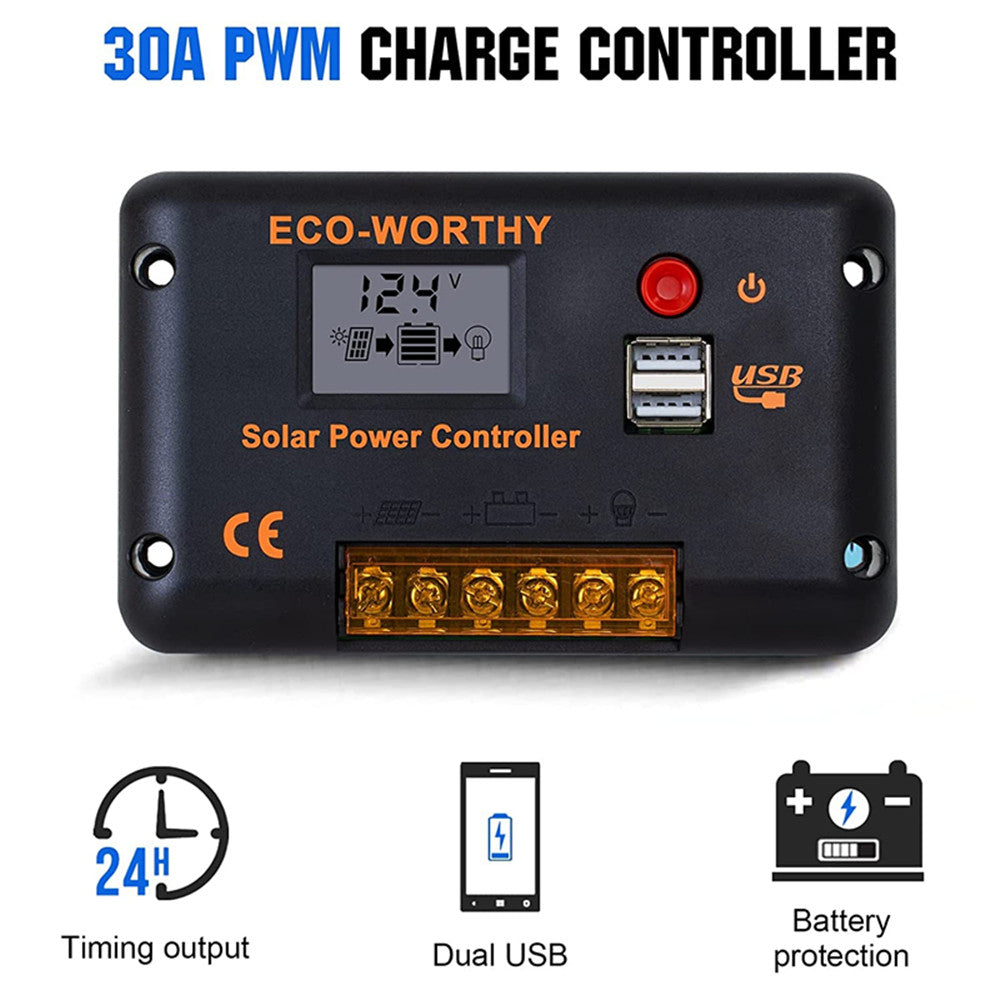

30A PWM Solar Charge Controller
| Battery voltage: 12V/24V |
Charging mode: PWM |
| Max Charge current: 30A |
Discharge current: 30A |
| Max.PV Open-Circuit Voltage: <50V |
USB Output: 5V/2A |
| Working Temperature: -20℃~60℃ |
Weight: 150g |
| Size: 138*82*30mm |
|
40A MPPT Solar Charge Controller
| Battery voltage：12V/24V |
Max Solar Input Power：560/1120W |
| Charging mode：MPPT |
Rated Load Current：20A |
| Charge Efficiency (Peak)：97% |
Self-Consumption：1~2W |
| Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded |
Size：220*148*64mm/8.7*5.8*2.5inch |
| Max Charge current：40A |
Weight：1.5KG |
| Max.PV Open-Circuit Voltage：<100V |
|
600W 12V Off Grid Inverter
| Rated Output Power: 600W |
Surge Output Power: 1000W |
| Rated Output Voltage: 120Vac ± 1% |
Output Freq.: 60Hz ± 0.2Hz |
| Waveform: Pure Sine Wave |
Total Harmonic Distortion: < 3% |
| Input PV Voltage Range: 10V-15V |
Efficiency: > 85% |
| No Load Current Draw: 0.85A |
Low Battery Alarm: 10.7V |
| Low Battery Shut-Down: 10V |
Dimension (L x W x H): 12*6.77*2.95 inch |
| Weight: 2.5kg (5.5 lbs) |
|
1100W 12V Off Grid Inverter
| Output Continuous Watts(W): 1100W+18W USB |
Surge Capacity (PeakPower): 2200W |
| Rated Input DC (V,A): 12V Battery, 100A |
Input Voltage Range: 10.5-16Vdc±0.3V |
| Rated Frequency (Hz): 50Hz±1 |
Rated Output AC (V,A): 230Vac±10%, 4.8A |
| Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max) |
No Load Current: <1A |
| Optimum Efficiency: 85% min |
Fuse (A): 30A*4 |
| FuseType: Internal Blade |
Output Wave Form: Pure Sine Wave |
| Touch Temperature: 65℃(149℉)max |
Operating Temperature: -20℃~40℃ (4℉~104℉) |
| Operating/Storage Humidity RH: 5~95% |
Cooling System: Thermo Fan |
| THD: <4.5% |
Dimensions (L*W*H): 13.5*9.8*4.1 in |
| Assembled Weight (kg): 7.67 lbs |
|
100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100ah |
Battery Power: 1280Wh |
| Battery Voltage: 12.8V |
Maximum Charge/ Discharge Current: 100A/100A |
| Charge Temperature Range: 0-45℃ |
Disharge Temperature Range:﹣20－55℃ |
| Maximum Charge Voltage: 14.6V |
Discharge Cut-Off Voltage: 10V |
| Screw size: M8 |
Battery Size: 260*168*209mm（10.2*6.6*8.2inch） |
| Battery Weight: 9.47kg |
|
16.4 feet 12AWG Cables
| Cable Type: Connecting Solar Panels to Charge Controller |
Rating Voltage: 600/1000V |
| Length: 5 meters（16 ft） |
Conductor: Tinned copper wire |
| AWG: 11 |
Normal Cross Sectional Area of the Conductor (mm2): 4 |
| Waterproof: IP 65 Protection |
Temperature: -40°F to +185°F |
| Connector: MC4 |
Weight: 0.742KG |
Y Branch Cable MC4 Connectors
| Compatible with MC4 solar connector. |
Easy installation for 2 solar panels connected in parallel. |
