10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS
10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS
SKU: L02M195TM-NK5KWUSL2240-52
Super-High Capacity & 10+ Years' life Batteries With 10240Wh of 4pcs 48V 50Ah Metal Shell lithium batteries, which have higher charging/discharging efficiency and more than 3000 times deep cycles than lead acid batteries. Built-in BMS chips(battery management system), can also prevent the battery from getting damaged and provide multi-protections.Metal Shell,defense of all potential risk.Much Safer,prevent Fire, Spike,Explosion, Crash.
Reliable UPS Function Composed of 5000W 48V DC-110V AC pure sine wave inverter and 80A MPPT controller. Not only can it be used off-grid, but when there is no sunlight, it can also receive electricity from the grid to charge the battery to meet all-weather use, which will protect appliance life with no electromagnetic pollution and has 99.9% high efficiency power.You can remotely monitor the running status of the system through APP.
Multifunctional split phase hybrid inverter 5000W 48V DC-110V AC All-in-one inverter built in 80A MPPT controller. Supports carrier without battery and grid connection. It can directly convert photovoltaic energy into direct current for DC load when there is no battery or battery is full. Supports free setting of charge and discharge time, avoid the peak of electricity consumption. Supports a maximum of 6 devices in parallel. Configure WiFi module to dynamically monitor the screen.
The 410W solar panels are so large that they can only be shipped on pallets. They also need to be returned on pallets.Due to the high return cost, the buyer needs to bear the return cost themselves unless there is a quality issue with the product. Please purchase with caution!
Member Day Sale: Save 30% OFF
From: 18th-30th,June.
Code:
Copy CodeCouldn't load pickup availability
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/01_35390c23-7be5-4910-840d-80b44f47a01a.jpg?v=1718689979&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/02_b886e078-5546-441c-8bf6-1b96b516a7c2.jpg?v=1718690174&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/07_6c09ae84-6c8e-4afd-bc15-f40c5584aeff.jpg?v=1718690172&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/06_719db2bd-84ea-46d5-888b-c8e4376d4caf.jpg?v=1718690173&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/2_0e1da3c6-5420-474e-ac17-d7b012b4d369.jpg?v=1718690173&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/03_7c10780e-e8a8-4683-a5e9-1274f930b849.jpg?v=1718690174&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/04-_-3.jpg?v=1718690174&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/08_efe76c1b-6564-4f32-9065-83f475ca15eb.jpg?v=1718690174&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/A_06_8e991c7e-953f-486d-9f0c-e12a22a7d995.jpg?v=1718690559&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/A_05-1_298f5b51-4429-4570-98e9-1c2f7181fcc6.jpg?v=1718690559&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/A_01_fc2c4087-ec7b-40bf-8ebf-5bb37681d58a.jpg?v=1718690559&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/A_03-04-2_02_164127fd-ab30-4264-bd17-f7fc7d12cacb.jpg?v=1718690559&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/A_02_ee54f461-a0e8-4029-a602-8d818733938f.jpg?v=1718690559&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/A_05-4.jpg?v=1718690559&width=1445)
![10000W 48Vdc COMPLETE OFF GRID SOLAR PANEL KIT 120V/240Vac LITHIUM BATTERY 24 X 410W MONO SOLAR PANELS](http://www.eco-worthy.com/cdn/shop/files/01-_-2_602aa435-a093-4937-aef9-536678c25089.jpg?v=1718691098&width=1445)

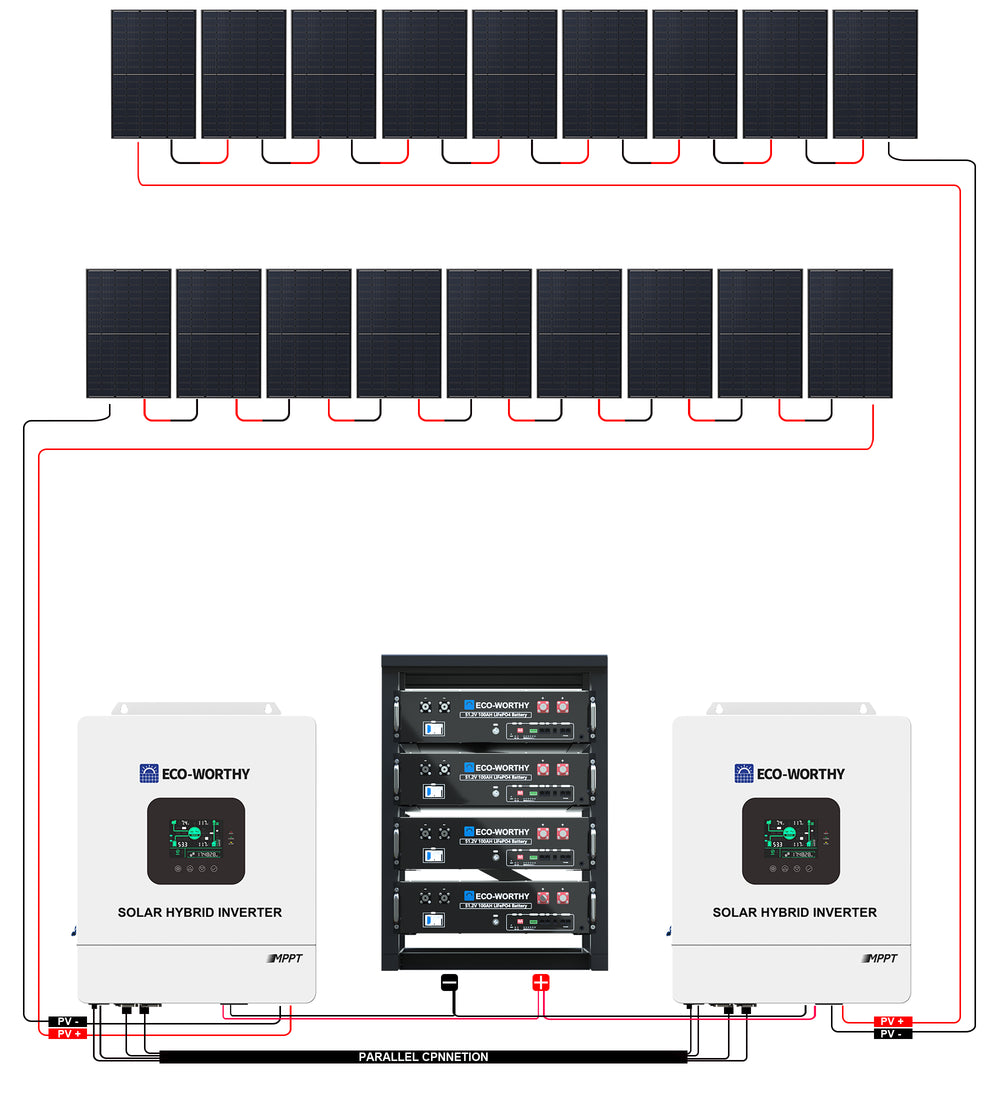

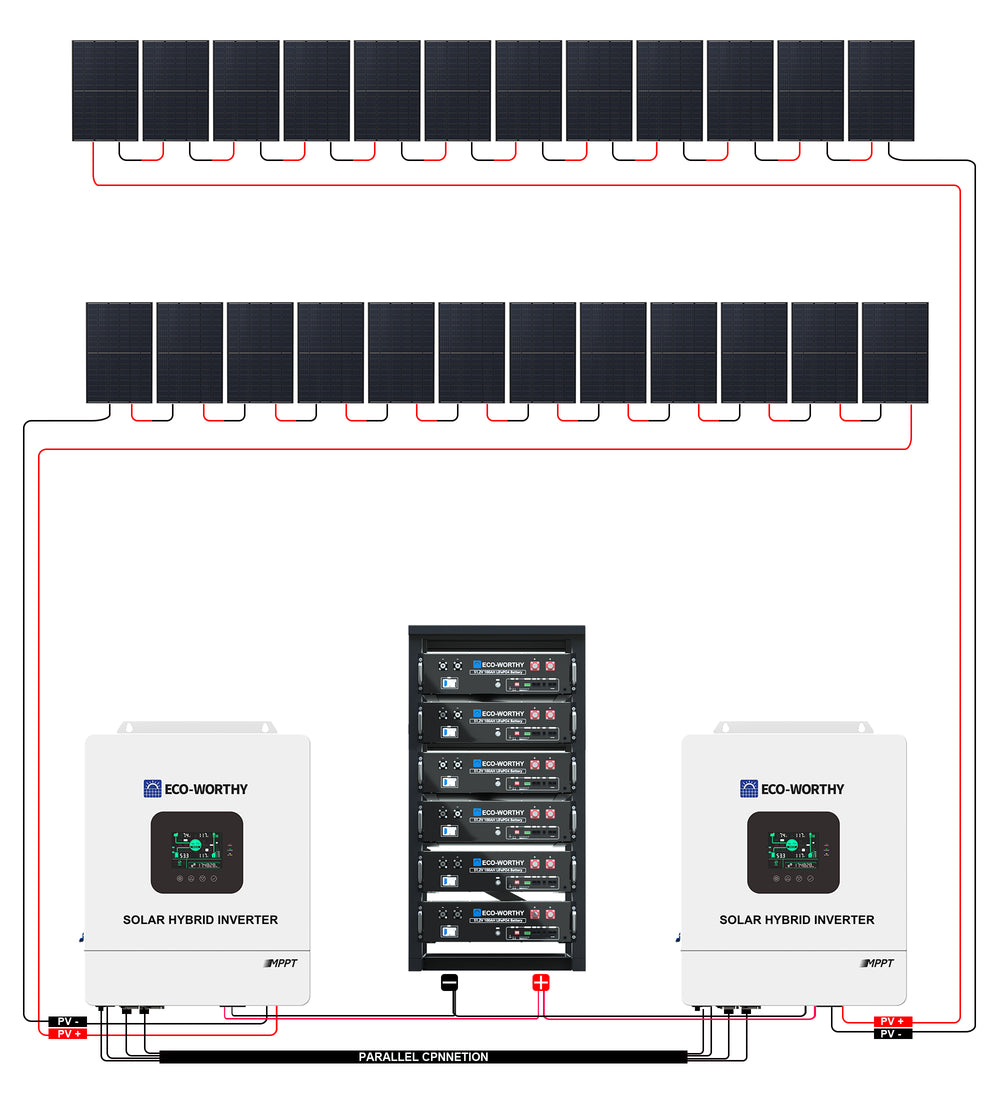

5000W 48V Solar Hybrid Inverter Charger supports up to 6 units (30kw Max.) in parallel. It's capable of single-phase or split-phase parallel. that means, it can output 110V and 220V at the same time.
[410W Mono Solar Panel] The solar cells with 21% conversion efficiency and 10BB bus bar are selected, will not waste any energy. Anti PID process and coated tempered glass bring longer lifespan. The solar panels will be shipped on a pallet.
ECO-WORTHY 12V 280Ah LiFePO4 Lithium Iron Phosphate Battery contains 6000+ deep cycles, each lithium battery can run for more than 15 years, which is 3 times longer cycles than other LiFePO4 batteries on the market.
ECO-WORTHY 10000W 48V MPPT Solar Kit can be used for several different purposes, including homes, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@eco-worthy.com.
![](http://www.eco-worthy.com/cdn/shop/files/A_01_fc2c4087-ec7b-40bf-8ebf-5bb37681d58a.jpg?v=1718690559)
![](http://www.eco-worthy.com/cdn/shop/files/A_02_ee54f461-a0e8-4029-a602-8d818733938f.jpg?v=1718690559)
![](http://www.eco-worthy.com/cdn/shop/files/A_03-04-2_02_164127fd-ab30-4264-bd17-f7fc7d12cacb.jpg?v=1718690559)
![](http://www.eco-worthy.com/cdn/shop/files/A_05-4.jpg?v=1718690559)
![](http://www.eco-worthy.com/cdn/shop/files/A_05-1_298f5b51-4429-4570-98e9-1c2f7181fcc6.jpg?v=1718690559)
![](http://www.eco-worthy.com/cdn/shop/files/A_06_8e991c7e-953f-486d-9f0c-e12a22a7d995.jpg?v=1718690559)

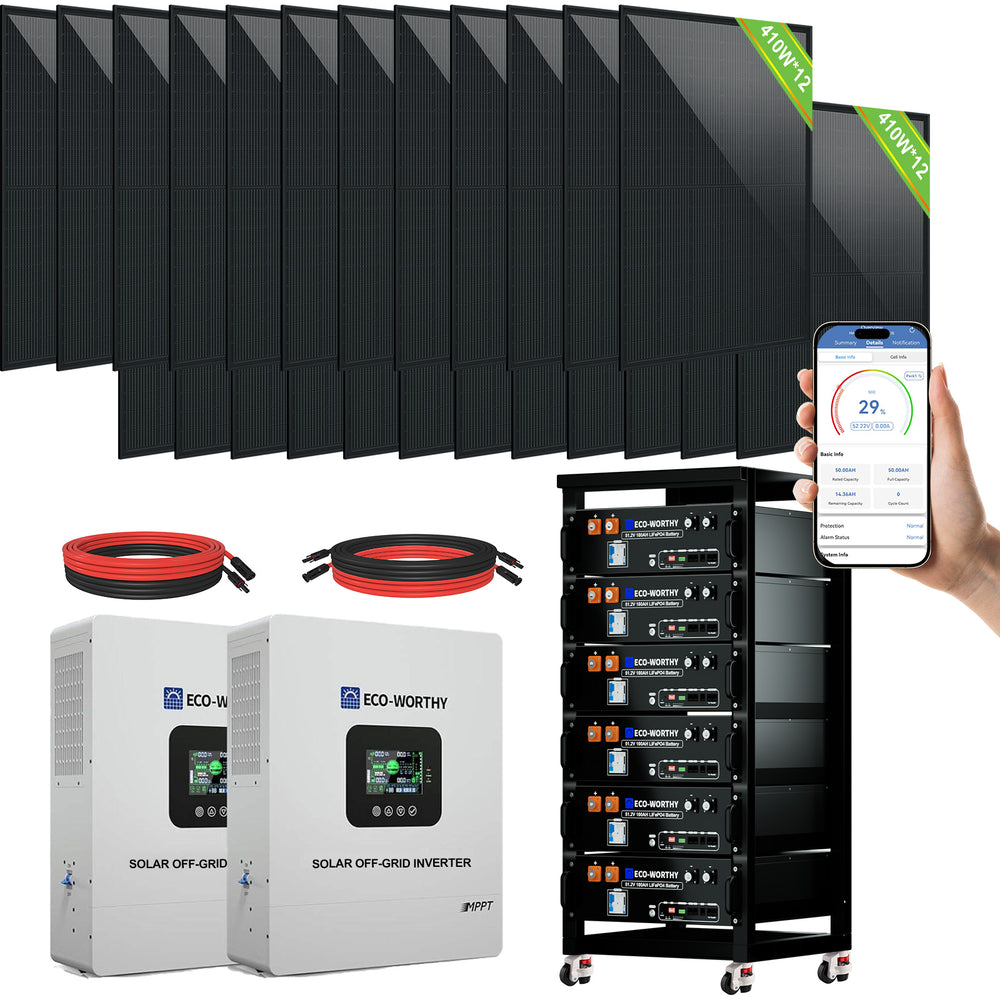

Package Includes
28.67kWh Lithium Battery Bank
24x 410W Mono Solar Panel
2x 5000W 48V Solar Hybrid Inverter Charger
2x 5M 8AWG Extension Cable with MC4
4x 5M 12AWG Solar Cable with MC4
2x Y MC4 Connector
52x Z Mounting Bracket
8x 280Ah 12V Stackable LiFePO4 Lithium Battery
5x 2AWG Battery Interconnect Cable
43kWh Lithium Battery Bank
24x 410W Mono Solar Panel
1x 5000W 48V Solar Hybrid Inverter Charger
2x 5M 8AWG Extension Cable with MC4
4x 5M 12AWG Solar Cable with MC4
2x Y MC4 Connector
52x Z Mounting Bracket
12x 280Ah 12V Stackable LiFePO4 Lithium Battery
8x 2AWG Battery Interconnect Cable

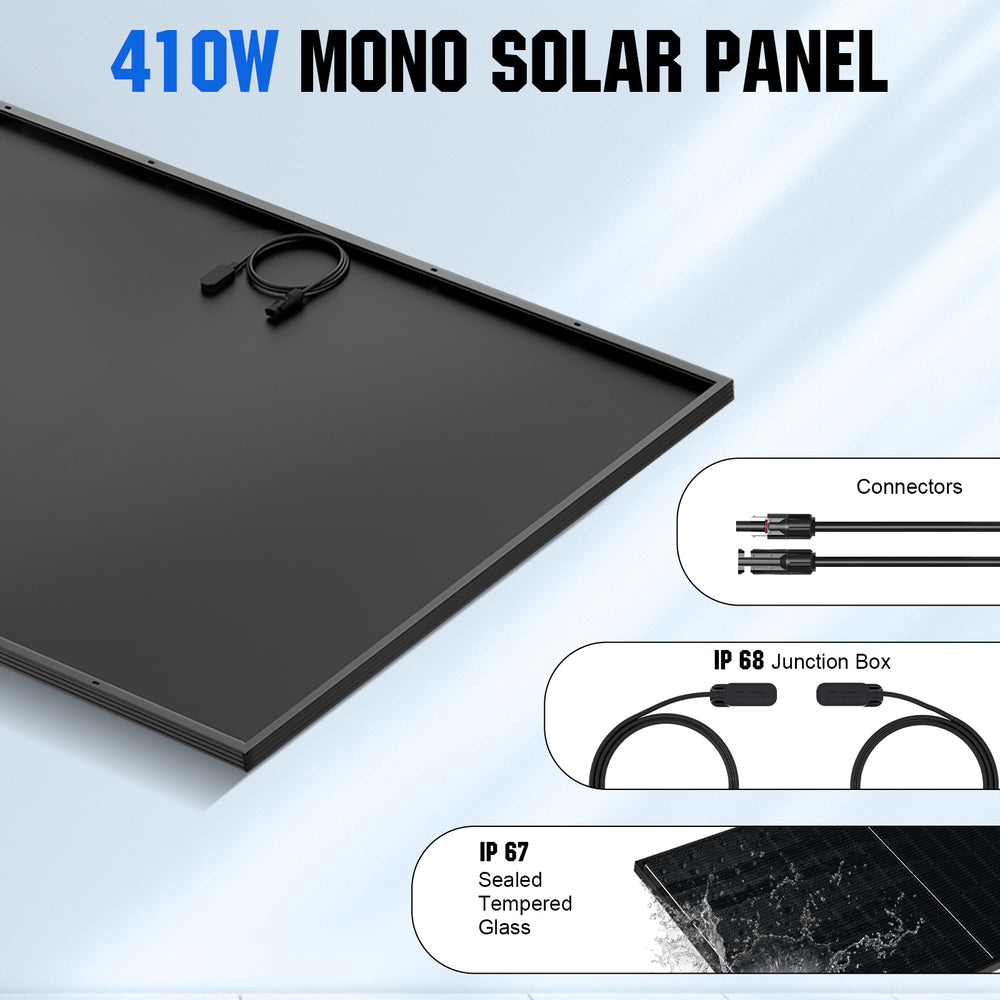

410W Monocrystalline Solar Panel
Rated Power: 410W | Solar Cell: Mono PERC |
Maximum/Peak Voltage(Vmp): 31.30V | Open Circuit Voltage(Voc): 37.50V |
Short circuit current: 13.84A | Maximum current: 13.10A |
Output Tolerance: ±3% | Temperate coefficient of Isc: 0.05%/℃ |
Temperate coefficient of Voc: -0.29%/℃ | Temperature range: -40℃~ +85℃ |
Frame: Aluminum alloy frame | Weight: 20.5 kg |
Size: 1724x1134x30 mm(With Frame) |
5000W 48V Solar Hybrid Inverter Charger
AC Input Mode | |
Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
Efficiency: >95% | AC Reverse Protection: Available |
Max Bypass Overload Current: 40A | |
Invert Mode | |
Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 5000W |
Rated Output Voltage: 120VAC | Peak Power: 10000W |
Bypass Breaker: 63A | Rated Battery Input Voltage: 48V |
Min Starting Voltage: 44V | Power Saving Mode: Load ≤25W |
AC Charging Mode | |
Battery Type: Lead acid or lithium battery | Max Charge Current: 60A |
Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
PV Charging Mode | |
Max Input Power: 5000W | PV Charging Current Range:0-80A(can be set) |
Max PV Open Circuit Voltage: 500VDC | PV Operating Voltage Range: 60-145VDC |
MPPT Voltage Range: 120-450VDC | Battery Voltage Range: 40-60VDC |
Max Output Power: 5000W | Charging Short Circuit Protection: Blown fuse |
280Ah LiFePO4 Lithium Battery
Battery Capacity: 280Ah | Battery Power: 3584Wh |
Battery Voltage: 12.8V | Maximum Charging Current: 250A |
Maximum Discharging Current: 250A | Max Charge Voltage: 14.5V |
Discharge Cut-Off Voltage: 10V | Operating Temperature: -4°F to 140°F |
Cycle Life: ≥6000 at 50% DoD (depth of discharge) | Size: 20.98*9.48*8.81inch |
Weight: 63.93lbs |
16.4 feet 12AWG Cables
Cable Type: Connecting Solar Panels to Charge Controller | Rating Voltage: 600/1000V |
Length: 5 meters(16 ft) | Conductor: Tinned copper wire |
AWG: 11 | Normal Cross Sectional Area of the Conductor (mm2): 4 |
Waterproof: IP 65 Protection | Temperature: -40°F to +185°F |
Connector: MC4 | Weight: 0.742KG |
Z Mounting Brackets
4 pieces of Z shape solar panel brackets | 8 pieces of stainless steel nuts and cap bolts |
Y Branch Cable MC4 Connectors
Compatible with MC4 solar connector. | Easy installation for 2 solar panels connected in parallel. |
