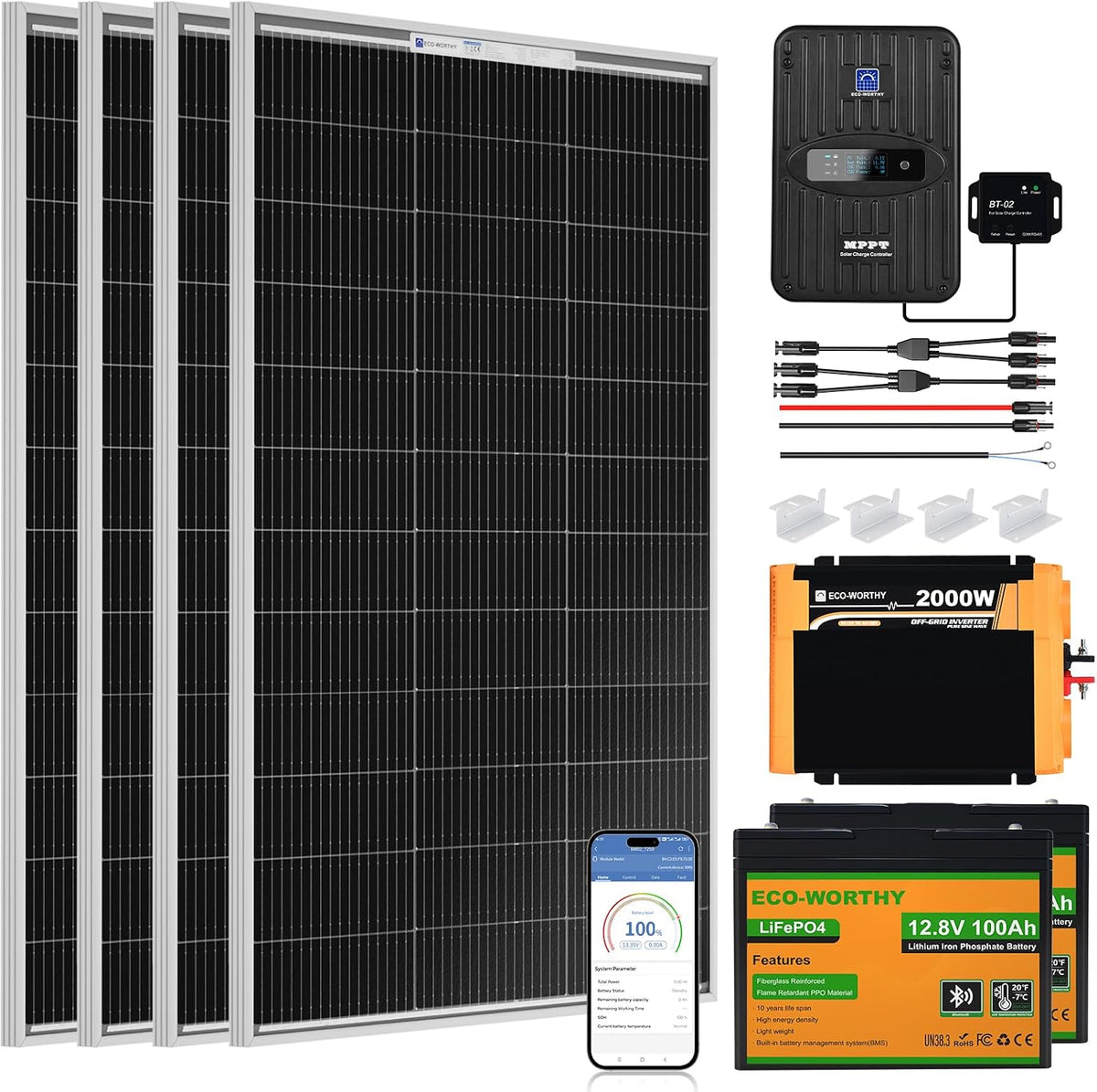

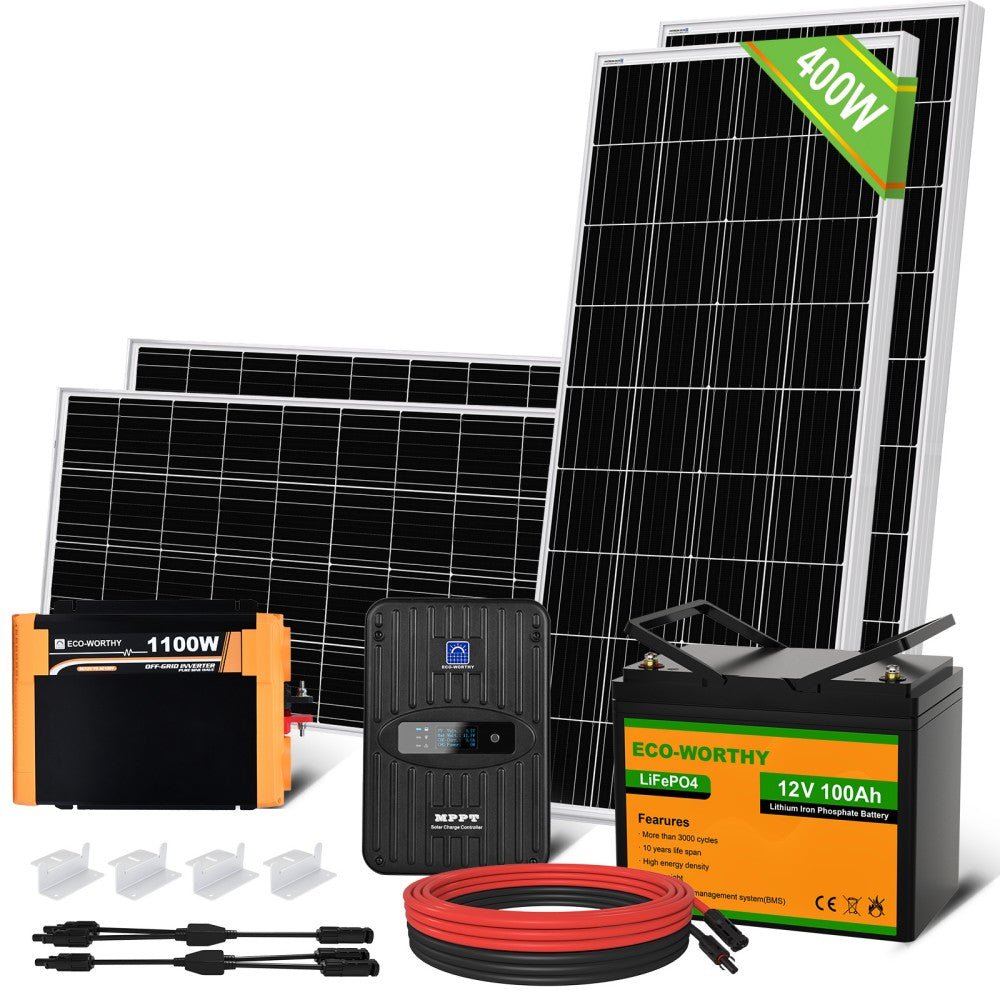

400W 12V (4x100W) Complete MPPT Off Grid Solar Kit

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 400W 12V expandable Solar Kit is an ideal choice.
ECO-WORTHY 100 Watt 12V Mono solar panel is backed by 25-year linear power guarantee.
ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
40A MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, ensures maximum power point solar charging that gets more energy to your battery bank.
1100W Pure Sine Wave Inverter provides high-quality AC power equivalent to grid power to protect your household appliances and electronic equipment, especially suitable for sensitive electrical appliances.
ECO-WORTHY 400W 12V Solar Kit can be used for several different purposes, including cottages, weekends, cabins, boats, RVs, Campers, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@eco-worthy.com.

Package Includes
4x 100W Mono Solar Panel
1x 40A MPPT Solar Controller
1x 5M 12AWG Extension Cable with MC4
3x Y MC4 Connector
4x Z Mounting Bracket
1x 1.5M Tray Cable
Inverter & Battery Options-
1.1kW Inverter & 1.2kWh Lithium Battery (optional)
with
1x 1100W 12V-110V Pure Sine Wave Inverter
1x 100Ah 12V LiFePO4 Lithium Battery
2kW Inverter & 2.4kWh Lithium Battery (optional)
with
1x 2000W 12V-110V Pure Sine Wave Inverter
2x 100Ah 12V LiFePO4 Lithium Battery

100W Monocrystalline Solar Panel

Rated Power: 100W	Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 20.2V	Open Circuit Voltage(Voc): 24.5V
Short circuit current: 5.20A	Maximum current: 4.95A
Output Tolerance: ±3%	Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃	Temperature range:－40℃～ +85℃
Frame: Aluminum alloy frame	Length of extension cable: 90cm（2.95ft）
Size of extension cable: 4mm²（11AWG）/MC4 Connector	Weight: 11.46 lbs(5.20 kg)
Size: 1010mm*460mm*35mm

40A MPPT Solar Charge Controller

Battery voltage：12V/24V	Max Solar Input Power：560/1120W
Charging mode：MPPT	Rated Load Current：20A
Charge Efficiency (Peak)：97%	Self-Consumption：1~2W
Battey Type：LiFePO4,AGM,Sealed,Gel,Flooded	Size：220*148*64mm/8.7*5.8*2.5inch
Max Charge current：40A	Weight：1.5KG
Max.PV Open-Circuit Voltage：<100V

1100W 12V Off Grid Inverter

Output Continuous Watts(W): 1100W+18W USB	Surge Capacity (PeakPower): 2200W
Rated Input DC (V,A): 12V Battery, 100A	Input Voltage Range: 10.5-16Vdc±0.3V
Rated Frequency (Hz): 60Hz±1	Rated Output AC (V,A): 115Vac±10%, 9.5A
Rated Output USB (V,A): 2*QC3.0 USB Ports (5V/3A,9V/2A,18W max)	No Load Current: <1A
Optimum Efficiency: 85% min	Fuse (A): 30A*4
FuseType: Internal Blade	Output Wave Form: Pure Sine Wave
Touch Temperature: 65℃(149℉)max	Operating Temperature: -20℃~40℃ (4℉~104℉)
Operating/Storage Humidity RH: 5~95%	Cooling System: Thermo Fan
THD: <4.5%	Dimensions (L*W*H): 13.5*9.8*4.1 in
Assembled Weight (kg): 8.05 lbs

100Ah LiFePO4 Lithium Battery

Battery Capacity: 100Ah	Battery Power: 1200Wh
Battery Voltage: 12.8V	Maximum Charge/ Discharge Current: 80A/100A
Charge Temperature Range: 0-55℃	Disharge Temperature Range:﹣20－55℃
Maximum Charge Voltage: 14.5V	Discharge Cut-Off Voltage: 10V
Screw size: M8	Battery Size: 260*168*209mm（10.2*6.6*8.2inch）
Battery Weight: 9.55kg/21 lbs

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller	Rating Voltage: 600/1000V
Length: 5 meters（16 ft）	Conductor: Tinned copper wire
AWG: 11	Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection	Temperature: -40°F to +185°F
Connector: MC4	Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets

8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors

Compatible with MC4 solar connector.

Easy installation for 2 solar panels connected in parallel.
